1/3
Image similar
binder 77 0629 0000 50704-0200-20 Bullet connector (pre-fab) Plug, straight Total number of pins: 4 Series (round connec
EAN:
Part number:
Item no:
Product type
Bullet connector (pre-fab)
Connector type
Plug, straight
Total no. of pins
4
Connection
Cable + connector
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
77 0629 0000 50704-0200 Series 813

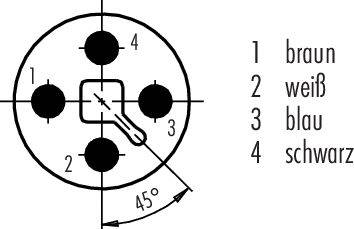

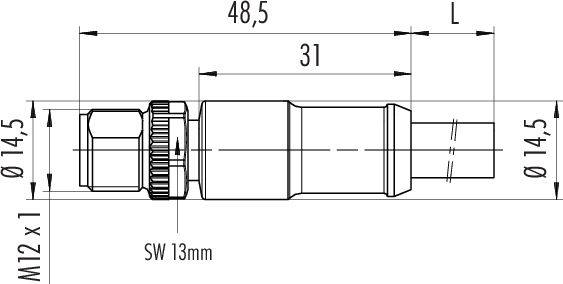

- M12-T cable connector
- Number of pins: 4
- unshielded
- Moulded on the cable
- IP68
- PUR
- flame-resistant black
- 4 x 1.50 mm²
Technical specifications
- EMC-suitability: Unshielded
- Continuous resistance ≤ 5 mΩ
- Insulation material group II.
- Over voltage category III
- Pollution level 3
- Material contact body: PUR
- Insulation wire PP
- Cable cross-section 4 x 1.50 mm²
- Travel speed ≤ 300 m/min.
- Bending radius for cable moving: ≥ 10 x Ø
- ≥ 7.5 x Ø flexible cable bend radius
- Halogen-free: Yes
- Mounting type: Cable mounting
- Type
77 0629 0000 50704-0200
- Product type
Bullet connector (pre-fab)
- Connector type
Plug, straight
- Total no. of pins
4
- Connection
Cable + connector
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
80 °C
- Nominal current
12 A
- Min. temperature
-50 °C
- Nominal current - rounded value
12 A
- Seal
screws
- Nominal voltage
63 V
- Contact material
CuZn
- Case material
PUR
AWG 16
- Manufacturer part #
77 0629 0000 50704-0200-20
- Number of pins
4
- max. cross section
1.50 mm²
- Cross-section range
1.50 mm² (max)
- RoHS-compliant
Yes
IP68
- Series
813
Documents & Downloads
Datasheet
Datasheet 3215358 binder 77 0629 0000 50704-0200-20 Bullet connector (pre-fab) Plug, straight Total number of pins: 4 Series (round connec
User & Safety Instructions
User & Safety Instructions 3215358 binder 77 0629 0000 50704-0200-20 Bullet connector (pre-fab) Plug, straight Total number of pins: 4 Series (round connec
Description
Power connectors are used to supply high voltage AC motors, drives and motor switches over long periods of time, but also for low voltage applications such as fieldbus Ethernet components and network devices. These are mainly M12, M18 and 7/8 inch round connectors, which can be configured by the customer according to the respective application area. The M12 plug connectors with K and S coding can be used up to a rated voltage of 630V AC.
Properties:
• 9 product series
• Various locking systems, including M12, M18 and 7/8\"
• Coding, including M12 - S, -K, -T, -L and -US
• Protection class of IP20 to IP69K
• 2 to 8 contacts, including 2+PE, 3+PE and 4+PE
• Shielded and shielded
• PUR and PVC casing
• Cable lengths from 0.5 m to 10 m.
This text is machine translated.
Properties:
• 9 product series
• Various locking systems, including M12, M18 and 7/8\"
• Coding, including M12 - S, -K, -T, -L and -US
• Protection class of IP20 to IP69K
• 2 to 8 contacts, including 2+PE, 3+PE and 4+PE
• Shielded and shielded
• PUR and PVC casing
• Cable lengths from 0.5 m to 10 m.
This text is machine translated.
