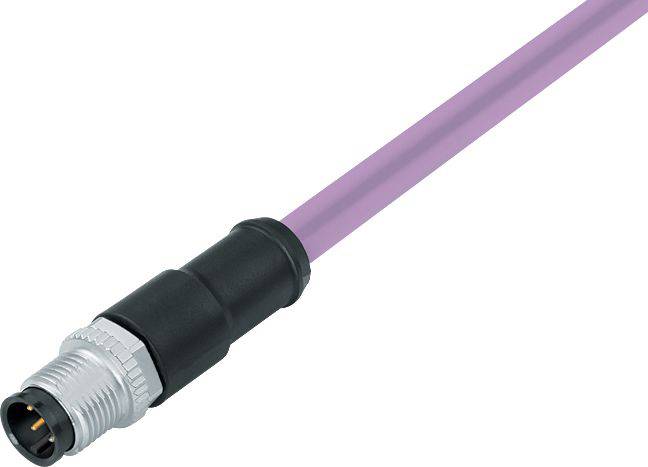

binder 77 2529 0000 50705-1000-20 Sensor/actuator connector (pre-fab) M12 Plug, straight 10 m No. of pins (RJ): 5 1 pc(s
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector type
Plug, straight
Connector standard
Sensor connector
Connection side A
M12
No. of pins
5
Datasheet (PDF)
Highlights & Details
77 2529 0000 50705-1000 Series 763
- M12-A cable plug
- Number of pins: 5
- Shielded
- Moulded on the cable
- IP67
- UL listed
- CAN bus:
- PUR violet

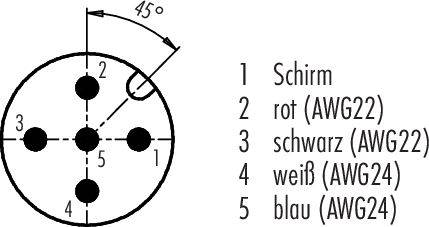

- 1 x 2 x AWG22 + 1 x 2 x AWG24
Technical specifications
- EMC-suitability: Shielded
- Insulation resistance: ≥ 10¹⁰ Ω
- Constant resistance: 3 mΩ
- Insulation material group II.
- Overvoltage category II
- Pollution level 3
- Material contact body: PUR
- Material locking: CuZn (brass nickel-plated)
- Insulation flex: Polyolefins and skin-foamed PE
- Cable type CAN bus
- Cable cross-section 1 x 2 x AWG22 + 1 x 2 x AWG24
- Bending radius for cable moving 10 x Ø
- Bending radius: Fixed 5 x Ø
- Halogen-free: Yes
- Mounting type: Cable mounting
- Type
77 2529 0000 50705-1000
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Plug, straight
- Connector standard
Sensor connector
- Connection side A
M12
- No. of pins
5
- Cable length
10 m
- Jacket material
PUR
- Nominal voltage
60 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Cable + connector
- Factory colour
Violet
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
- Contact material
CuZn
- Contact surface
Au (gold)
IP67
- Features
Shielded
- Min. temperature
-40 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
77 2529 0000 50705-1000-20
- Content
1 pc(s)

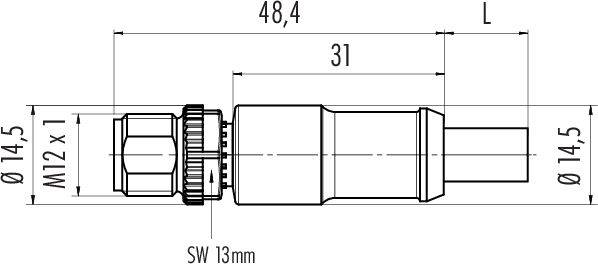

- Cable Ø
7.2 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3216899 binder 77 2529 0000 50705-1000-20 Sensor/actuator connector (pre-fab) M12 Plug, straight 10 m No. of pins (RJ): 5 1 pc(s
Description
These connector systems offer the perfect solution for sensors and actuators in many industrial sectors. We offer connectors from IP40 to IP69K, many of them with UL, VDE and Ecolab approval, as well as FDA-compliant models. Users can order round connectors with 2 to 12 contacts and various connection options, including solder, crimp, dip solder, cable and stranded wire connections. Connectors with M5, M8 and M12 screw locking are available in straight and angled design as well as flange versions. Apart from Duo-plugs and double distributors a large selection of connecting cables is also available.
Properties:
• 2 to 12 pole
• IP40 to IP69K
• Screw lock
• Simple installation
• UL, VDE and Ecolab approval
• Connecting cables
• FDA compliant versions
