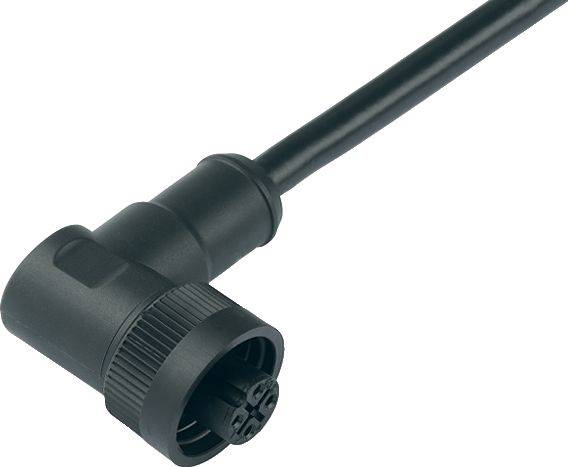

binder 79 0234 20 04-20 Bullet connector (pre-fab) Socket, right angle Total number of pins: 4 + PE Series (round connec
EAN:
Part number:
Item no:
Product type
Bullet connector (pre-fab)
Connector type
Socket, right angle
Total no. of pins
4 + PE
Connection
Cable + connector
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
79 0234 20 04 Series 692
- RD24 angle socket
- Number of pins 3+PE
- unshielded
- Moulded on the cable
- IP67
- PVC black
- 4 x 1.50 mm²

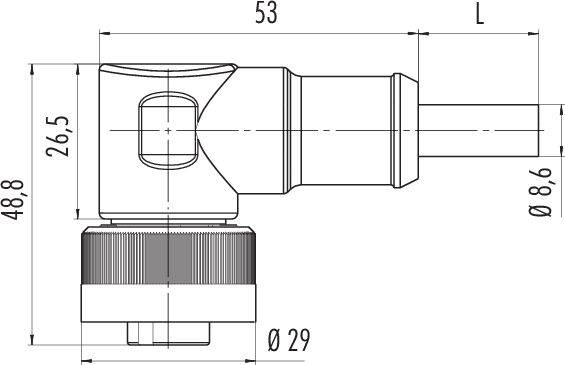

Technical specifications
- EMC-suitability: Unshielded
- Insulation resistance: ≥ 10¹⁰ Ω
- Continuous resistance ≤ 5 mΩ
- Insulation class III
- Over voltage category III
- Pollution level 3
- Material of contact body PA12
- Insulation PVC
- Cable cross-section 4 x 1.50 mm²
- Bending radius for cable moving: ≥ 15 x Ø
- ≥ 7.5 x Ø flexible cable bend radius
- Halogen-free: No.
- Mounting type: Cable mounting
- Type
79 0234 20 04
- Product type
Bullet connector (pre-fab)
- Connector type
Socket, right angle
- Total no. of pins
4 + PE
- Connection
Cable + connector
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
80 °C
- Nominal current
16 A
- Min. temperature
-20 °C
- Nominal current - rounded value
16 A
- Seal
screws
- Leading contact (PE)
Yes
- Nominal voltage
400 V
- Contact material
CuZn
AWG 16
- Manufacturer part #
79 0234 20 04-20
- Number of pins
4
- max. cross section
1.50 mm²
- Cross-section range
1.50 mm² (max)
- RoHS-compliant
Yes
IP67
- Series
692
Documents & Downloads
Datasheet
Datasheet 3215424 binder 79 0234 20 04-20 Bullet connector (pre-fab) Socket, right angle Total number of pins: 4 + PE Series (round connec
User & Safety Instructions
User & Safety Instructions 3215424 binder 79 0234 20 04-20 Bullet connector (pre-fab) Socket, right angle Total number of pins: 4 + PE Series (round connec
Description
Our range of power connectors is suitable for virtually any low and high voltage application, from safety and CCTV systems to fieldbus Ethernet components to AC and DC motors. Some models meet the needs of extreme environments, both indoors and outdoors. A variety of connection options are available, as locking systems bayonet, M23, M25 and RD24 locking are possible. Some models are ESTI+, UL and VDE approved. To extend the range of applications, users can choose between straight and right angle cable and flange versions.
Properties:
• 3 to 24 contacts, also with +PE
• Protection class of IP40 to IP69K
• UL, VDE and ESTI+ approval
• Cable and flange formats
• Solder, screw, crimp and molded cable
• Shieldable versions
This text is machine translated.
