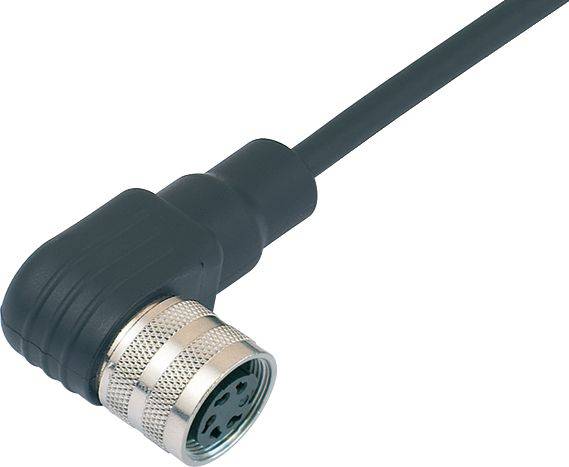

binder 79 6318 200 06-20 Bullet connector (pre-fab) Socket, right angle Total number of pins: 6 Series (round connectors
EAN:
Part number:
Item no:
Product type
Bullet connector (pre-fab)
Connector type
Socket, right angle
Total no. of pins
6
Connection
Cable + connector
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
79 6318 200 06 Series 425

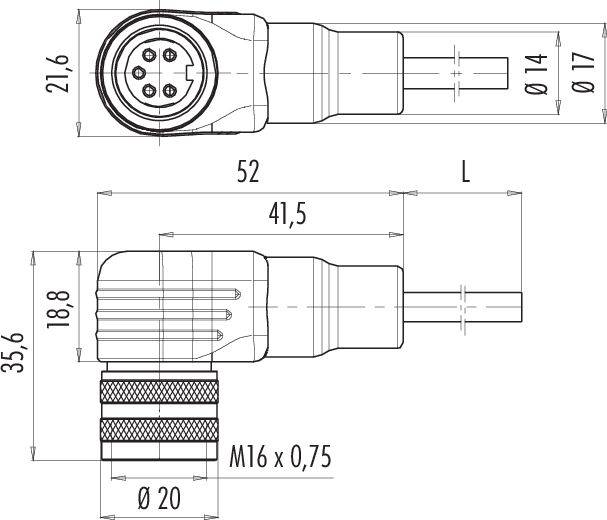

- M16 IP67 angled socket

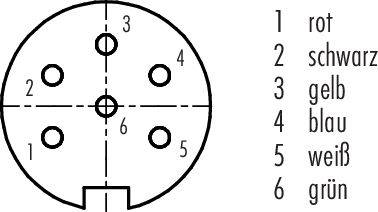

- Number of pins: 6 DIN
- Shielded
- Moulded on the cable
- IP67
- PUR black
- 6 x 0.25 mm²
Technical specifications
- EMC-suitability: Shielded
- Insulation resistance: ≥ 10¹⁰ Ω
- Constant resistance: 3 mΩ
- Insulation class III
- Overvoltage category I
- Pollution level 1
- Material contact body PBT (UL94 V-0)
- Insulation PVC
- Cable cross-section 6 x 0.25 mm²
- Halogen-free: No.
- Mounting type: Cable mounting
- Type
79 6318 200 06
- Product type
Bullet connector (pre-fab)
- Connector type
Socket, right angle
- Total no. of pins
6
- Connection
Cable + connector
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
70 °C
- Nominal current
3 A
- Min. temperature
-20 °C
- Nominal current - rounded value
3 A
- Seal
screws
- Nominal voltage
250 V
- Contact material
CuSn
- Case material
PUR
AWG 24
- Manufacturer part #
79 6318 200 06-20
- Number of pins
6
- max. cross section
0.25 mm²
- Cross-section range
0.25 mm² (max)
- RoHS-compliant
Yes
IP67
- Series
425
Documents & Downloads
Datasheet
Datasheet 3215512 binder 79 6318 200 06-20 Bullet connector (pre-fab) Socket, right angle Total number of pins: 6 Series (round connectors
User & Safety Instructions
User & Safety Instructions 3215512 binder 79 6318 200 06-20 Bullet connector (pre-fab) Socket, right angle Total number of pins: 6 Series (round connectors
Description
These seven series miniature circular connectors are suitable for a wide range of applications, thanks to a wide range of locking systems, contact layouts, IP protection types and connectors. Customers can choose between push-pull, snap-in, bayonet and M16 locking. Depending on the series, connectors with 2 to 24 contacts are available in cable or flange versions. Connection types are crimp, dip solder, screw terminal and solder connections, stranded wire and molded cable. Like all Binder products, these miniature connectors are made of high quality materials for a long and reliable service life. Many are UL and VDE approved, some ASIG compliant.
Properties:
• Protection class IP40, IP67, IP67 shielded or IP68
• 2 to 24 pole
• Straight and angled cable versions
• Flange versions
• Gold-plated or silver-plated brass and bronze contacts
• 1000 mating cycles and more
• Several locking systems, including bayonet, snap-in and M16
