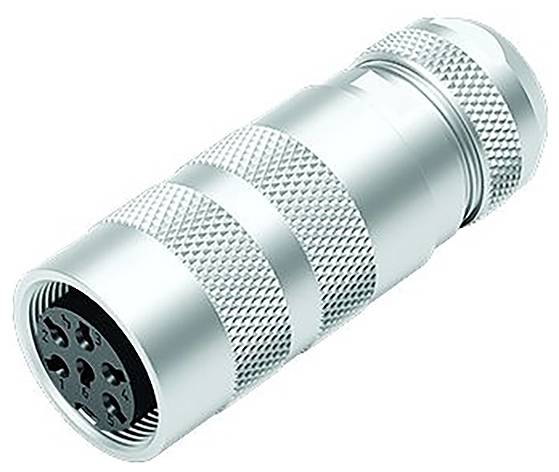

binder 99 5114 60 05 Junction box Total number of pins: 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Junction box
Total no. of pins
5
Connection
Soldering
Content
1 pc(s)
Nominal current - rounded value
6 A
Highlights & Details
M16 cable socket, number of poles: 5 (05-a), 4.1-7.8 mm, can be shielded, soldered, IP68, UL, short version
Our service for you
Technical specifications
- Series 423
- Number of pins: 05
- Connector design: Cable socket
- Variation description: M16 IP67, 423 series, miniature connector
- Approval 1 UL
- EMC-suitability: Shielded
- Connection cross-section (mm): Max. 0.75 mm²
- Terminal cross section (AWG) AWG 18
- Connection type: Soldering
- Connector lock: Screw
- Rated current (40 °C) 6.0 A.
- Insulation class III
- Overvoltage category II
- Pollution level: 2
- Rated voltage ( V ): 150 V.
- Protection class: IP68
- Material housing: CuZn (nickel-plated brass)
- Material contact body PBT
- Material (contact): CuSn (bronze)
- Material locking: CuZn (brass)
- Cable outlet 4.1 - 7.8 mm
- Safety features: The connector must not be loaded or disconnected. Non-observance as well as the improper use may lead to personal injury.
- The plug connectors were developed for use in system, control and electrical device construction. It is up to the user to check whether the connectors can be used in other applications.
- Connectors used in electric circuits with hazardous voltages should only be installed and used by, or under the supervision of, persons who are trained in electrical engineering, in compliance with the applicable regulations and standards.
- IP67 and IP68 connectors are not suitable for underwater use. When used outdoors, the connectors must be separately protected against corrosion.
- The plug connector is not suitable for mains voltages. Please pay attention to the degree of contamination and the over-voltage category.
- To lock the cable connector with the device connector, the threaded ring is tightened hand-tight (approx. 50 cNm).
- Type
99 5114 60 05
- Product type
Junction box
- Total no. of pins
5
- Connection
Soldering
- Content
1 pc(s)
- Nominal current
6 A
- Nominal current - rounded value
6 A
- Seal
screws
- Nominal voltage
150 V
- Contact material
CuSn (bronze)
- Cable Ø (max.)
7.8 mm
- Cable Ø up to
4.1 mm
- Case material
Brass nickel plated
- Manufacturer part #
99 5114 60 05
- Cable Ø range
4.1 - 7.8 mm
- Number of pins
5
- RoHS-compliant
Yes
IP68
- Crimp area AWG (max.)
18 awg
