BJZ C-211 7706 ESD PG box L-shape 2 m Banana jack, 10.3 mm stud and socket
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

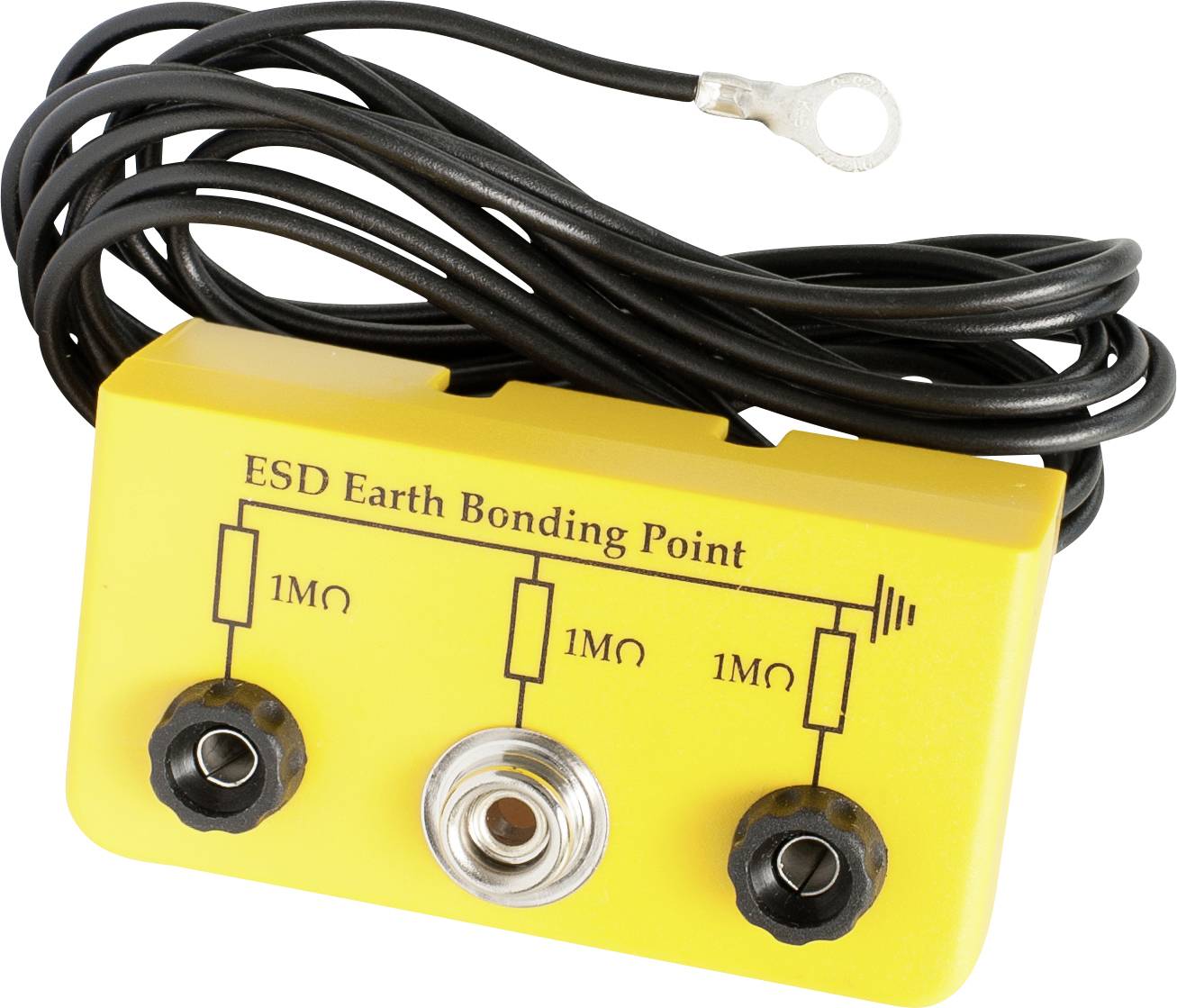

ESD earthing box, L-shape
- 2x banana plug socket 4 mm
- 1x pushbutton 10.3 mm
- Smooth cable 2.0 m
- With screw eye M5
- 1 MOhm resistor
Technical specifications
- Attachment/connection via M5 screw eyelet
- Earthing via earthing/earthing contact socket
- Product type
ESD PG box
- Type
C-211 7706
- Factory colour
Yellow
Black
- Type
L-shape
- Connection
Banana jack
10.3 mm stud and socket
- Cable length
2 m
- Material
Plastic
- Leak resistance
1 MΩ
- Protective resistor
1 MΩ
- Range of use
ESD
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3846349 BJZ C-211 7706 ESD PG box L-shape 2 m Banana jack, 10.3 mm stud and socket
User & Safety Instructions
User & Safety Instructions 3846349 BJZ C-211 7706 ESD PG box L-shape 2 m Banana jack, 10.3 mm stud and socket
Description
Practical ESD grounding box with banana plug sockets and push-button for a simple and inexpensive ESD grounding connection
This text is machine translated.
This text is machine translated.
Features
- 2 banana plug connectors
- 1 10.3 mm button
- Smooth cable 2.0 m with M5 ring screw connection
Scope of delivery
- 1x ESD grounding box with 2.0 m cable and M5 screw coupling
