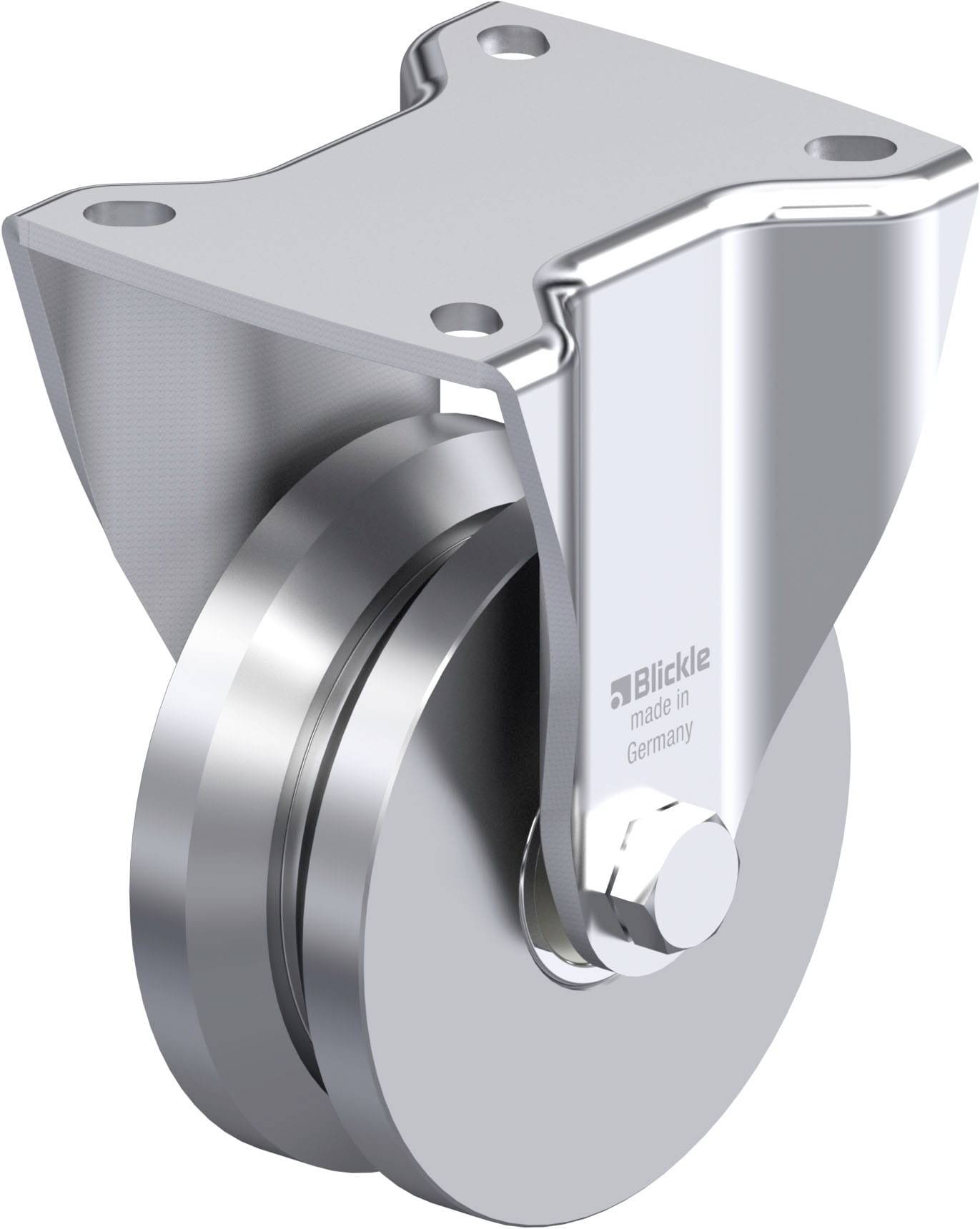

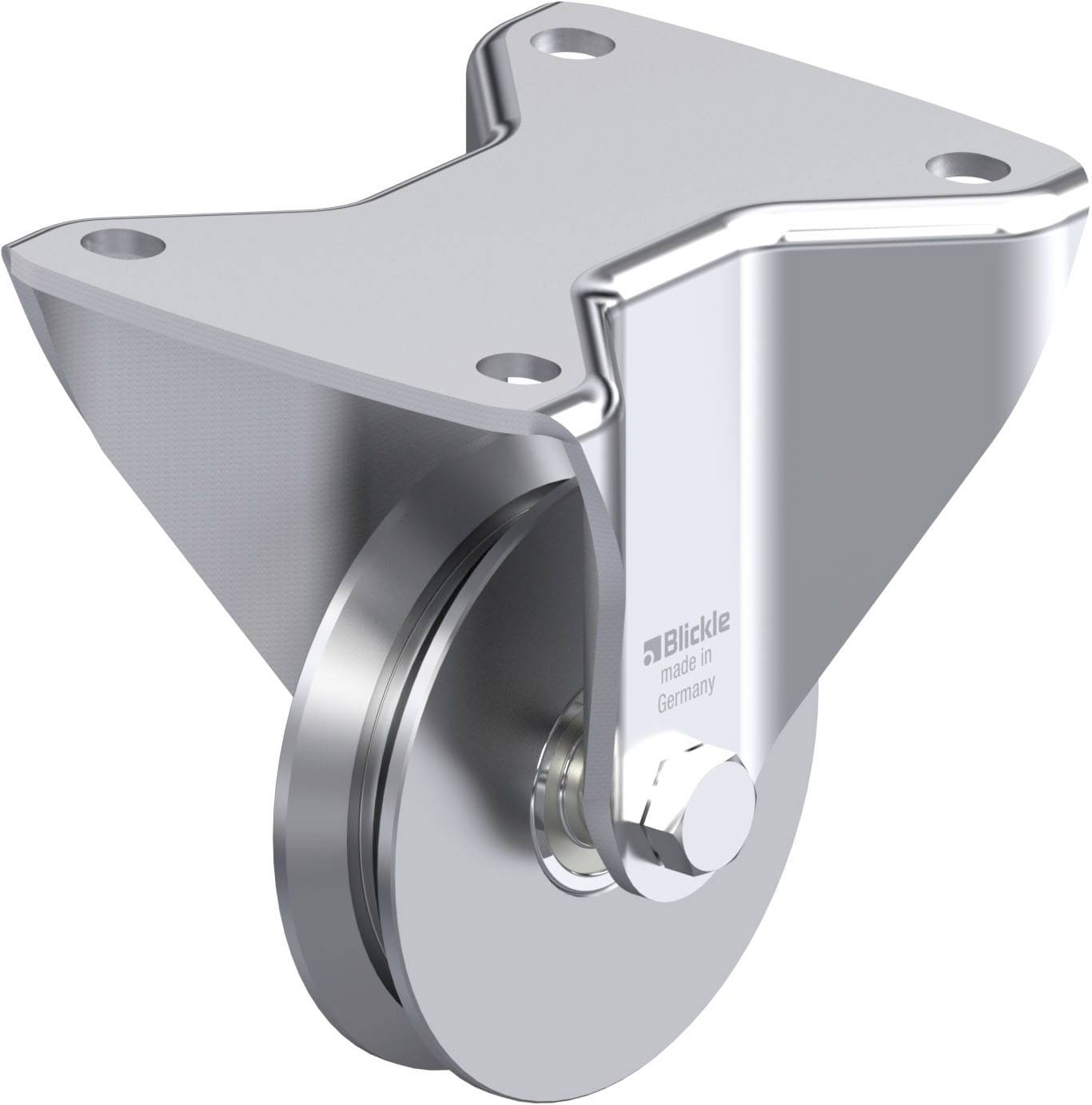

Blickle 331314 BH-DSPK 101K-1 Sheet metal fixed wheel Wheel diameter: 100 mm Load capacity (max.): 600 kg 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Load capacity at 4 km/h: 600 kg
- Wheel body material: Hardened steel
- Material run lining: Metal
- Colour run lining: Silver
- Temperature resistance up to 120 °C
- Temperature resistance min -20 oC
- Coating hardness 190–230 HB
- Without a trace: Yes
- Anti-static: No.
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Mounting type: Screw-on plate
- Associated wheel: DSPK 101K
- Product type
Sheet metal fixed wheel
- Wheel Ø
100 mm
- Load capacity (max.)
600 kg

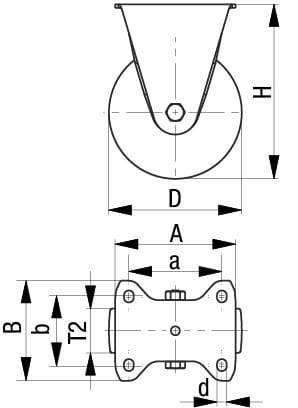

- Total height
140 mm
- Size
100 x 85 mm
- Wheel width
40 mm
- Bearing type
Ball bearing
- Material
Metal
- Factory colour
Silver
- Content
1 pc(s)
- Weight
2.71 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3050249 Blickle 331314 BH-DSPK 101K-1 Sheet metal fixed wheel Wheel diameter: 100 mm Load capacity (max.): 600 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3050249 Blickle 331314 BH-DSPK 101K-1 Sheet metal fixed wheel Wheel diameter: 100 mm Load capacity (max.): 600 kg 1 pc(s)
Description
Steel sheet-Bockrolle, heavy-duty design, with mounting plate,
Double steering wheel made of solid steel
Housing: Series BH
• Sheet steel, galvanized, blue passivated, Cr6-free
• Heavy fork and floor plate
Wheel: Series SPK
• Quenched steel, hardness 190–230 HB
Other properties:
• Chemical resistance to many aggressive media
• Temperature resistance: --20°C to +120 °C.
• For pressure-sensitive floors, observe surface pressure
• Wheels with a wide contact surface which allow for use outside the slide rails
