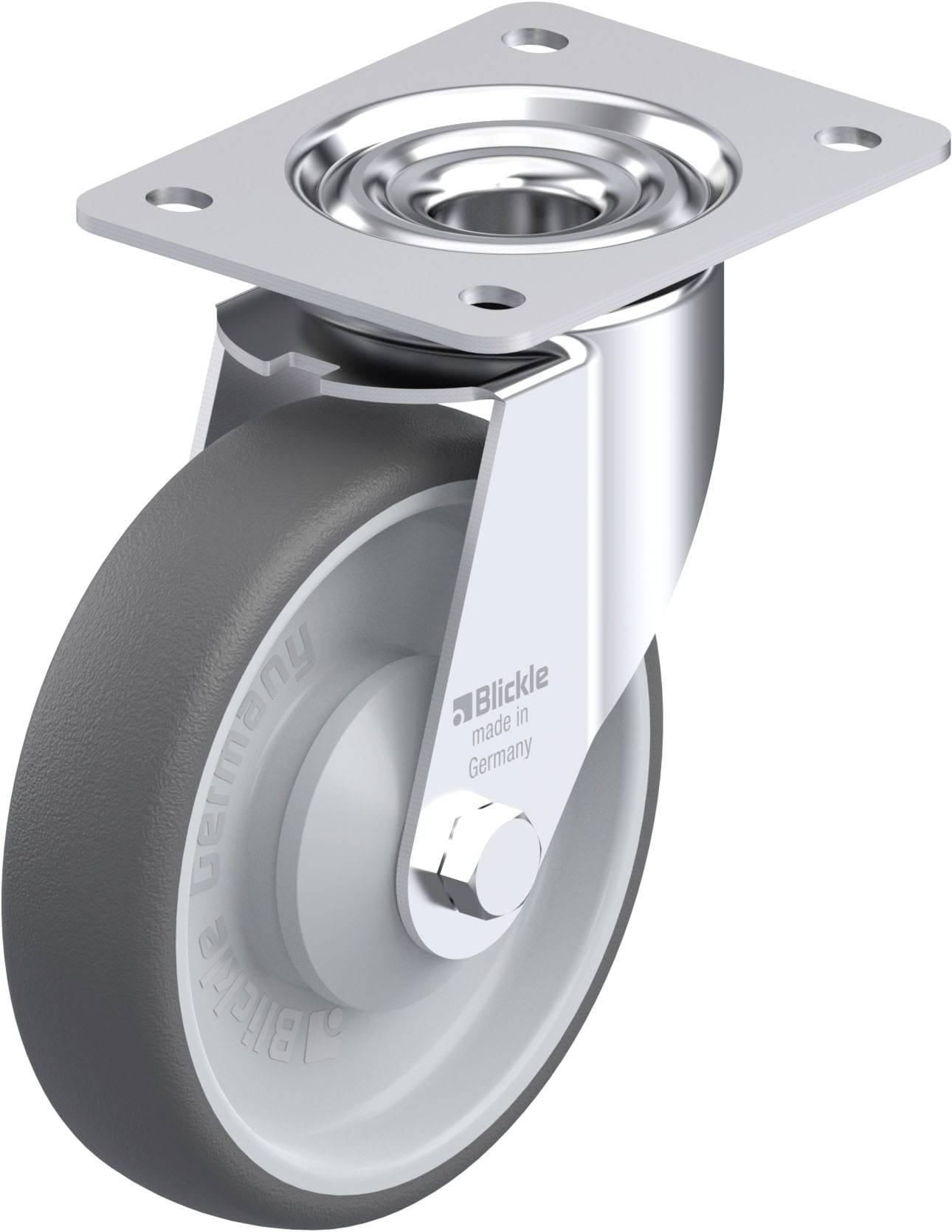

Blickle 846985 LE-PATH 160KA Sheet metal swivel wheel Wheel diameter: 160 mm Load capacity (max.): 300 kg 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Load capacity at 4 km/h: 300 kg
- Material wheel body: High-quality polyamide 6
- Material: Polyurethane lining
- Colour run lining: Dark gray
- Colour wheel body: Silver gray
- Temperature resistance up to 70 °C
- Temperature resistance min -20 oC
- Coating hardness 94 Shore A
- Without a trace: Yes
- Anti-static: No.
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Mounting type: Screw-on plate
- Related standard identifiers: LE-PATH 160KA-FI
- Associated wheel: PATH 160/12KA
- Accompanying fixed roller: B-PATH 160KA
- Product type
Sheet metal swivel wheel
- Wheel Ø
160 mm
- Load capacity (max.)
300 kg

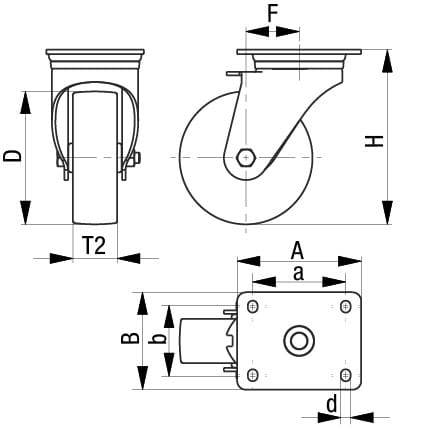

- Total height
195 mm
- Size
140 x 110 mm
- Wheel width
40 mm
- Bearing type
Ball bearing
- Material
Polyurethane
- Factory colour
Dark grey
- Content
1 pc(s)
- Weight
1.683 kg
Documents & Downloads
Datasheet
Datasheet 3051656 Blickle 846985 LE-PATH 160KA Sheet metal swivel wheel Wheel diameter: 160 mm Load capacity (max.): 300 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3051656 Blickle 846985 LE-PATH 160KA Sheet metal swivel wheel Wheel diameter: 160 mm Load capacity (max.): 300 kg 1 pc(s)
Description
Device swivel castor with mounting plate
Wheel with thermoplastic polyurethane wood plank, with polyamide wheel body, with thread protection made of plastic, small
Housing: Series LE
• Sheet steel, galvanized, blue passivated, Cr6-free

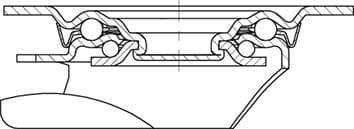

• Double ball bearing in rotating assembly
• Rotating assembly sealing
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
Wheel: Series PATH
• Tread: High-quality thermoplastic polyurethane (TPU), hardness 94 shore A, color dark gray, trackless, contact-free
• Wheel body: High-quality polyamide 6, break-proof, color silver gray
Other properties:
• With thread protection made of plastic, small
• Very high chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity at over +35 °C.
