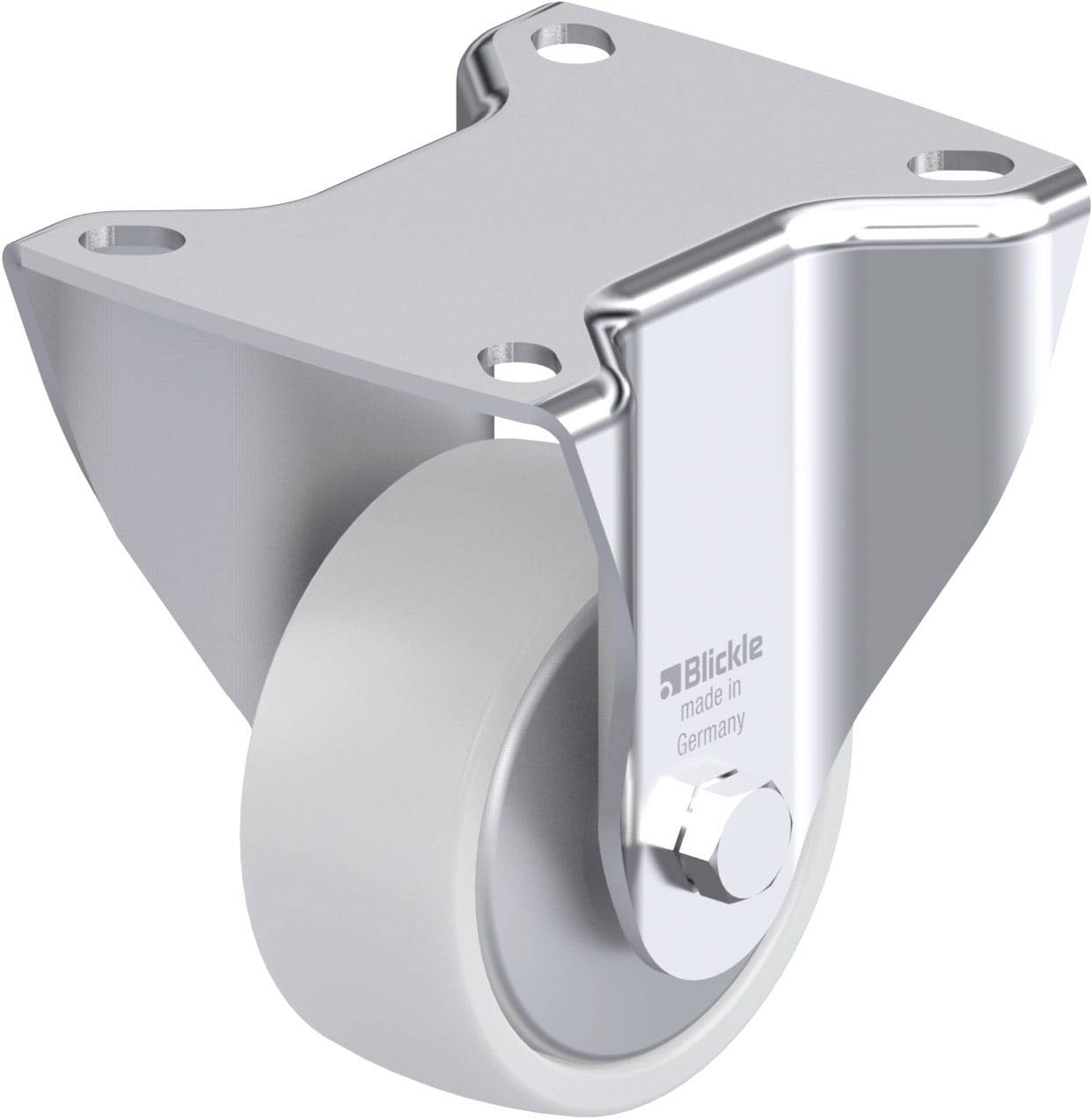

Blickle 852723 BK-PO 75XR-FA Sheet metal fixed wheel Wheel diameter: 75 mm Load capacity (max.): 200 kg 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Load capacity at 4 km/h: 200 kg
- Material wheel body: High-quality polyamide 6
- Material run lining: Plastic
- Colour: Carpet, natural-white
- Colour wheel body: Natural white
- Temperature resistance up to 80 °C
- Temperature resistance min -25 oC
- Coating hardness 70 shore D.
- Without a trace: Yes
- Anti-static: No.
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Mounting type: Screw-on plate
- Accompanying steering wheel: LK-PO 75xR-FA
- Associated wheel: PO 75/12XR
- Product type
Sheet metal fixed wheel
- Wheel Ø
75 mm
- Load capacity (max.)
200 kg
- Total height
108 mm
- Size
100 x 85 mm
- Wheel width
32 mm
- Bearing type
Roller bearing
- Material
Plastic
- Factory colour
Natural white
- Content
1 pc(s)
- Weight
0.521 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3050609 Blickle 852723 BK-PO 75XR-FA Sheet metal fixed wheel Wheel diameter: 75 mm Load capacity (max.): 200 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3050609 Blickle 852723 BK-PO 75XR-FA Sheet metal fixed wheel Wheel diameter: 75 mm Load capacity (max.): 200 kg 1 pc(s)
Description
Steel sheet fixed roller, heavy construction, with mounting plate,
Wheels made from polyamide, with steel thread protection
Housing: Series BK
• Strong sheet steel, galvanized galvanically, blue passivated, Cr6-free
Wheel: Series PO
• High-quality polyamide 6, unbreakable, hardness 70 shore D, color natural white
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -25 °C to +80 ° C, reduced load capacity at over +35 °C.
