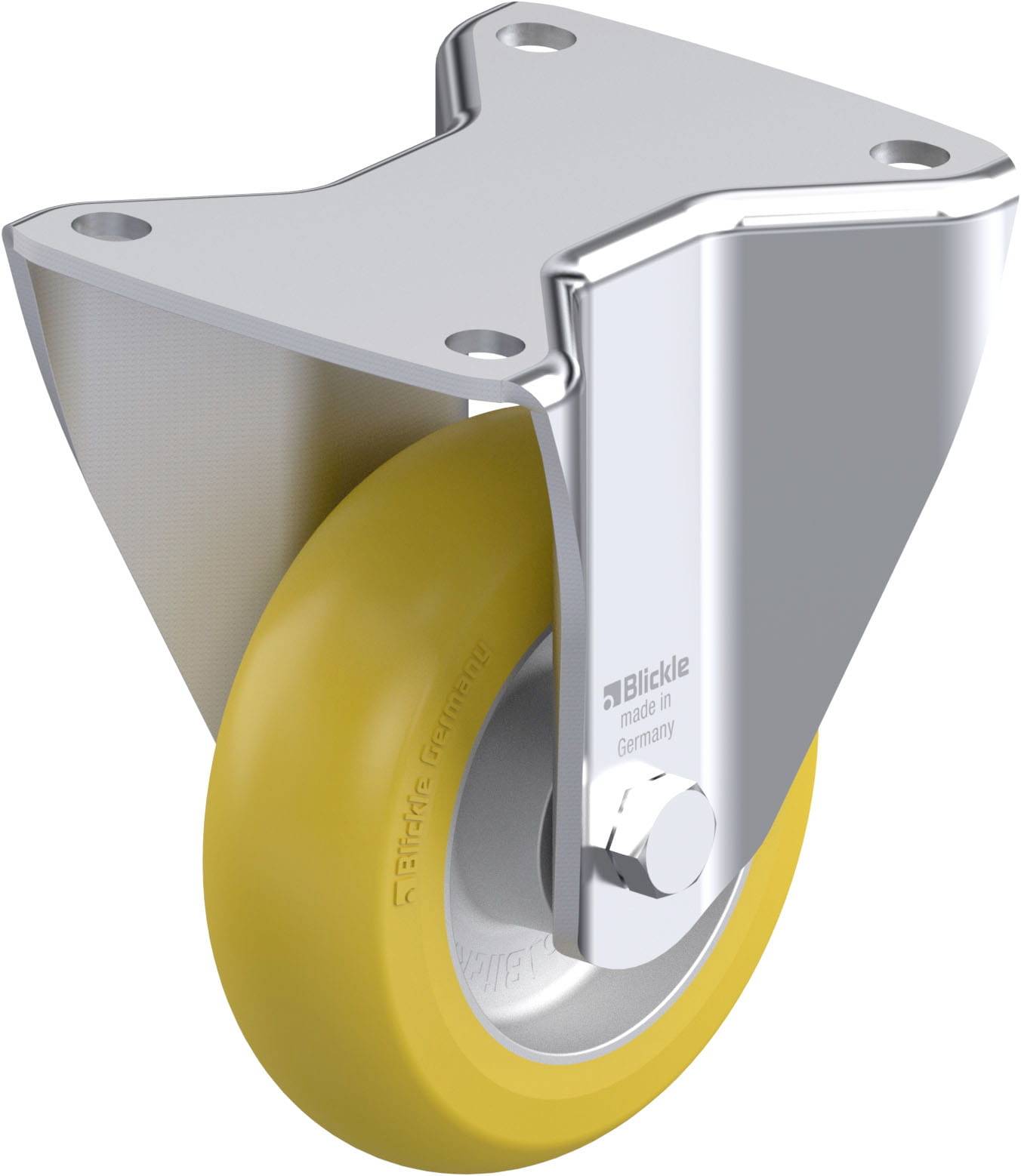

Blickle 872004 BH-ALTH 125K-3-CO Sheet metal fixed wheel Wheel diameter: 125 mm Load capacity (max.): 550 kg 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Load capacity at 4 km/h: 550 kg
- Material wheel body: Aluminum die casting
- Material: Polyurethane lining
- Colour: Running surface: Light brown
- Colour wheel body: Silver gray
- Temperature resistance up to 70 °C
- Temperature resistance min -20 oC
- Coating hardness 92 Shore A
- Without a trace: Yes
- Anti-static: No.
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Mounting type: Screw-on plate
- Related steering roller: LH-ALTH 125K-3-CO
- Associated wheel: ALTH 125/15K-CO
- Product type
Sheet metal fixed wheel
- Wheel Ø
125 mm
- Load capacity (max.)
550 kg
- Total height
165 mm
- Size
140 x 110 mm
- Wheel width
40 mm
- Bearing type
Ball bearing
- Material
Polyurethane
- Factory colour
Light brown
- Content
1 pc(s)
- Weight
1.612 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3050208 Blickle 872004 BH-ALTH 125K-3-CO Sheet metal fixed wheel Wheel diameter: 125 mm Load capacity (max.): 550 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3050208 Blickle 872004 BH-ALTH 125K-3-CO Sheet metal fixed wheel Wheel diameter: 125 mm Load capacity (max.): 550 kg 1 pc(s)
Description
Steel sheet-Bockrolle, heavy-duty design, with mounting plate,
Heavy-duty wheel with polyurethane tread Blickle Extrathane®, with aluminum wheel body, with strongly balmy running surface
Housing: Series BH
• Sheet steel, galvanized, blue passivated, Cr6-free
• Heavy fork and floor plate
Wheel: Series ALTH
• Coating: High-quality polyurethane elastomer Blickle Extrathane®, hardness 92 shore A, light brown color, trackless, contact-free
• Wheel body: Die-cast aluminum, silver-gray color
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
This text is machine translated.
Heavy-duty wheel with polyurethane tread Blickle Extrathane®, with aluminum wheel body, with strongly balmy running surface
Housing: Series BH
• Sheet steel, galvanized, blue passivated, Cr6-free
• Heavy fork and floor plate
Wheel: Series ALTH
• Coating: High-quality polyurethane elastomer Blickle Extrathane®, hardness 92 shore A, light brown color, trackless, contact-free
• Wheel body: Die-cast aluminum, silver-gray color
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
This text is machine translated.
