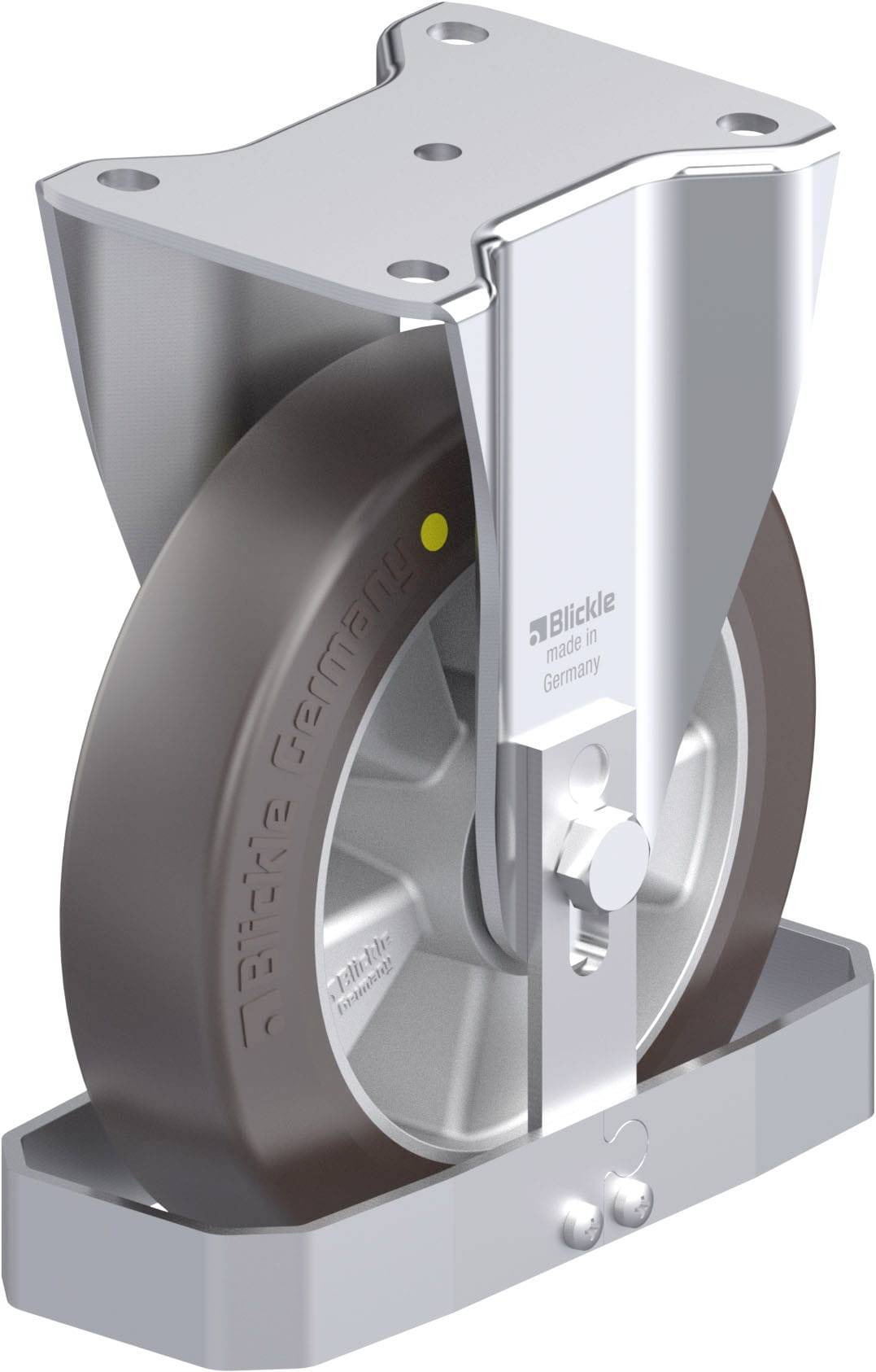

Blickle 896893 BH-ALST 200K-AS-FS Sheet metal fixed wheel Wheel diameter: 200 mm Load capacity (max.): 750 kg 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Load capacity at 4 km/h: 750 kg
- Material wheel body: Aluminum die casting
- Material: Polyurethane lining
- Colour run lining: Dark gray
- Colour wheel body: Silver gray
- Temperature resistance up to 70 °C
- Temperature resistance min -20 oC
- Coating hardness 75 Shore A
- Without a trace: Yes
- Anti-static: Yes
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Mounting type: Screw-on plate
- Accompanying steering roller: LH-ALST 200K-AS-FS
- Associated wheel: ALST 200/20K-AS
- Product type
Sheet metal fixed wheel

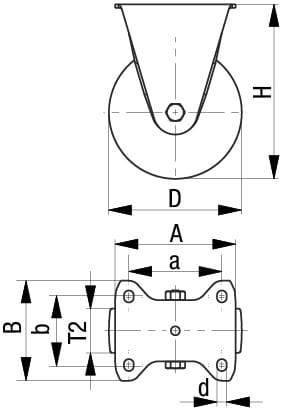

- Wheel Ø
200 mm
- Load capacity (max.)
750 kg
- Total height
245 mm
- Size
140 x 110 mm
- Wheel width
50 mm
- Bearing type
Ball bearing
- Material
Polyurethane
- Factory colour
Dark grey
- Content
1 pc(s)
- Weight
3.808 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3050180 Blickle 896893 BH-ALST 200K-AS-FS Sheet metal fixed wheel Wheel diameter: 200 mm Load capacity (max.): 750 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3050180 Blickle 896893 BH-ALST 200K-AS-FS Sheet metal fixed wheel Wheel diameter: 200 mm Load capacity (max.): 750 kg 1 pc(s)
Description
Steel plate fixed roller, heavy-duty version, with screw-on plate, with steel foot guard,
Heavy-duty wheel with polyurethane tread Blickle Softhane®, with aluminum wheel body, anti-static
Housing: Series BH
• Sheet steel, galvanized, blue passivated, Cr6-free
• Heavy fork and floor plate
Wheel: Series ALST
• Coating: High-quality polyurethane elastomer Blickle Softhane®, hardness 75 shore A, color dark gray, trackless, contact-free
• Wheel body: Die-cast aluminum, silver-gray color
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
• Electrical leakage (ohmic resistance) ≤ 107 Ω
This text is machine translated.
Heavy-duty wheel with polyurethane tread Blickle Softhane®, with aluminum wheel body, anti-static
Housing: Series BH
• Sheet steel, galvanized, blue passivated, Cr6-free
• Heavy fork and floor plate
Wheel: Series ALST
• Coating: High-quality polyurethane elastomer Blickle Softhane®, hardness 75 shore A, color dark gray, trackless, contact-free
• Wheel body: Die-cast aluminum, silver-gray color
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
• Electrical leakage (ohmic resistance) ≤ 107 Ω
