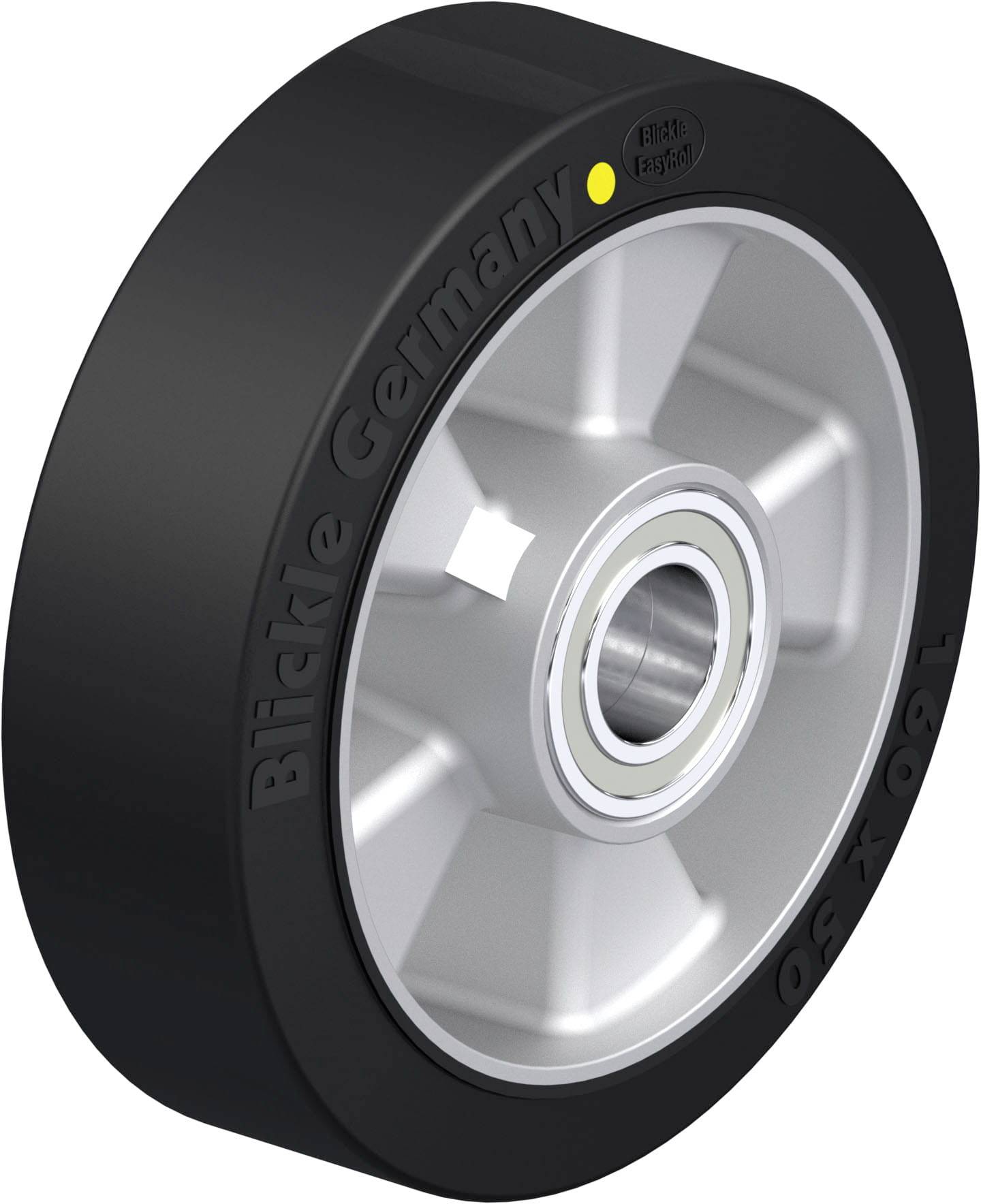

Blickle 940922 ALEV 160/25K-EL Heavy duty caster Wheel diameter: 160 mm Load capacity (max.): 400 kg 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Load capacity at 4 km/h: 400 kg
- Material wheel body: Aluminum die casting
- Material run lining: Rubber
- Colour: Running coating black
- Colour wheel body: Silver gray
- Temperature resistance up to 80 °C
- Temperature resistance min -20 oC
- Coating hardness 71 Shore A
- Without a trace: No.
- Anti-static: No.
- Electrically conductive: Yes
- No discoloration of contact
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Product type
Heavy duty caster
- Wheel Ø
160 mm
- Load capacity (max.)
400 kg
- Axle hole diameter
25 mm
- Wheel width
50 mm
- Bearing type
Ball bearing
- Material
Rubber
- Factory colour
Black
- Content
1 pc(s)
- Hub length
60 mm
- Weight
1.09 kg
Documents & Downloads
Datasheet
Datasheet 3049944 Blickle 940922 ALEV 160/25K-EL Heavy duty caster Wheel diameter: 160 mm Load capacity (max.): 400 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3049944 Blickle 940922 ALEV 160/25K-EL Heavy duty caster Wheel diameter: 160 mm Load capacity (max.): 400 kg 1 pc(s)
Description
Heavy-duty wheel with elastic solid tires 'Blickle Easy Roll', with aluminum wheel body, electrically conductive
Tyres:
• High-quality elastic solid rubber "Blickle EasyRoll" in light running quality, hardness 71 shore A
• Very high driving comfort
• Very gentle on the ground, low-noise operation
• Low rolling resistance
• Colour black
• Vulcanized on the wheel body
Wheel body:
• Diecast aluminum
Other properties:
• High chemical resistance to many aggressive media, but not to oils
• Temperature resistance: -20 °C to +80 ° C, short-term to +100 °C, reduced load capacity above +60 °C.
• Electrical leakage (ohmic resistance) ≤ 104 Ω
This text is machine translated.
Tyres:
• High-quality elastic solid rubber "Blickle EasyRoll" in light running quality, hardness 71 shore A
• Very high driving comfort
• Very gentle on the ground, low-noise operation
• Low rolling resistance
• Colour black
• Vulcanized on the wheel body
Wheel body:
• Diecast aluminum
Other properties:
• High chemical resistance to many aggressive media, but not to oils
• Temperature resistance: -20 °C to +80 ° C, short-term to +100 °C, reduced load capacity above +60 °C.
• Electrical leakage (ohmic resistance) ≤ 104 Ω
