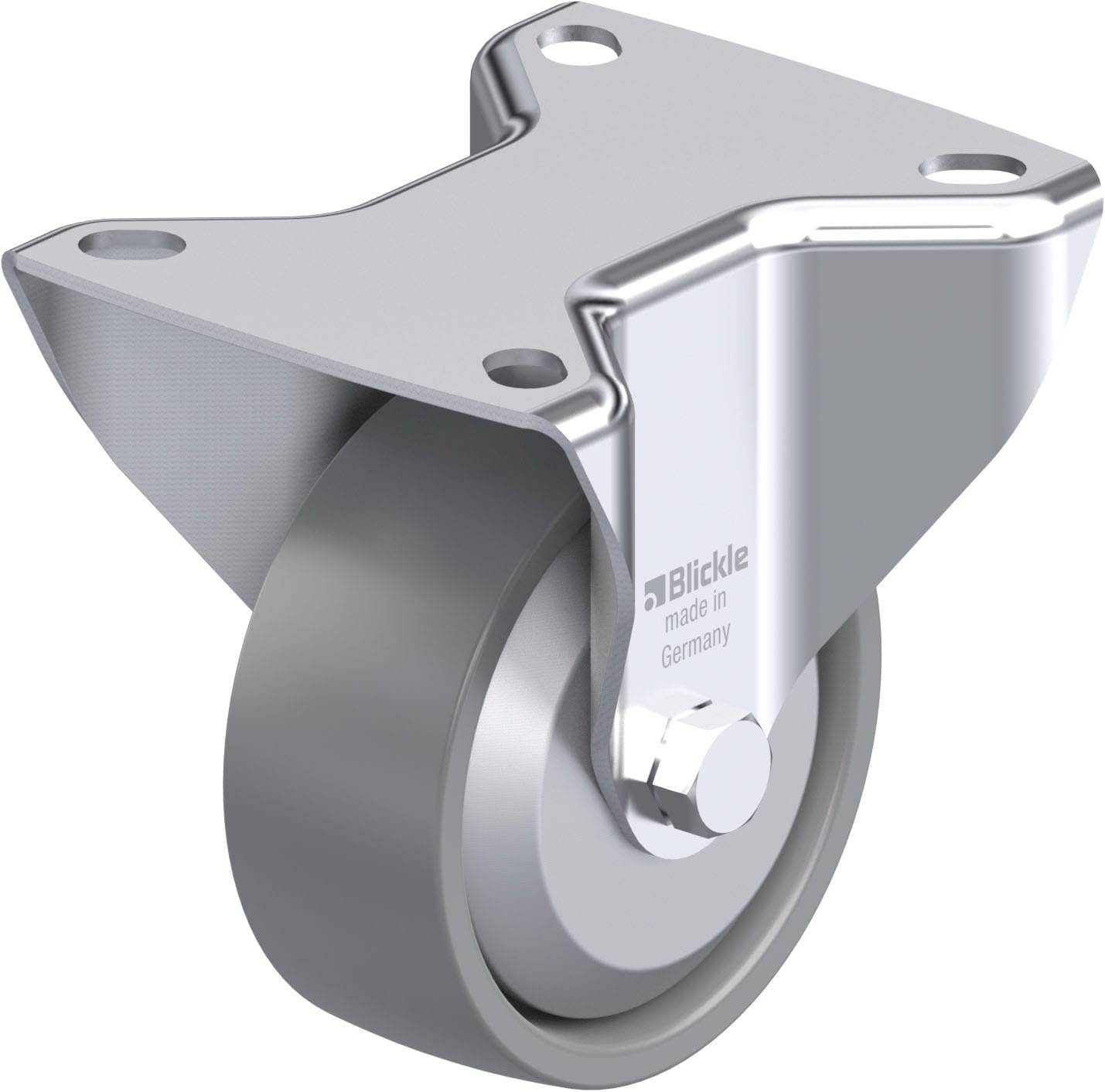

Blickle 946624 B-PO 80KA-ELS-FA Sheet metal fixed wheel Wheel diameter: 80 mm Load capacity (max.): 220 kg 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:

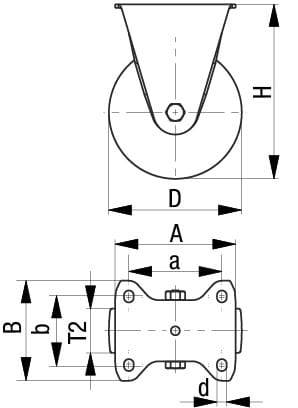

Technical specifications
- Load capacity at 4 km/h: 220 kg
- Material wheel body: High-quality polyamide 6
- Material run lining: Plastic
- Colour run lining: Grey
- Wheel body color: Grey
- Temperature resistance up to 80 °C
- Temperature resistance min -20 oC
- Coating hardness 70 shore D.
- Without a trace: Yes
- Anti-static: No.
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Mounting type: Screw-on plate
- Associated roller: L-PO 80KA-ELS-FA
- Associated wheel: PO 80/8KA-ELS
- Product type
Sheet metal fixed wheel
- Wheel Ø
80 mm
- Load capacity (max.)
220 kg
- Total height
102 mm
- Size
100 x 85 mm
- Wheel width
32 mm
- Bearing type
Ball bearing
- Material
Plastic
- Factory colour
Grey
- Content
1 pc(s)
- Weight
0.393 kg
Documents & Downloads
Datasheet
Datasheet 3050864 Blickle 946624 B-PO 80KA-ELS-FA Sheet metal fixed wheel Wheel diameter: 80 mm Load capacity (max.): 220 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3050864 Blickle 946624 B-PO 80KA-ELS-FA Sheet metal fixed wheel Wheel diameter: 80 mm Load capacity (max.): 220 kg 1 pc(s)
Description
Steel sheet fixed roller, medium heavy construction, with mounting plate,
Wheel made of polyamide, with synthetic thread protection, small with steel thread protection, electrically conductive, without trace
Housing: Series B
• Sheet steel, galvanized, blue passivated, Cr6-free
Wheel: Series PO
• High-quality polyamide 6, unbreakable, hardness 70 shore D, color gray, trackless
Other properties:
• With thread protection made of plastic, small
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +80 ° C, reduced load capacity at over +35 °C.
• Electrical leakage (ohmic resistance) ≤ 104 Ω
This text is machine translated.
Wheel made of polyamide, with synthetic thread protection, small with steel thread protection, electrically conductive, without trace
Housing: Series B
• Sheet steel, galvanized, blue passivated, Cr6-free
Wheel: Series PO
• High-quality polyamide 6, unbreakable, hardness 70 shore D, color gray, trackless
Other properties:
• With thread protection made of plastic, small
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +80 ° C, reduced load capacity at over +35 °C.
• Electrical leakage (ohmic resistance) ≤ 104 Ω
This text is machine translated.
