Buy BLOCK STEU 500/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V

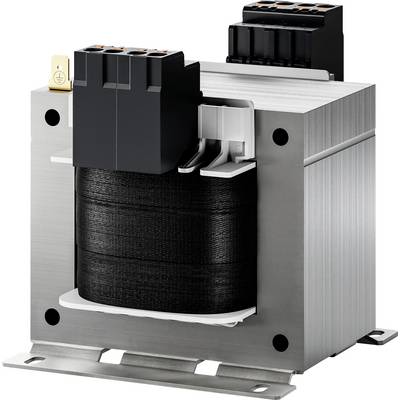

BLOCK STEU 500/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V-0

Datasheet (PDF)

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 126.04 / piece)

€ 126.05

€

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

BLOCK STEU 500/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 115 V AC, 230 V AC 500 VA

230 V and 400 V input voltage
63 - 2500 VA

Technical specifications

Protection class IP 00
Primary ±15 V taps for voltage adjustment.
Natural cooling

Product type: Control transformer

Output voltage: 115 V AC
230 V AC

No. of outputs: 2 x

No. of inputs: 1 x

: 500 VA

Input voltage: 215 V AC
230 V AC
245 V AC
385 V AC
400 V AC
415 V AC

Standards: UL 5085-1/-2, CSA 22.2 No. 66

Connection: Push-in connector

Width: 120 mm

Height: 121 mm

Length: 124 mm

Dim: (L x W x H) 124 x 120 x 121 mm

Output voltage (number x voltage): 2 x 115 V AC, 230 V AC

Design type: Open

Input voltage (number x voltage): 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC

Frequency: 50 - 60 Hz

Weight: 7.7 kg

Content: 1 pc(s)

Insulation class: VDE = B, UL = 130

Mounting type: L-piece
DIN rail

Test mark: cULus recognized

RoHS-compliant: Yes

Protection class: I

Features: +/- 15 V input voltage terminal

Type: STEU 500/23

Max. ambient temperature: +40 °C

Efficiency: 92 %

: 500 VA

Output voltage: 2 x 115 V

Mounting type: M5 screws

Cooling: Natural cooling

Type: STEU 500/23

Fitting method: Screw, mounting rail (TS to 250 VA)

Variants(All information is without VAT, plus shipping costs)

Power

Output voltage

BLOCK STEU 500/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 115 V AC, 230 V AC 500 VA

Item no:710479

This article

500 VA

115 V AC

BLOCK STEU 100/24 Control transformer, Safety transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 12 V AC, 24 V AC 100 VA

Item no:1390885

100 VA

12 V AC

BLOCK STEU 1000/24 Control transformer, Safety transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 12 V AC, 24 V AC 1000 VA

Item no:1390886

1000 VA

12 V AC

BLOCK STEU 2500/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 115 V AC, 230 V AC 2500 VA

Item no:1390887

2500 VA

115 V AC

BLOCK STEU 500/24 Control transformer, Safety transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 12 V AC, 24 V AC 500 VA

Item no:1390888

500 VA

12 V AC

BLOCK STEU 100/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 115 V AC, 230 V AC 100 VA

Item no:710326

100 VA

115 V AC

BLOCK STEU 1000/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 115 V AC, 230 V AC 1000 VA

Item no:710352

1000 VA

115 V AC

BLOCK STEU 160/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 115 V AC, 230 V AC 160 VA

Item no:710378

160 VA

115 V AC

BLOCK STEU 160/24 Control transformer, Safety transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 12 V AC, 24 V AC 160 VA

Item no:710391

160 VA

12 V AC

BLOCK STEU 250/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 115 V AC, 230 V AC 250 VA

Item no:710404

250 VA

115 V AC

Documents & Downloads

Datasheet

Datasheet 710479 BLOCK STEU 500/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V

User & Safety Instructions

User & Safety Instructions 710479 BLOCK STEU 500/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V

Conformity certificate

Conformity certificate 710479 BLOCK STEU 500/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V

Description

Low power on current control, safety, or isolation transformer with tension spring clamps and dual purpose foot plate for screw and rail mounting (TS-35 rail to 250 VA) as per DIN 50022.
