Highlights & Details

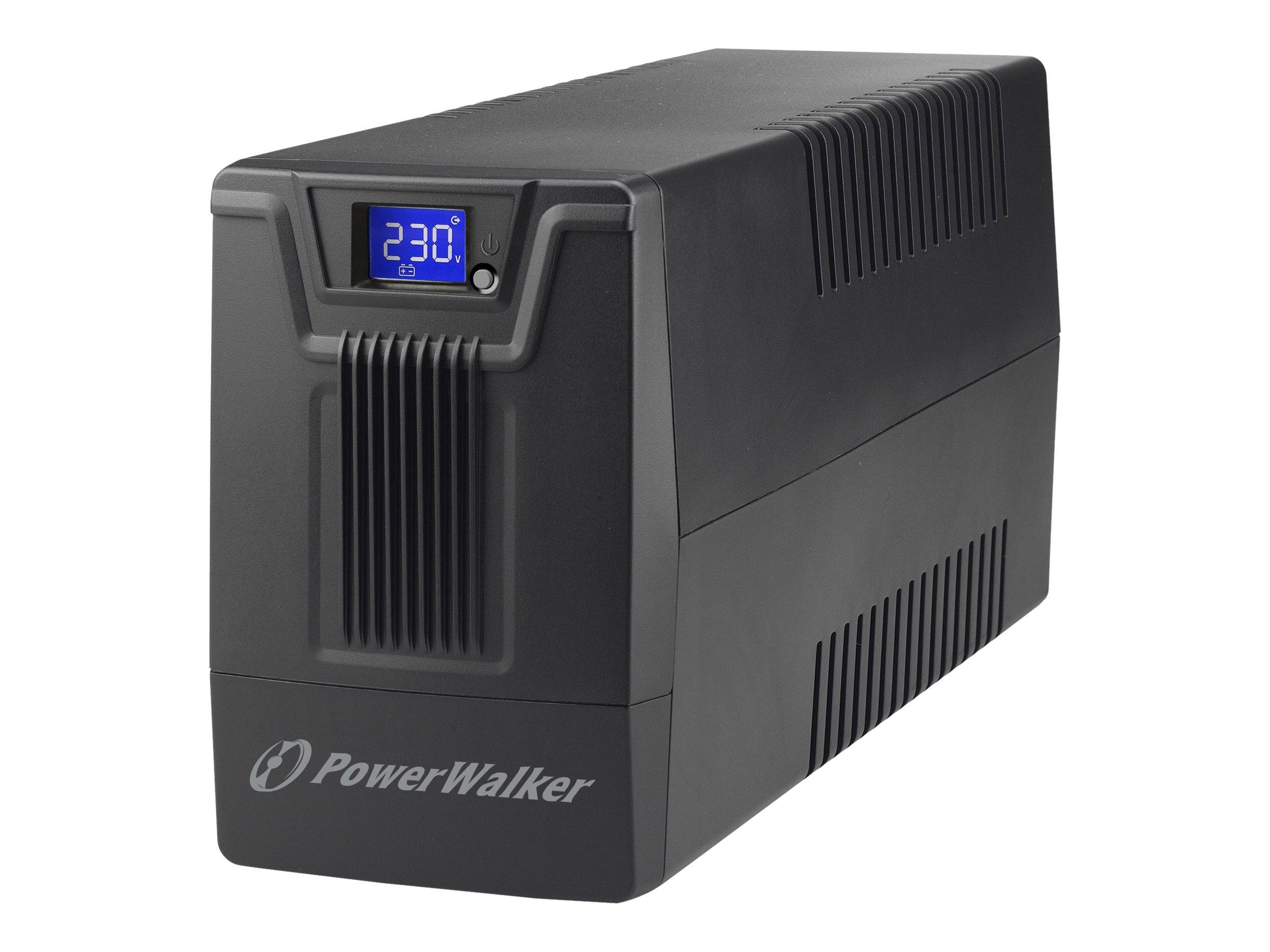

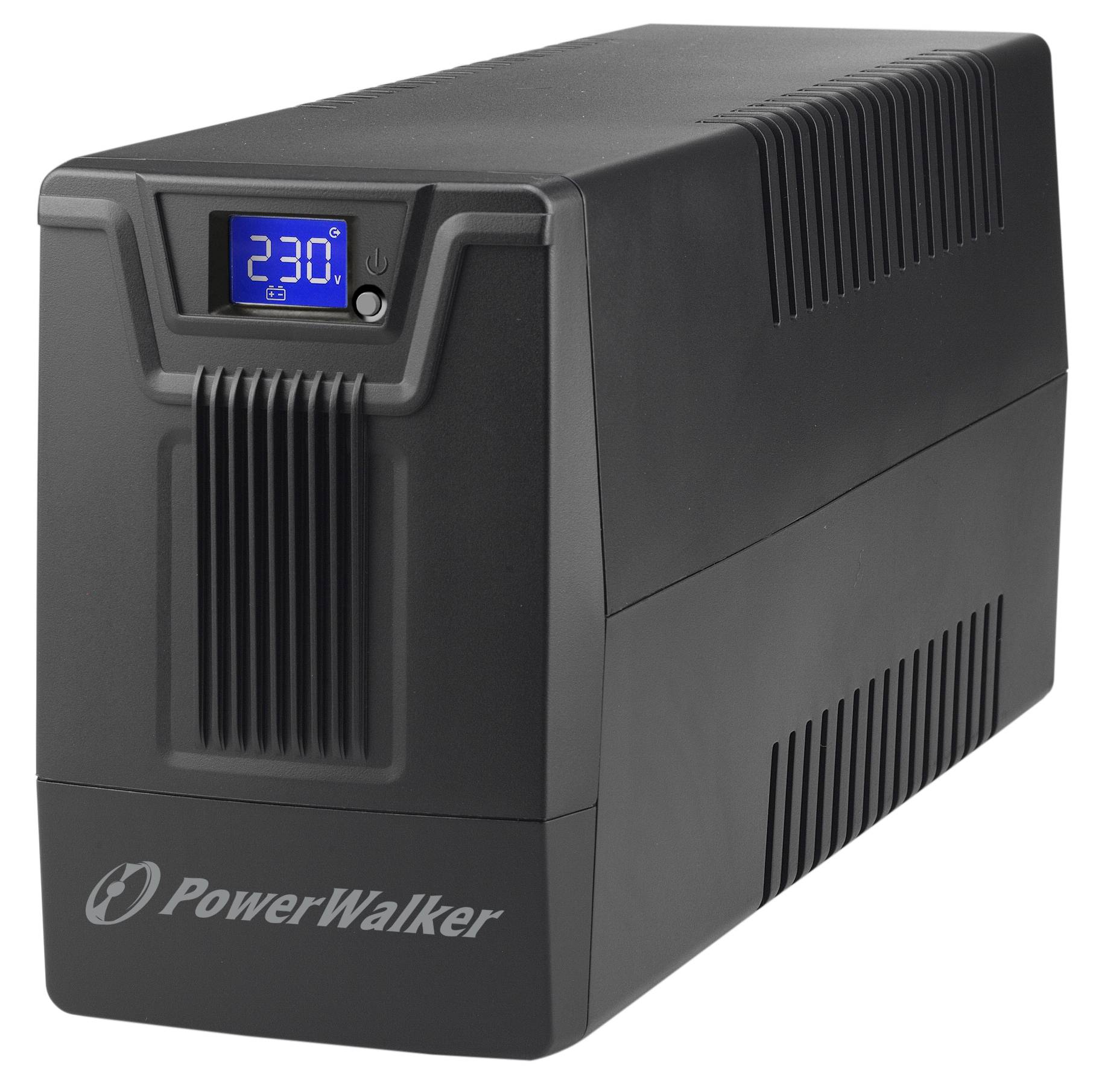

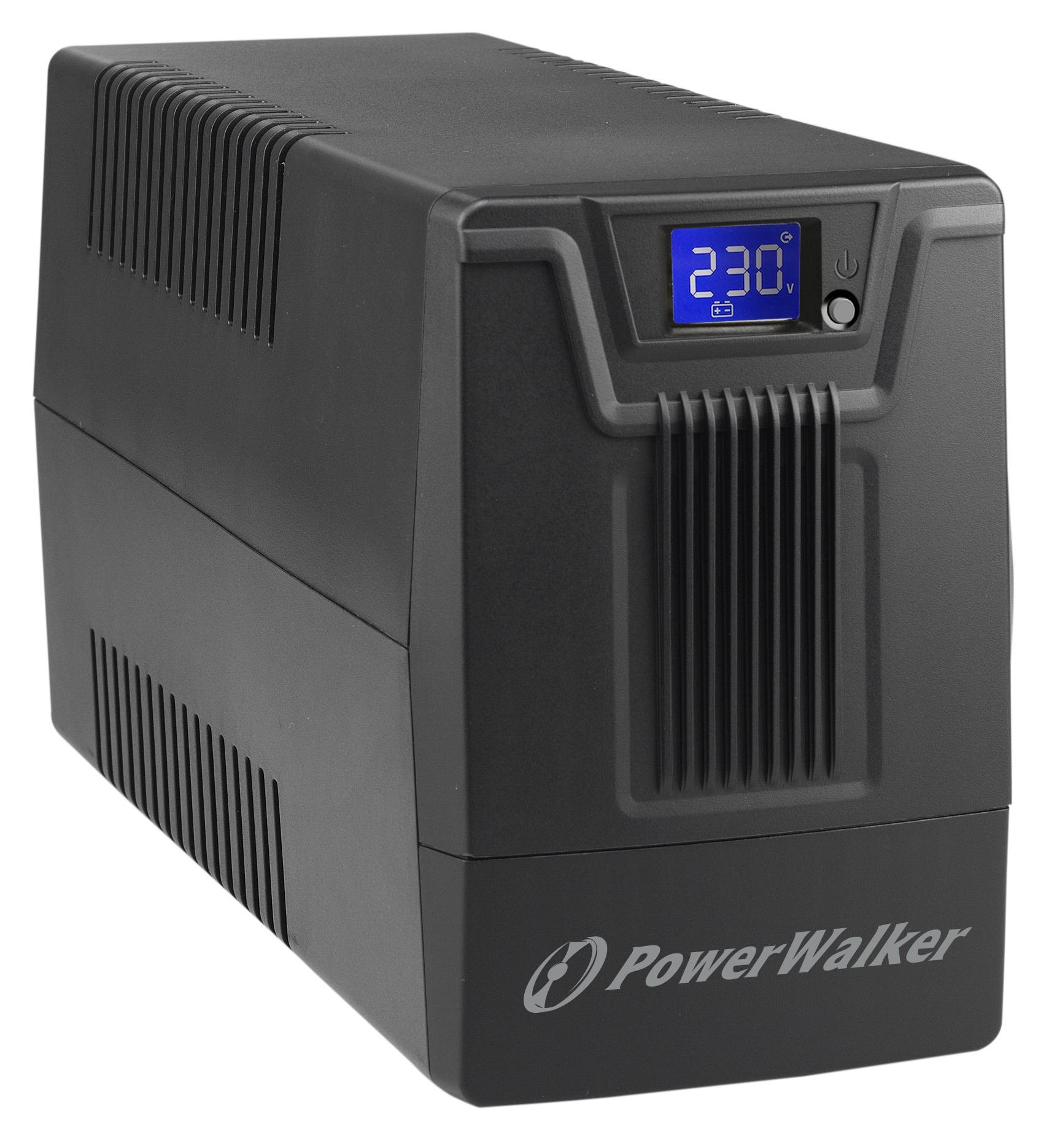

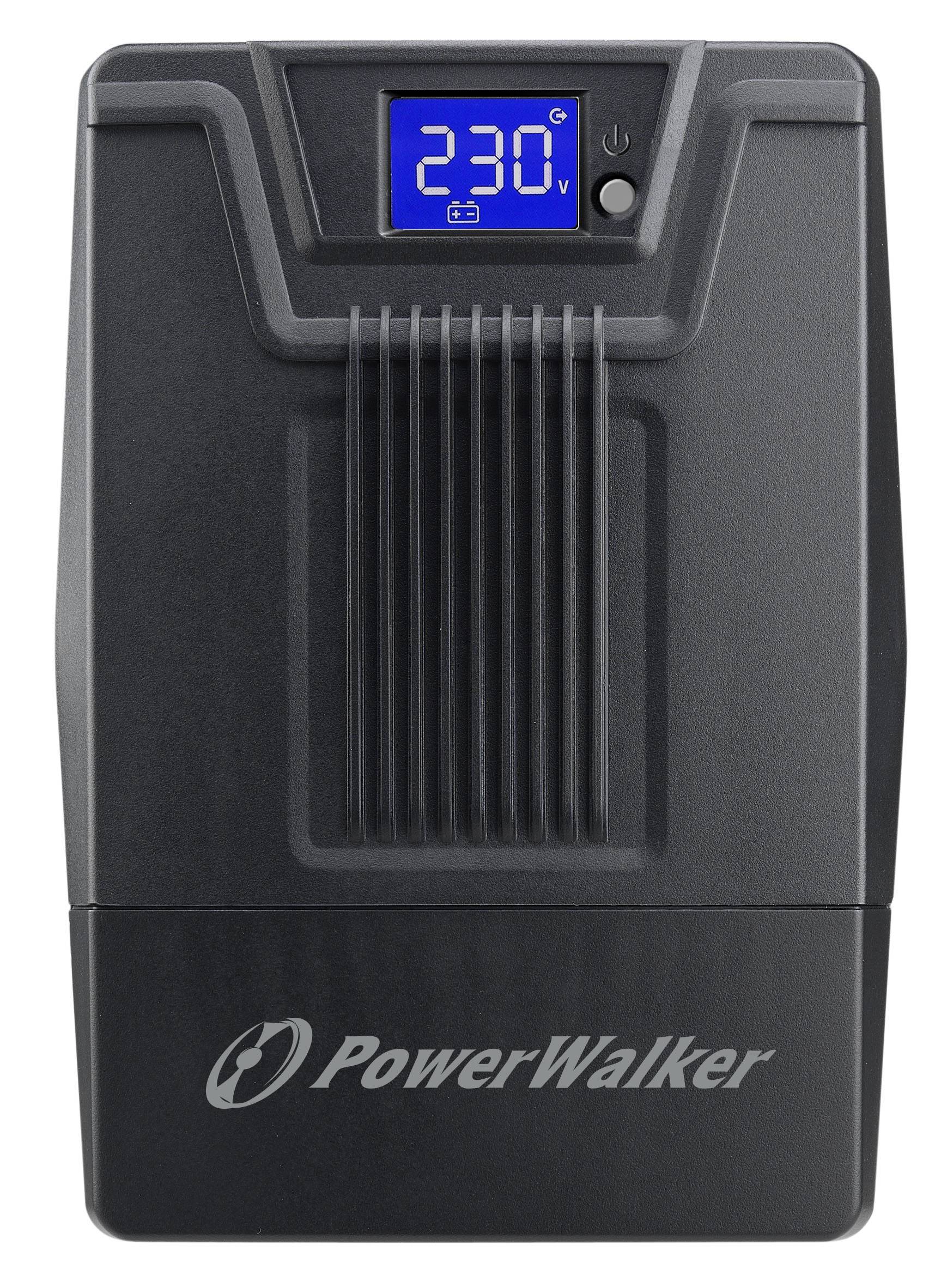

BLUEWALKER - PowerWalker VI 800 SCL - UPS - 162 AC
- HID-compatible (Human Interface Device) - no additional drivers required
- Informative display simplifies the monitoring and control
- Reliable and affordable Line-Interactive series
- Compact size and high power for the home
- Reduced environmental load: Without CD and USB-cable
Technical specifications
- 290 V - 480 Watt - 800 VA - 9 Ah - USB - output connections 2
- Product type
UPS
- Nominal power
480 W
- Nominal power
800 VA
- No. of outputs
2 x
- Output voltage (max.)
230 V
- Dim
(W x H x D) 150 x 200 x 300 mm
- Rechargeable battery capacity (details)
9 Ah
- of which battery-buffered
2
- Weight
5.292
- Width
150 mm
- Height
200 mm
- Depth
300 mm
- Interfaces
USB
- Type
10121140
- Features
LCD
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3738756 Bluewalker 10121140 10121140 UPS
Description
Features UPS topology Line-Interactive Output capacityät
0.8 kVA Output power 480 W Wave Sinn
Input voltage (min) 162 V Input operating voltage <>
(max) 230 V output frequency 50/60 Hz Currentärke br (maximum) 1 A Reaction time 6 ms Efficiency 90
% Output power factor 0.6 Geräusch level 40
dB Energy protection properties Overdischarge,
Overload Design Form factor Tower product color
black Built-in ventilator No display type
LCD connectorüsse and interfaces AC connector types
Type F Number of Type-F OutputäNGE 2 USB <>Port
1 Number of Ethernet LAN Connectionüsse (RJ-45) 1 Battery
Capacityät 9 Ah Battery/Battery Voltage
12 V Number of battery cells 1 Battery charge time 4 h <>
°C Relative humidity in operation 0 - 90
% Weight and dimensions Width 101 mm Depth
300 mm Höhe 142 mm Weight 5 kg Packaging width <>
220 mm Packaging data Operating instructions Yes Technical
Details Goods tariff number (HS) 85078000
This text is machine translated.
0.8 kVA Output power 480 W Wave Sinn
Input voltage (min) 162 V Input operating voltage <>
(max) 230 V output frequency 50/60 Hz Currentärke br (maximum) 1 A Reaction time 6 ms Efficiency 90
% Output power factor 0.6 Geräusch level 40
dB Energy protection properties Overdischarge,
Overload Design Form factor Tower product color
black Built-in ventilator No display type
LCD connectorüsse and interfaces AC connector types
Type F Number of Type-F OutputäNGE 2 USB <>Port
1 Number of Ethernet LAN Connectionüsse (RJ-45) 1 Battery
Capacityät 9 Ah Battery/Battery Voltage
12 V Number of battery cells 1 Battery charge time 4 h <>
°C Relative humidity in operation 0 - 90
% Weight and dimensions Width 101 mm Depth
300 mm Höhe 142 mm Weight 5 kg Packaging width <>
220 mm Packaging data Operating instructions Yes Technical
Details Goods tariff number (HS) 85078000
This text is machine translated.
Features
- PowerWalker VI 800 SCL - UPS - 480 Watt - 800 VA
- Device type : UPS - external
- Weight: 5 kg
- Input voltage : AC 162 - 290 V.
- Output voltage : alternating current 230 V ± 10%
- Power capacity : 480 watts / 800 VA

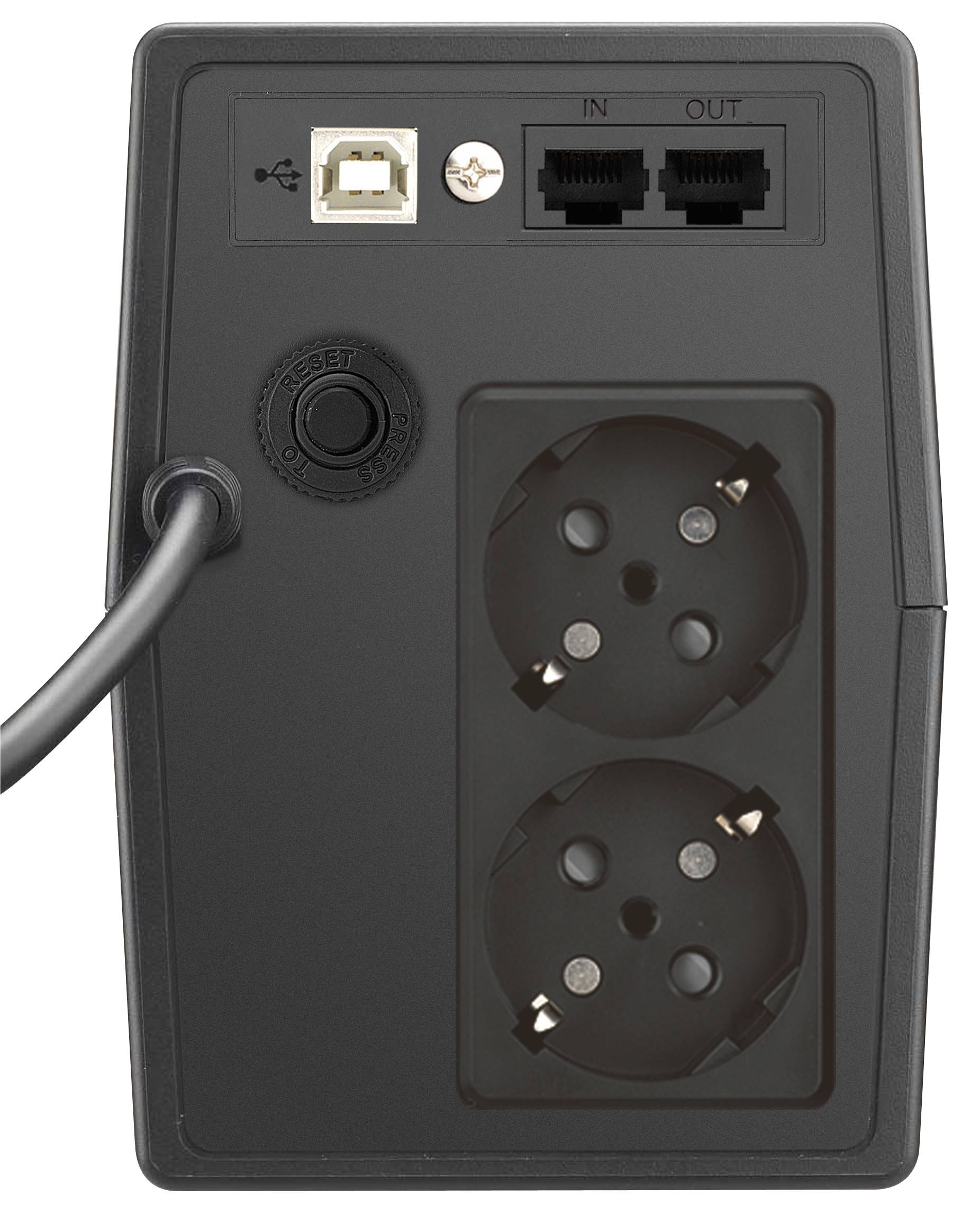

- Input connections : 1 x Power CEE 7/7
- Output terminals : 2 x F-type connectors
- Battery : - 9 Ah
- Number Batteries : 1
- Network : USB
- Dimensions (width x depth x height): 10.1 cm x 30 cm x 14.2 cm
