Name: Bosch Professional GCL2-50C+ RM 2 Plump dot and multi-line laser Self-levelling, Incl. bag Range (max.): 20 m
Brand: Bosch Professional
SKU: 1554883

Bosch Professional GLL 2-50 G cross-line laser on stand shows red vertical and horizontal laser lines for precise measurements.

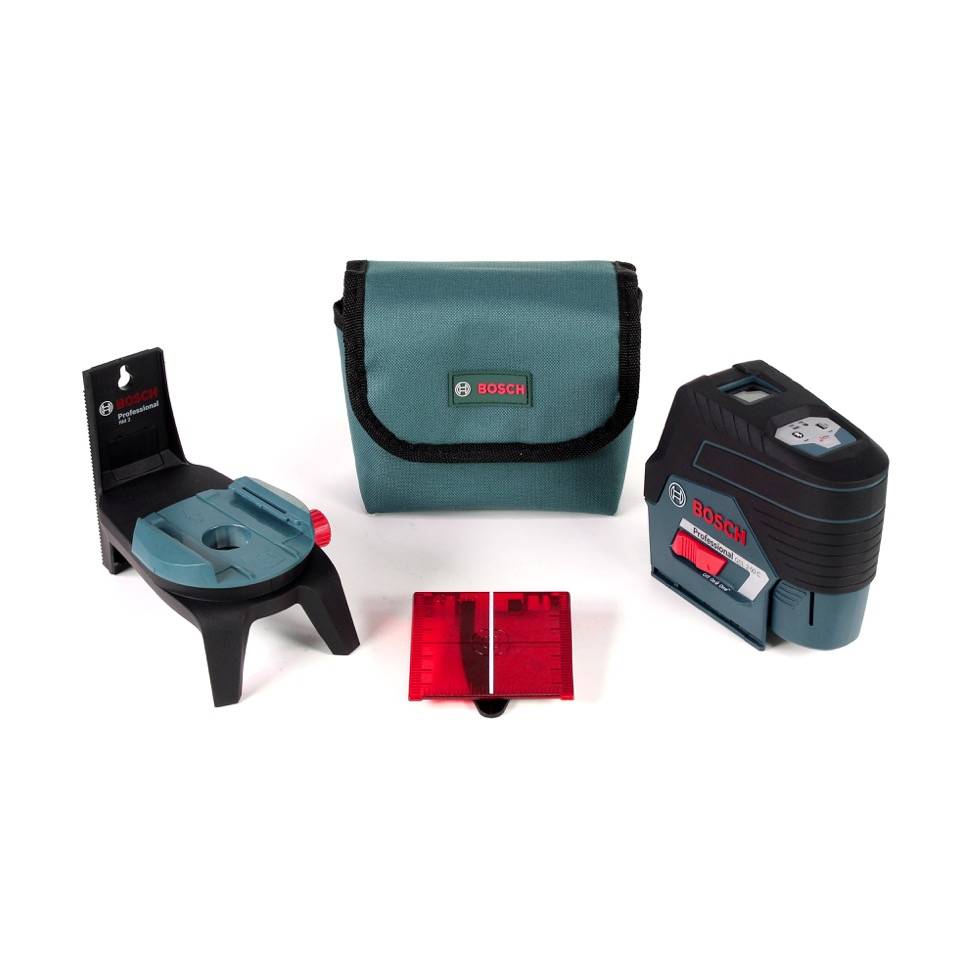

Bosch Professional GCL2-50C+ RM 2 Plump dot and multi-line laser Self-levelling, Incl. bag Range (max.): 20 m-1

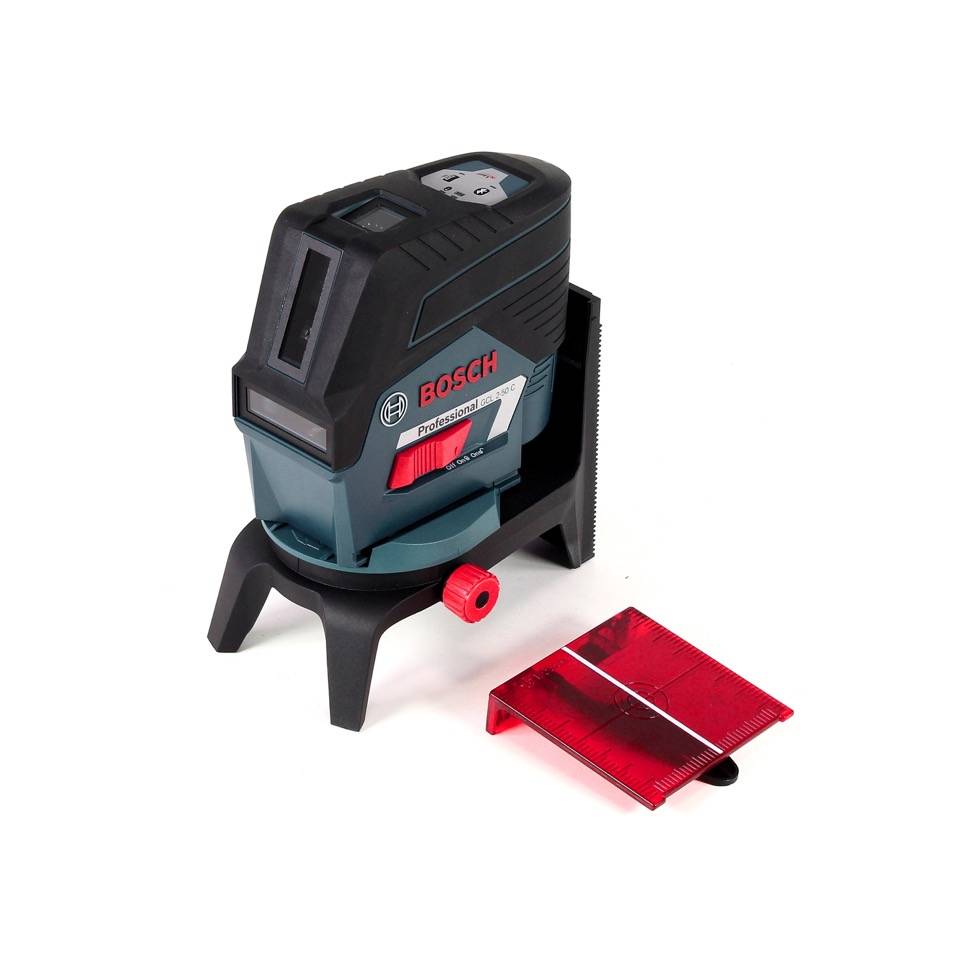

Bosch Professional GCL2-50C+ RM 2 Plump dot and multi-line laser Self-levelling, Incl. bag Range (max.): 20 m-2

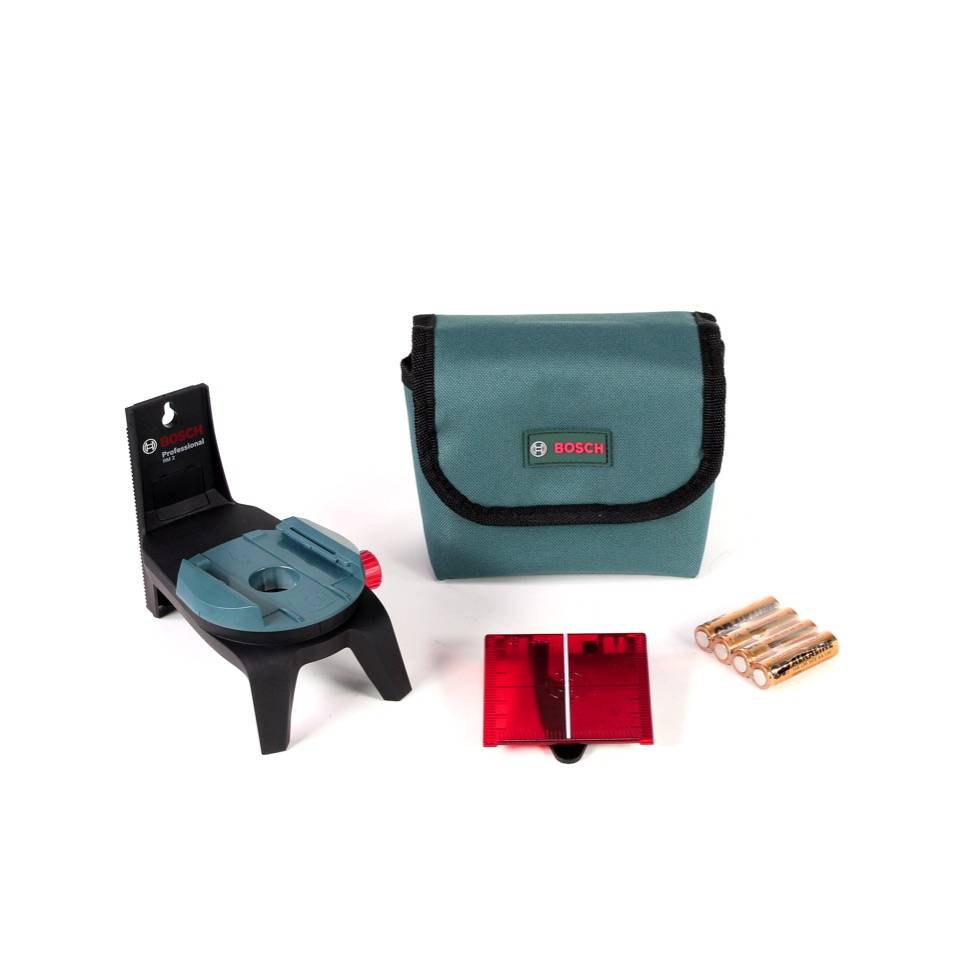

Bosch Professional GCL2-50C+ RM 2 Plump dot and multi-line laser Self-levelling, Incl. bag Range (max.): 20 m-3

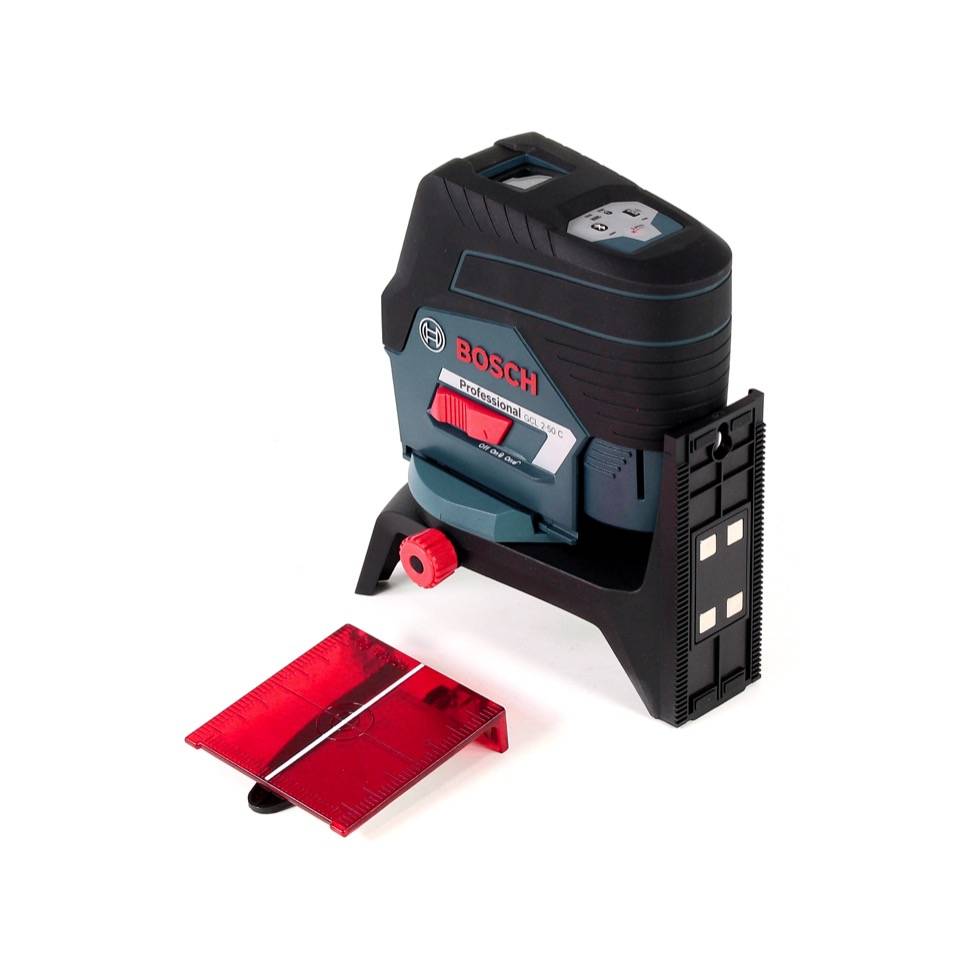

Bosch Professional GCL2-50C+ RM 2 Plump dot and multi-line laser Self-levelling, Incl. bag Range (max.): 20 m-4

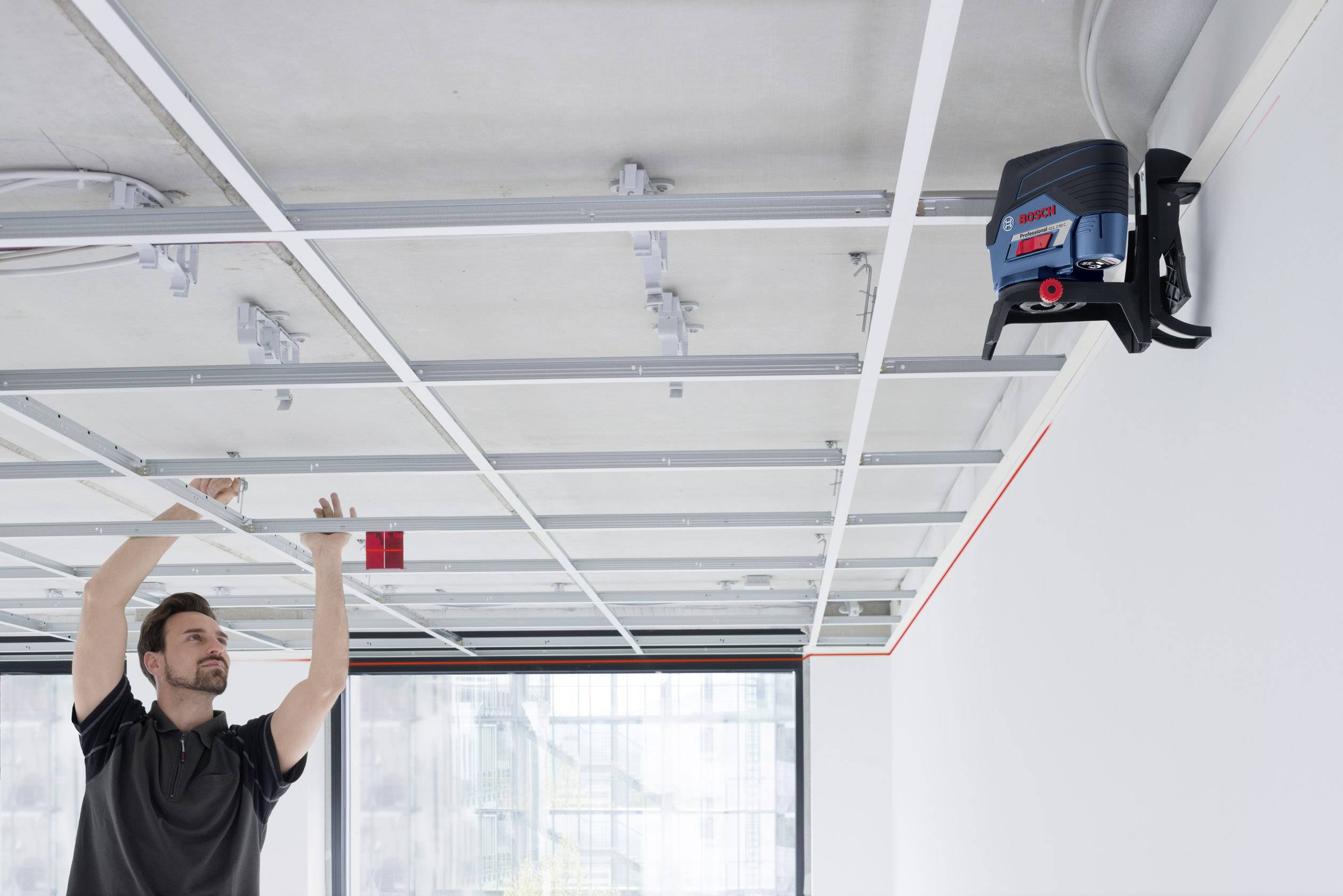

A man is installing a suspended ceiling and using a laser levelling device. He is holding a measuring rod to check the height.

A tradesman is working on a staircase, using a laser level mounted on a tripod to project a red line on the wall.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Working range with receiver: 50 m
Solder point accuracy: ± 0.7 mm/m
Color Laser Line: red
projection: 2 lines / 2 points

Product type: Plump dot and multi-line laser

Features: Self-levelling
Incl. bag

Range (max.): 20 m

Accuracy (+/-): 0.3 mm/m

Auto-adjustment range (+/-): 4°

Laser category: 2

Visible beam length: 650 nm

Operating time (battery-powered): 18 hrs.

Power supply (details): 4 x 1.5 V LR6 (AA) batteries

Tripod thread mount: 1/4"

Length: 250 cm

Width: 350 mm

Height: 150 mm

Dim: (L x W x H) 250 cm x 350 mm x 150 mm

Weight: 600 g

: Manufacturer's standards (no certificate)

Type: GCL2-50C+ RM 2

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1554883 Bosch Professional GCL2-50C+ RM 2 Plump dot and multi-line laser Self-levelling, Incl. bag Range (max.): 20 m

User & Safety Instructions

User & Safety Instructions 1554883 Bosch Professional GCL2-50C+ RM 2 Plump dot and multi-line laser Self-levelling, Incl. bag Range (max.): 20 m

Features

Dual Power Source: operation via 12 V Li-ion battery or alkaline batteries possible
Bluetooth ®
Horizontal and vertical laser lines
Two-centric solder points
Pendulum locking provides for a safe transportation
Dust and splash-water protection according to IP54
100% compatible with all 10.8 & 12 V batteries and chargers of the Bosch Professional series.

Scope of delivery

4 x 1.5 V LR6 (AA) batteries
AA1 alkaline battery adapter
Rotating holder RM2
GCL2-50 C/CG deposit 1
Target
Protective case.

Hints

This text is machine translated.

Description

Features

Dual Power Source: operation via 12 V Li-ion battery or alkaline batteries possible
Bluetooth ®
Horizontal and vertical laser lines
Two-centric solder points
Pendulum locking provides for a safe transportation
Dust and splash-water protection according to IP54
100% compatible with all 10.8 & 12 V batteries and chargers of the Bosch Professional series.
