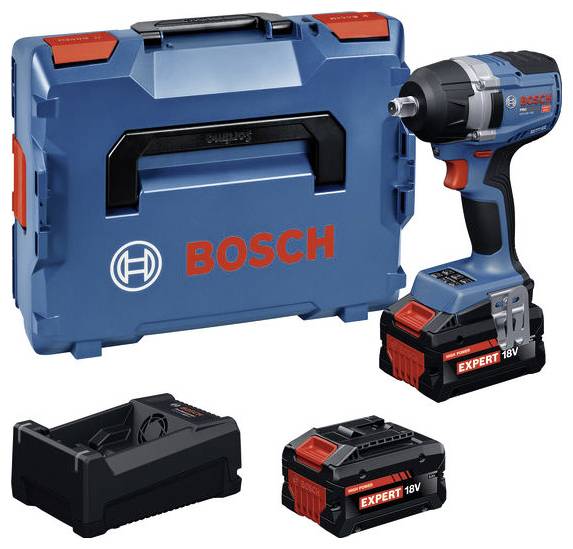

Bosch Professional GDS18V-750 06019L9101 Cordless impact driver 18 V Li-ion

1/7
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable

Sales and shipping:
Conrad ElectronicTerms & Conditions

Highlights & Details

Bosch Professional GDS18V-750 06019L9101 Cordless impact driver 18 V Li-ion

  • 18 V/Li-ion battery

Technical specifications

  • Tool holder:1/2 inch male square
Product type

Cordless impact driver

Voltage

18 V

Technology

Li-ion

Blow count

3000 1 /min

Width

77 mm

Height

217 mm

Length

156 mm

Dim

(L x W x H) 156 x 77 x 217 mm

Nominal voltage

18.0 V

Idle speed

0-800 1/min

18.0 V

77 mm

217 mm

156 mm

750 Nm

1/2 inch external square

3000 1/min

0-800 1/min

1.7 kg

17.3 m/s²

1.5 m/s²

FALSE

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3827726 Bosch Professional GDS18V-750 06019L9101 Cordless impact driver 18 V Li-ion

User & Safety Instructions

User & Safety Instructions 3827726 Bosch Professional GDS18V-750 06019L9101 Cordless impact driver 18 V Li-ion

Description

Battery-operated impact screwdriver GDS18V-750, high-performance impact wrenches are often bulky, WAS makes the handling during a long working day exhausting. With a tightening torque of 750 Nm and a break-out torque of 1000 Nm, the powerful PRO GDS18V-750 can be easily achieved with bolts and nuts from M12 to M22. At the same time, this powerful impact screwdriver is very compact. With a head length of only 156 mm the tool is also suitable for long work hours and narrow places. The user interface lets you choose between five speed levels and four screw modes to ensure optimum tool control. Secure Socket Release (SSR) prevents the tool insert from sticking to the screw/nut. Shut Off After Time stops the tool after a predefined period of time to prevent damage to screws or workpieces. Auto Bolt Release (ABR) stops turning when a nut is loosened and prevents it from falling off the thread. The Auto Stop (STOP) mode provides five sensitivity levels for stopping the tool when a screw is flush. This protects both the screw and the workpiece. The PRO GDS18V-750 Rotary Impact Wrench is Ideal for metal workshops and locksmiths, industrial metal processing and vehicle maintenance when using metal screws and nuts from M12 to M22. It is suitable for various concrete screws up to 16 mm for construction work as well as wood screws. It is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V system) as well as AMPShare, the brand-wide rechargeable battery alliance. Use EXPERT batteries for maximum performance. The brushless PRO GDS18V-750 with ½"-square offers an operator interface with several functions, a tool status display, an LED-light and a belt clip for additional comfort. L-BOXX 136 (1 600 A01 2G0). L-BOXX INSERT (1 600 A03 2GZ)

This text is machine translated.

Scope of delivery

  • L-BOXX 136 (1 600 A01 2G0)
  • L-BOXX INSERT (1 600 A03 2GZ)

Hints

Without battery and without charger
