Name: Boxexpert Alster 280180100 Casing 180 x 280 x 100 Aluminium Silver-grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404618

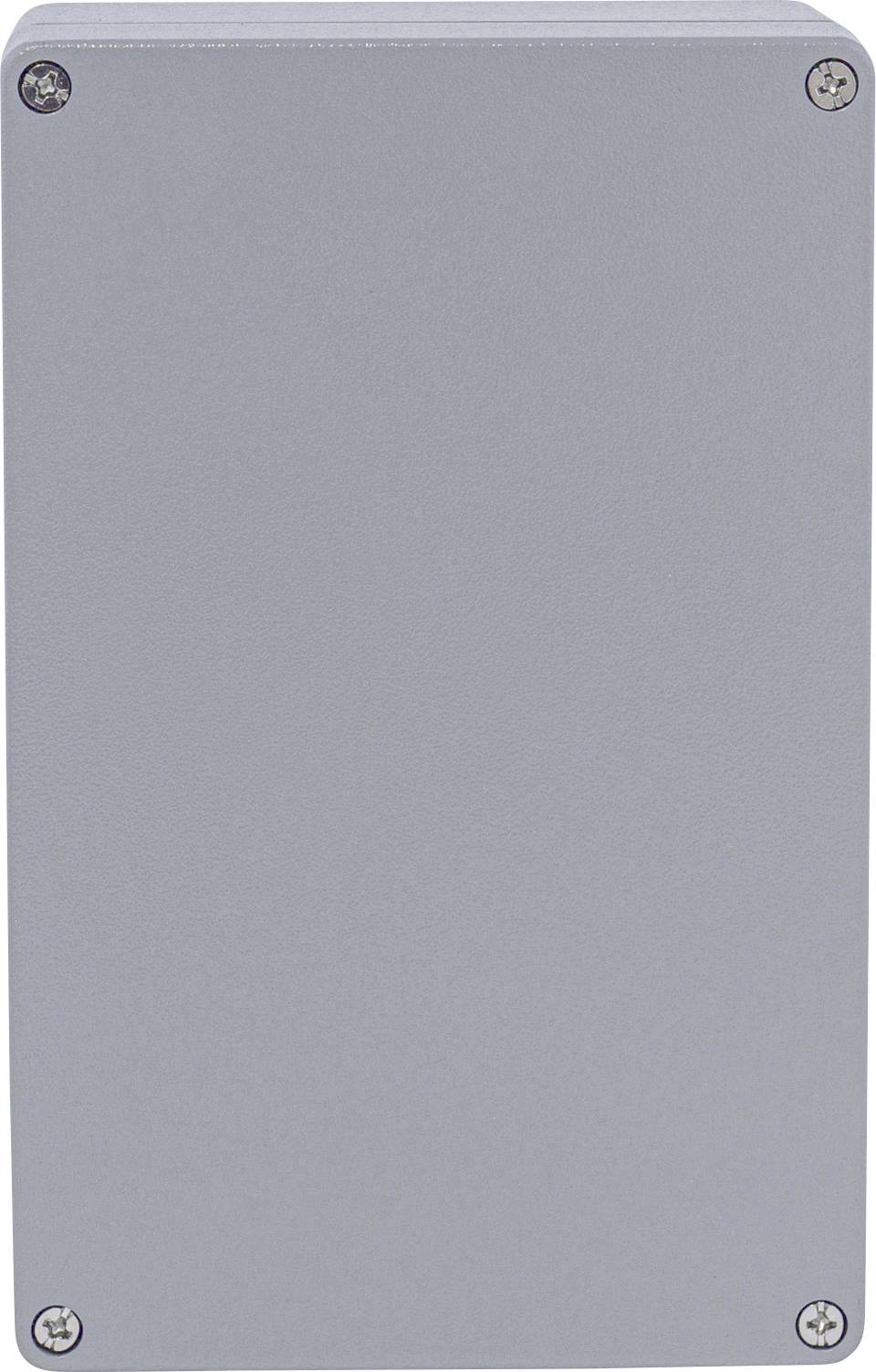

A grey, rectangular enclosure with four screws at the corners.

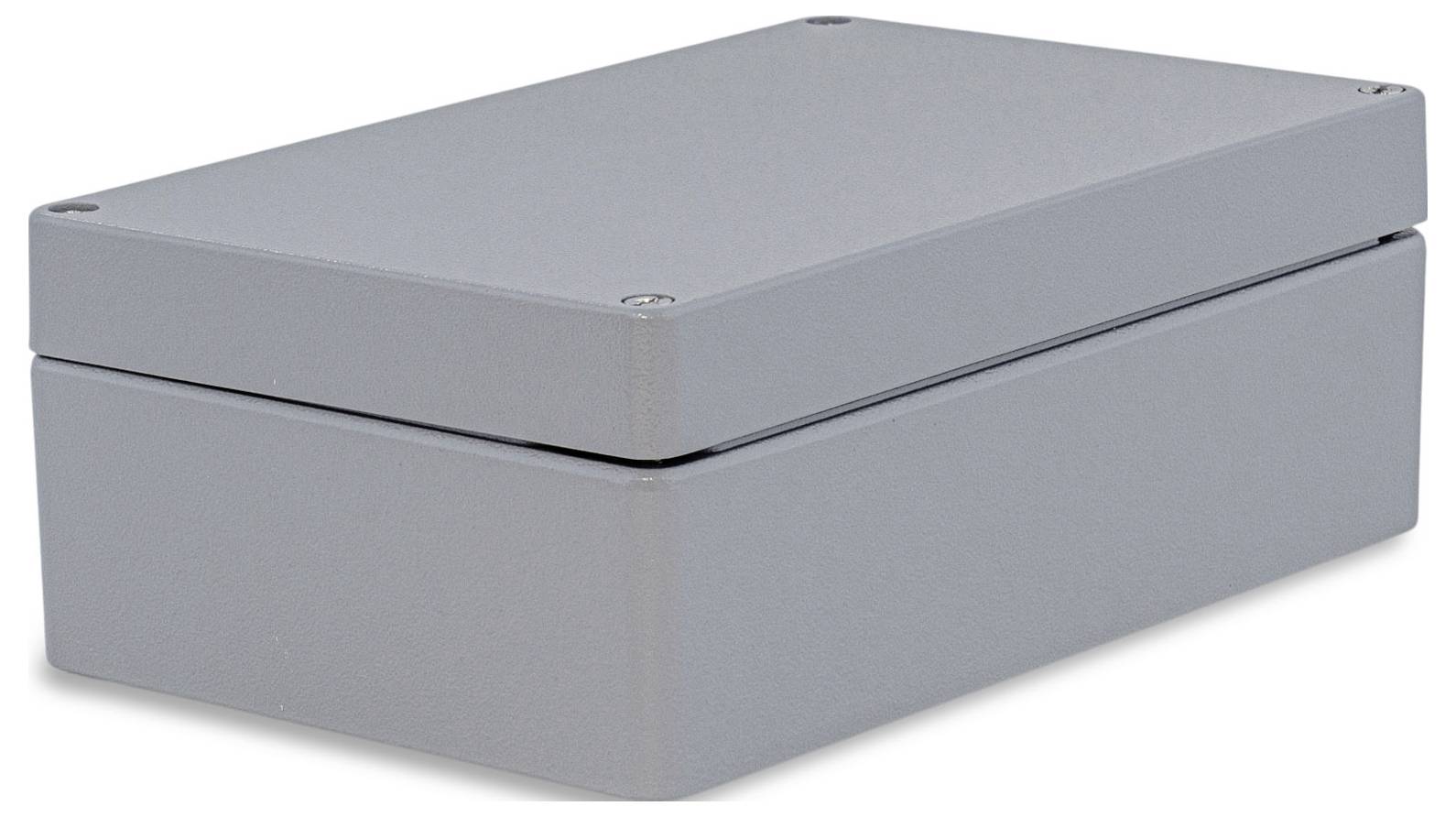

Rectangular, grey enclosure with screws at each corner. It appears robust and could serve as an electronics housing.

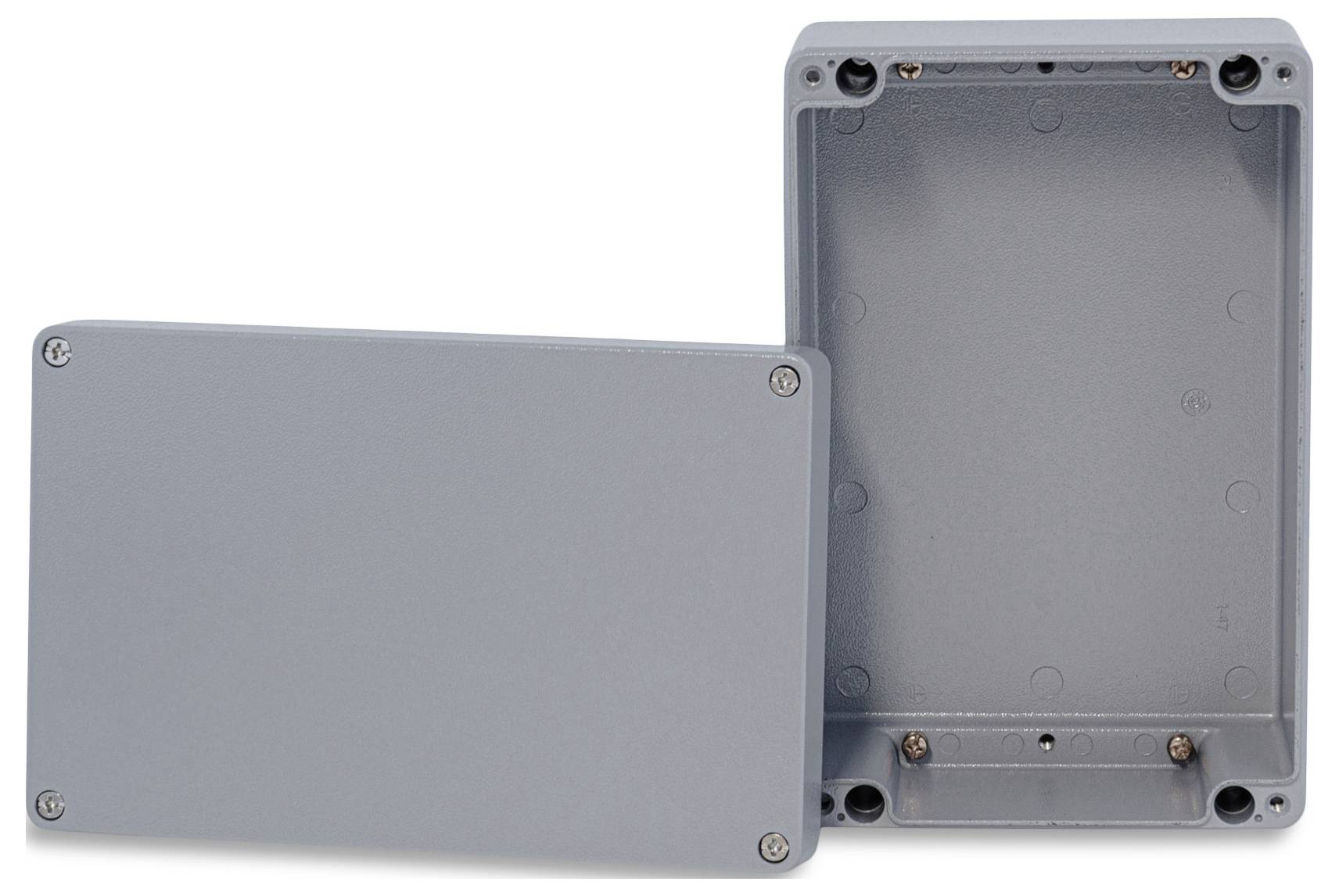

Grey rectangular enclosure with removed cover, showing interior with screw holes, suitable for electronic components.

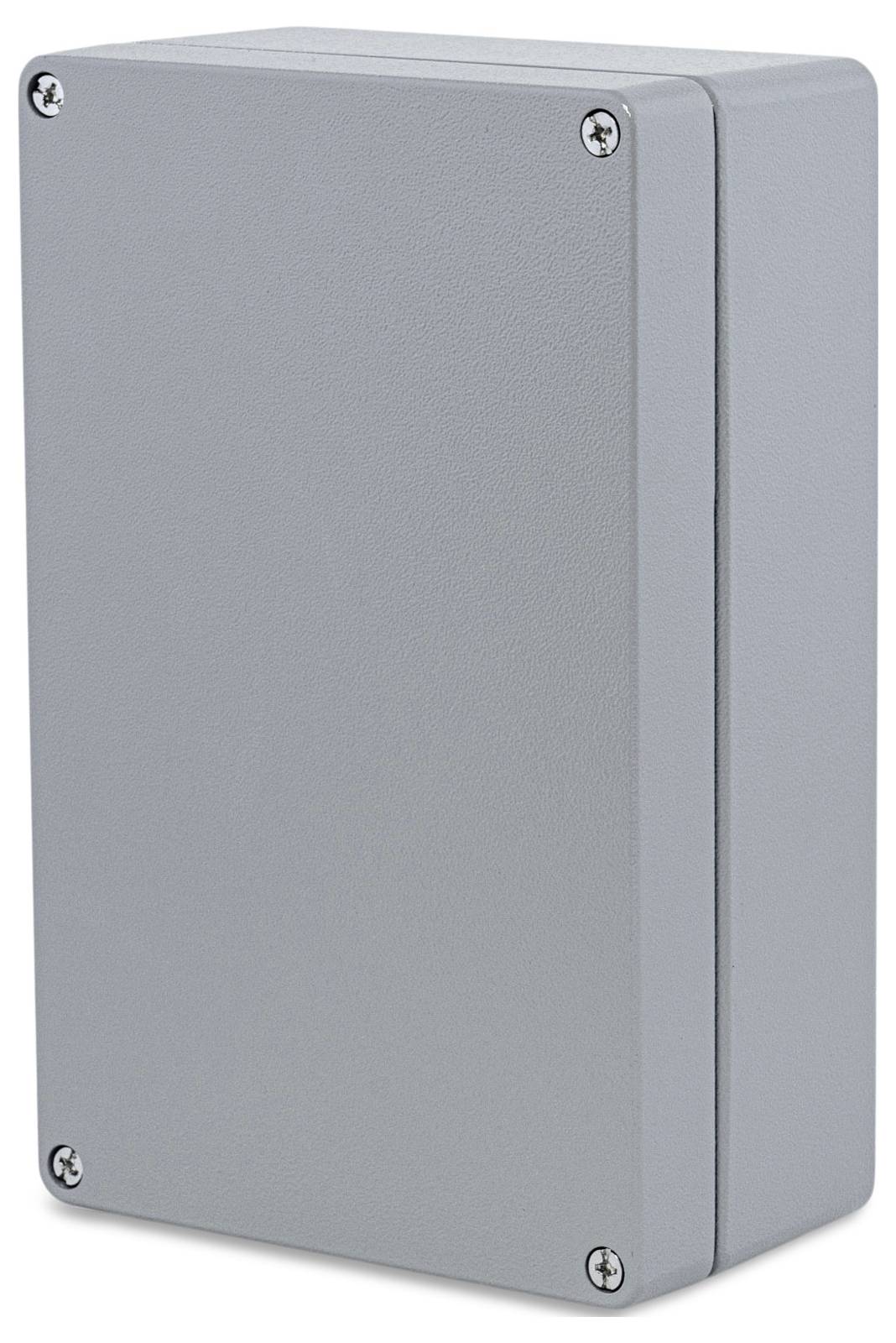

Grey rectangular metal box with screws at the corners, vertically cylindrical.

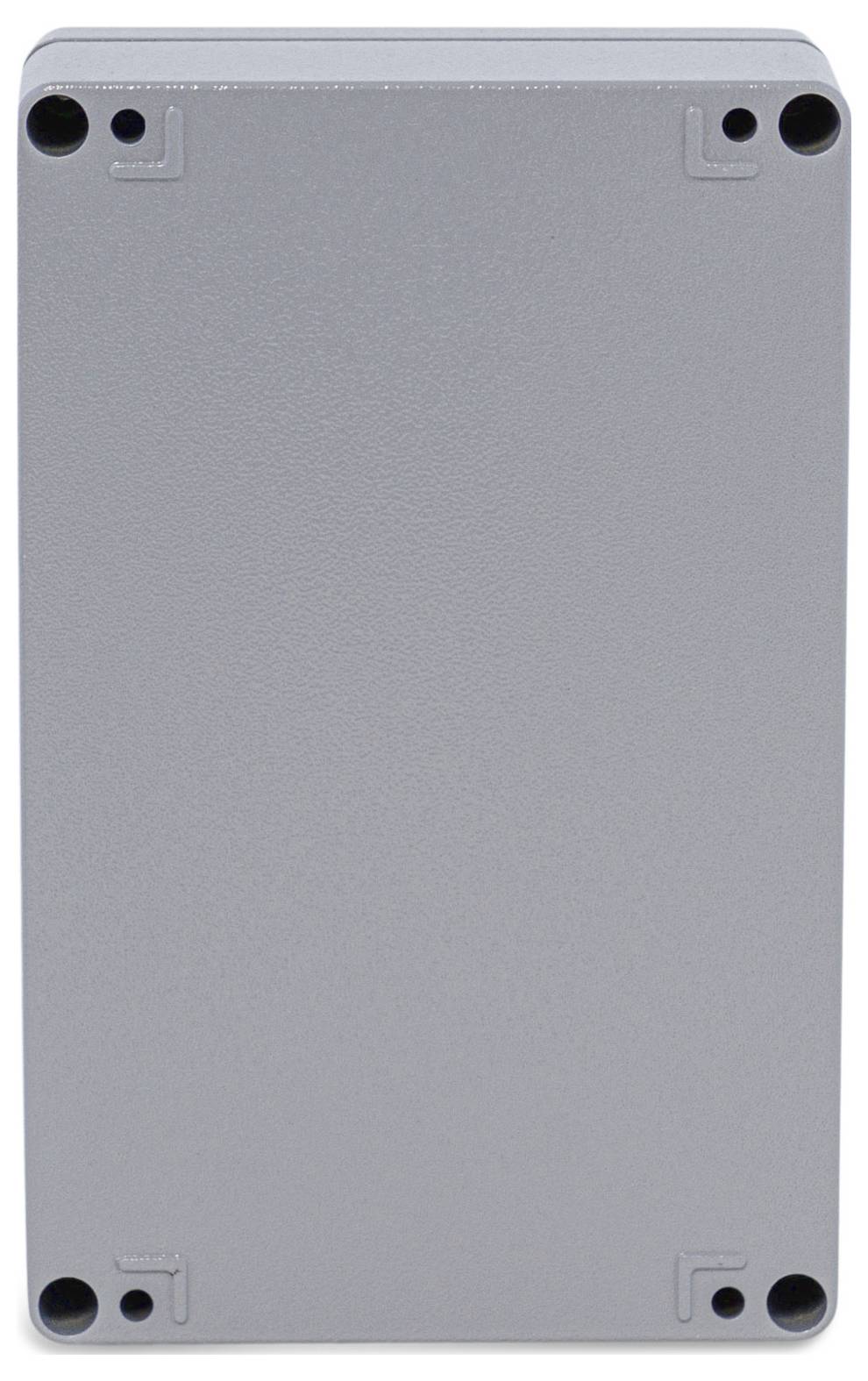

Grey, rectangular plastic enclosure with rounded corners, suitable for use as an electronics housing. No visible logos or markings.

1/5

Packaging type

Piece

Product type

Casing

Material

Aluminium

IP rating

IP66

Width

280 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7001
Coating: No.
Material: Cover / door: Aluminium
Material: Lower part: Aluminium
Sealing material: Polyurethane foam
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 266 x 166 x 92
UL approval: No.
Impact strength: IK09

Packaging type: Piece

Product type: Casing

Features: with mount plate

Material: Aluminium

: IP66

Factory colour: Silver-grey

Length: 180 mm

Width: 280 mm

Height: 100 mm

Dimensions: 180 x 280 x 100 mm

Weight: 2.6 kg

Content: 1 pc(s)

Type: Alster 280180100

Dim: (L x W x H) 180 x 280 x 100 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBAL280180100-A01

Halogen-free: Yes

Max. ambient temperature: 100 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404618 Boxexpert Alster 280180100 Casing 180 x 280 x 100 Aluminium Silver-grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404618 Boxexpert Alster 280180100 Casing 180 x 280 x 100 Aluminium Silver-grey 1 pc(s) Piece

Description

The Alster series of BOXEXPERT offers robust aluminum casing for industrial applications. They are ideal for installing small electrical components such as relays, boards and terminals. Threaded holes in the interior facilitate the attachment of mounting plates and mounting rails. A high-quality powder coating protects against corrosion, while the PU-sealing provides for protection class IP 66. The housing is also resistant to alcohol, petrol and mineral oils. The cover is fixed by captive screws of stainless steel.

This text is machine translated.
