Name: Boxexpert Elbe Polyester grau 1107555 Industrial-grade casing 75 x 100 x 55 Plastic (fibreglass reinforced) Grey 1 pc(s)
Brand: Boxexpert
SKU: 3404593

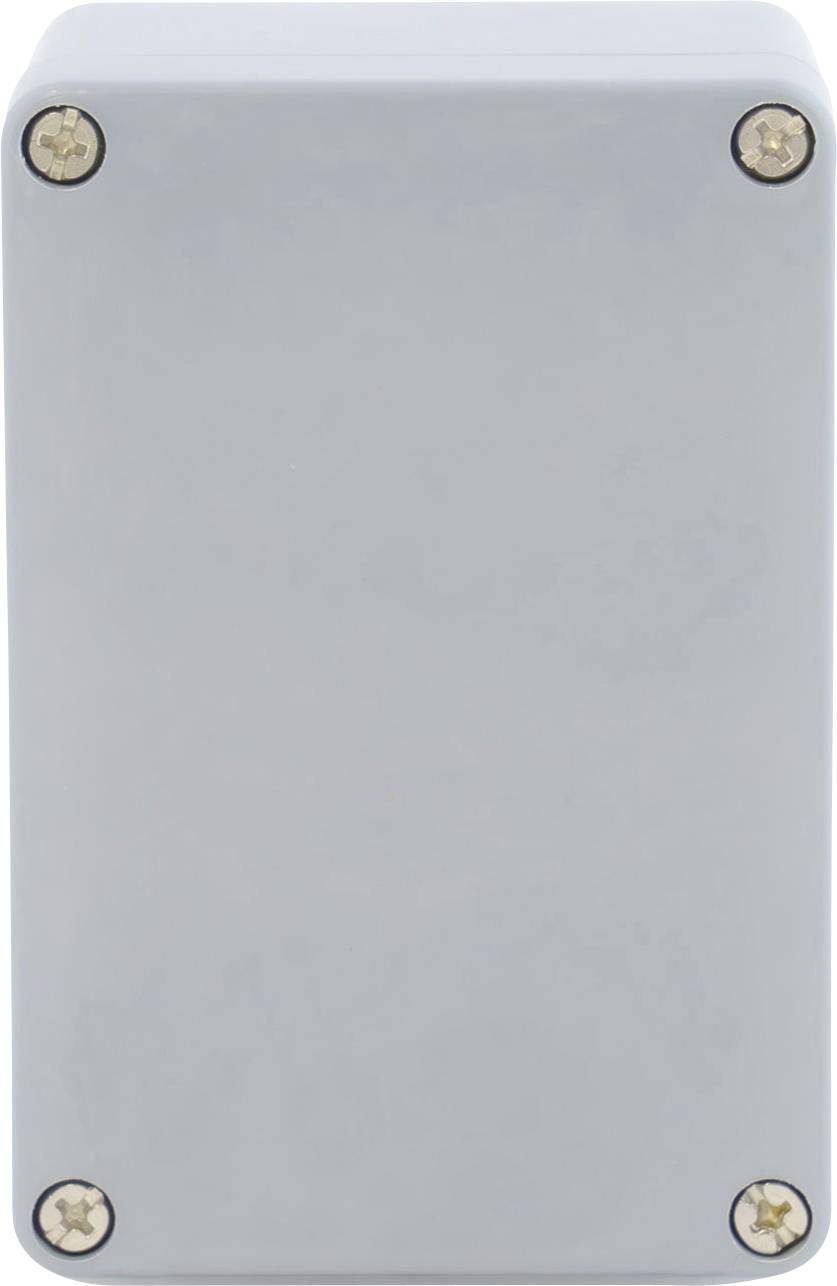

A rectangular, grey box with four visible screws in the corners.

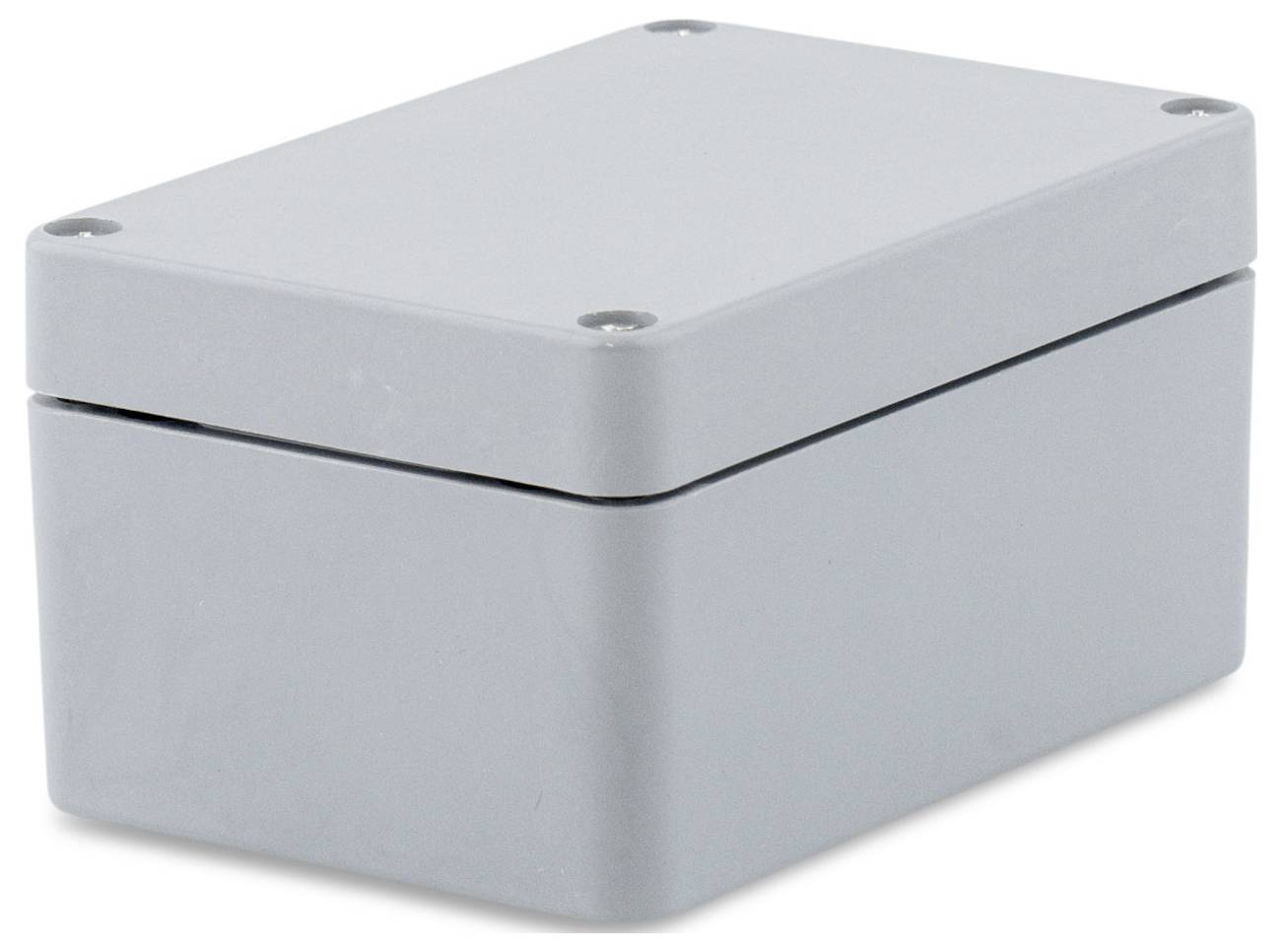

A grey rectangular plastic enclosure with rounded corners and four visible screw points on the top surface.

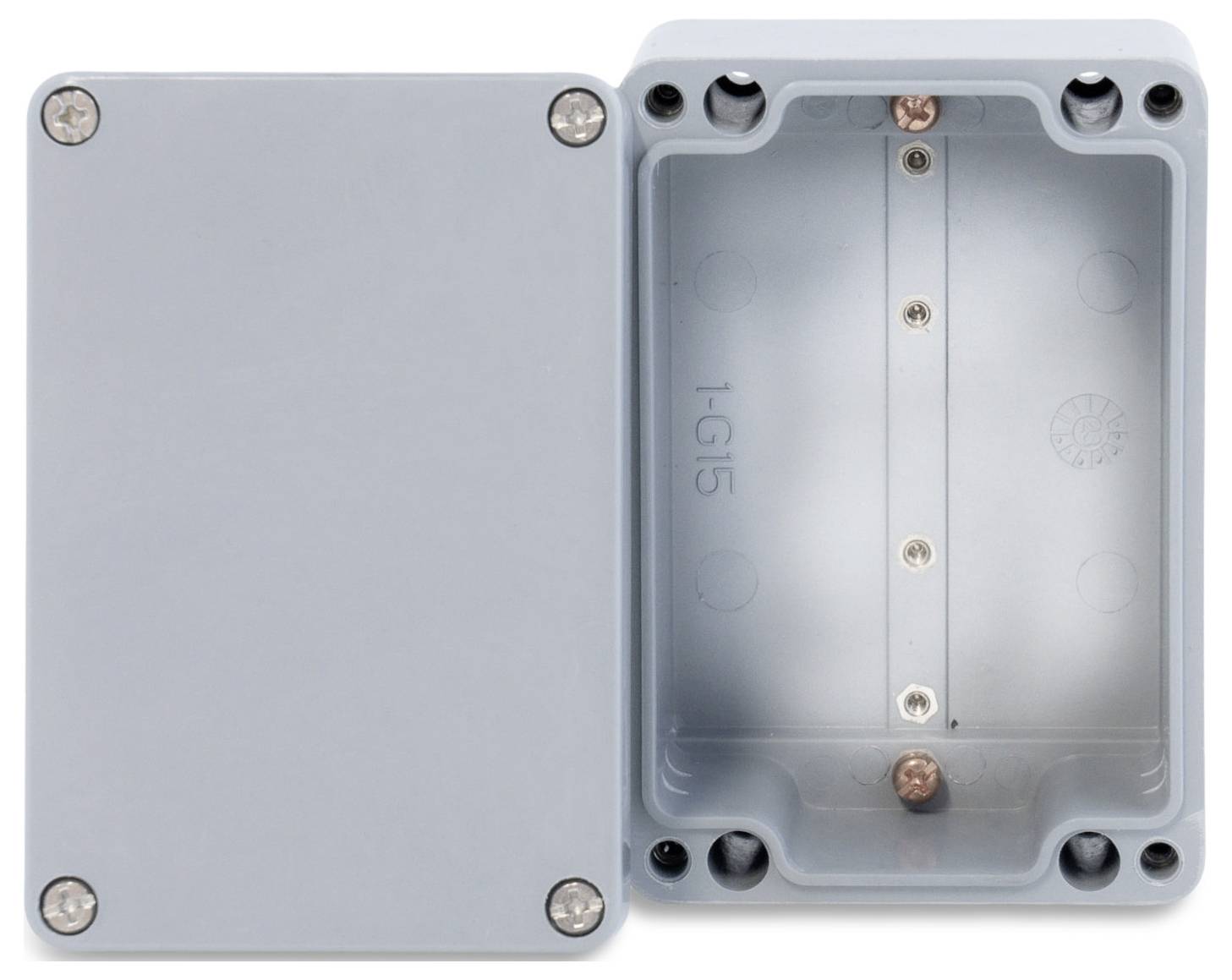

Grey-blue, rectangular plastic casing with the lid removed, revealing screw holes and internal structure.

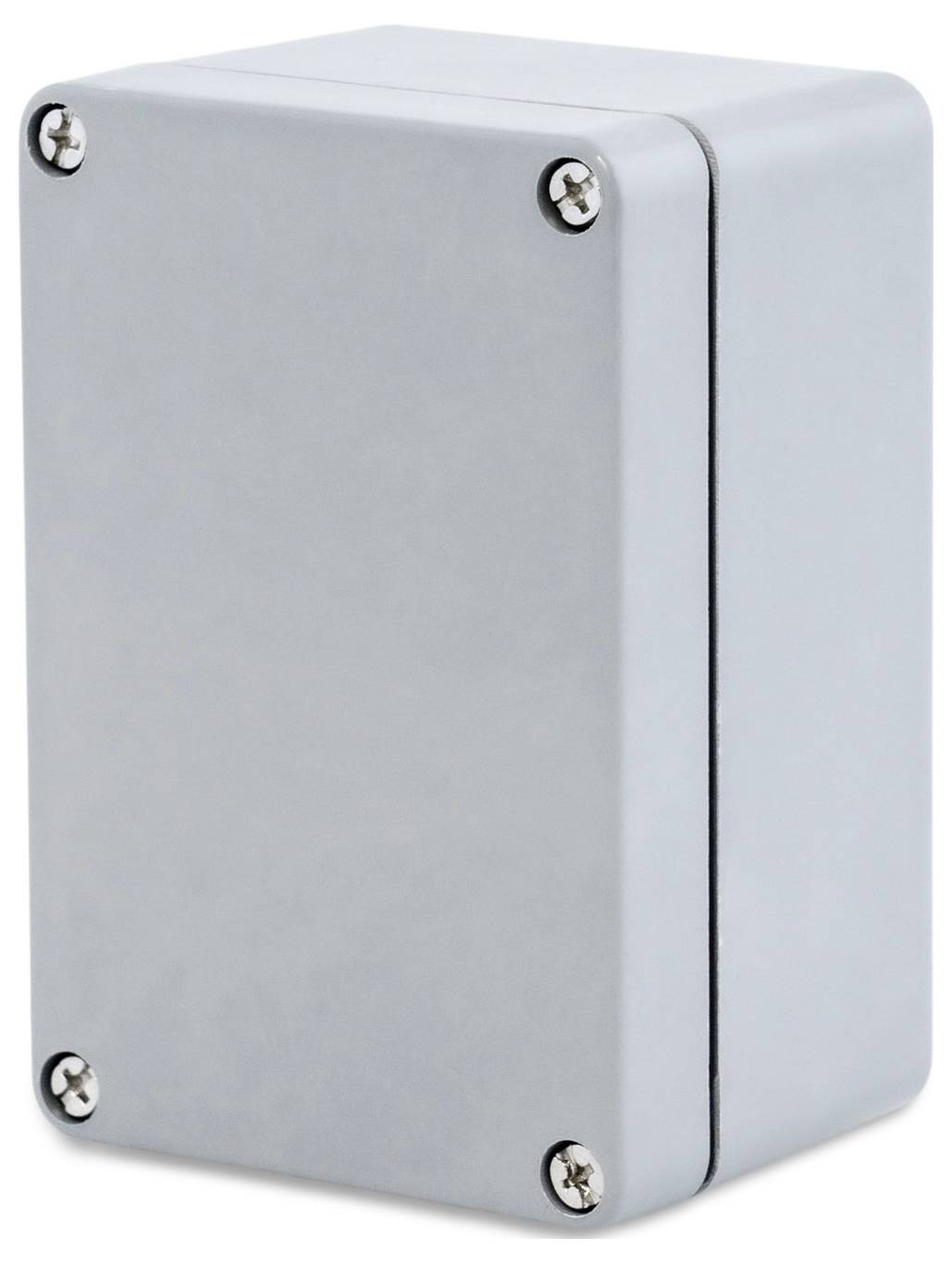

Grey, rectangular housing with screws at the four corners.

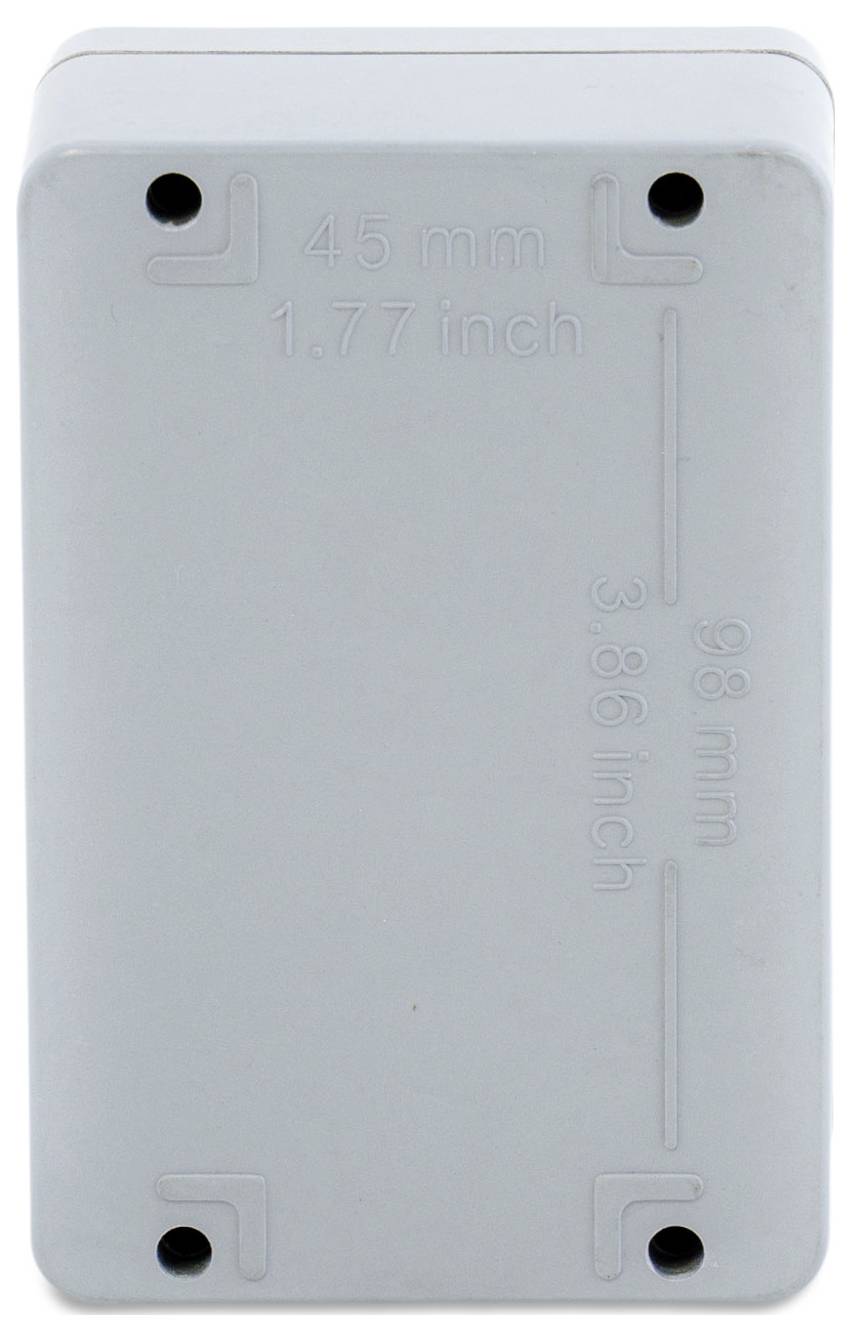

Grey rectangular plastic box with dimensions: 45 mm (1.77 inches) x 98 mm (3.86 inches).

1/5

Packaging type

Piece

Product type

Industrial-grade casing

Material

Plastic (fibreglass reinforced)

IP rating

IP66

Width

100 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour in RAL: RAL7000
Coating: No.
Material: Cover / door: Glass-reinforced plastic
Material: Lower part: Glass-reinforced plastic
Resistance: Alkalis, oils, salts, bases, solvents etc.
Cover - transparent: No.
Inner dimensions (mm): 100 x 65 x 45
UL approval: Yes
Impact strength IK 08

Packaging type: Piece

Product type: Industrial-grade casing

Features: waterproof
dust resistant
shockproof
halogen-free

Material: Plastic (fibreglass reinforced)

: IP66

Factory colour: Grey

Length: 75 mm

Width: 100 mm

Height: 55 mm

Dimensions: 100 x 65 x 45 mm

Weight: 0.326 kg

Content: 1 pc(s)

Type: Elbe Polyester grau 1107555

Dim: (L x W x H) 75 x 100 x 55 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBPOL1107555-E02-66

Halogen-free: Yes

Max. ambient temperature: 80 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404593 Boxexpert Elbe Polyester grau 1107555 Industrial-grade casing 75 x 100 x 55 Plastic (fibreglass reinforced) Grey 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3404593 Boxexpert Elbe Polyester grau 1107555 Industrial-grade casing 75 x 100 x 55 Plastic (fibreglass reinforced) Grey 1 pc(s)

Description

BOXEXPERTS Elbe polyester series offers casing for extreme environments. They are dust and water resistant thanks to IP66, while IK08 impact resistance and 18 kV/mm dielectric strength provides stability. Available in Fehgray and graphite black, they comply with UL94 V0, are halogen-free and suitable for temperatures from -40 to +80 °C.

This text is machine translated.
