Name: Boxexpert Elbe Polyester grau 22012090 Industrial-grade casing 120 x 220 x 90 x 90 Plastic (fibreglass reinforced) Grey
Brand: Boxexpert
SKU: 3404601

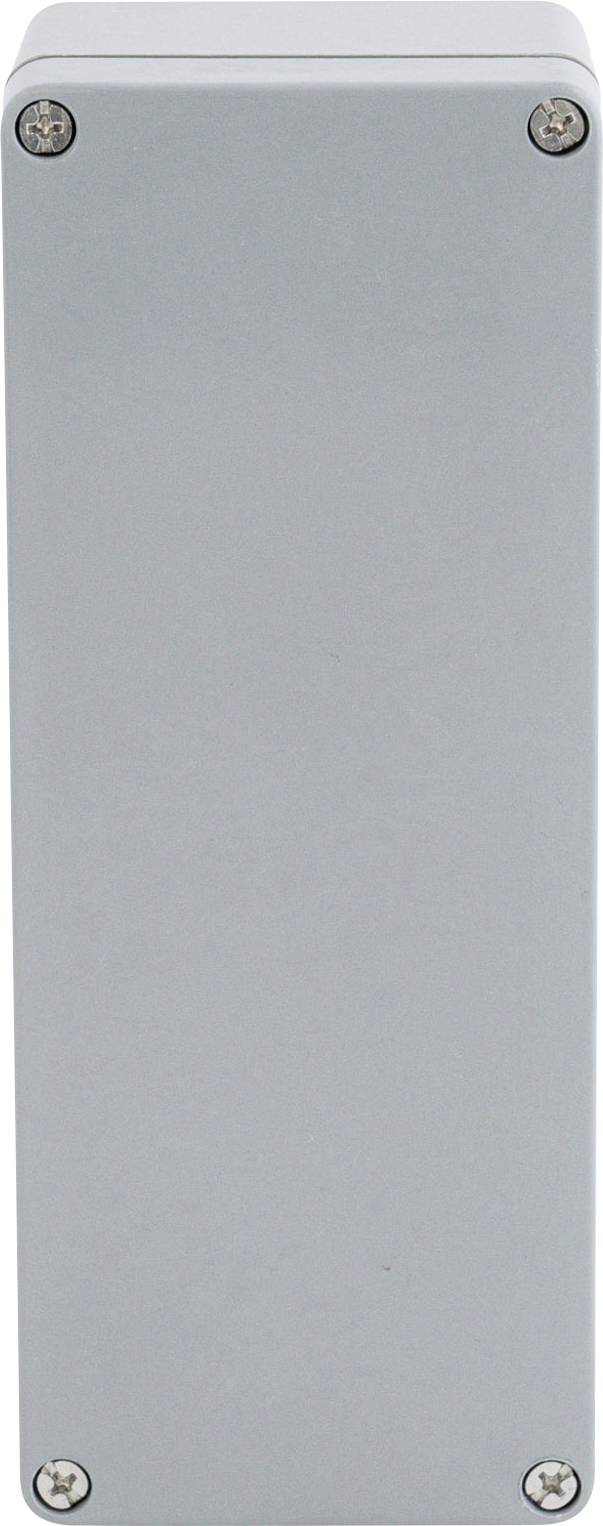

A rectangular grey enclosure with four visible screws at the corners.

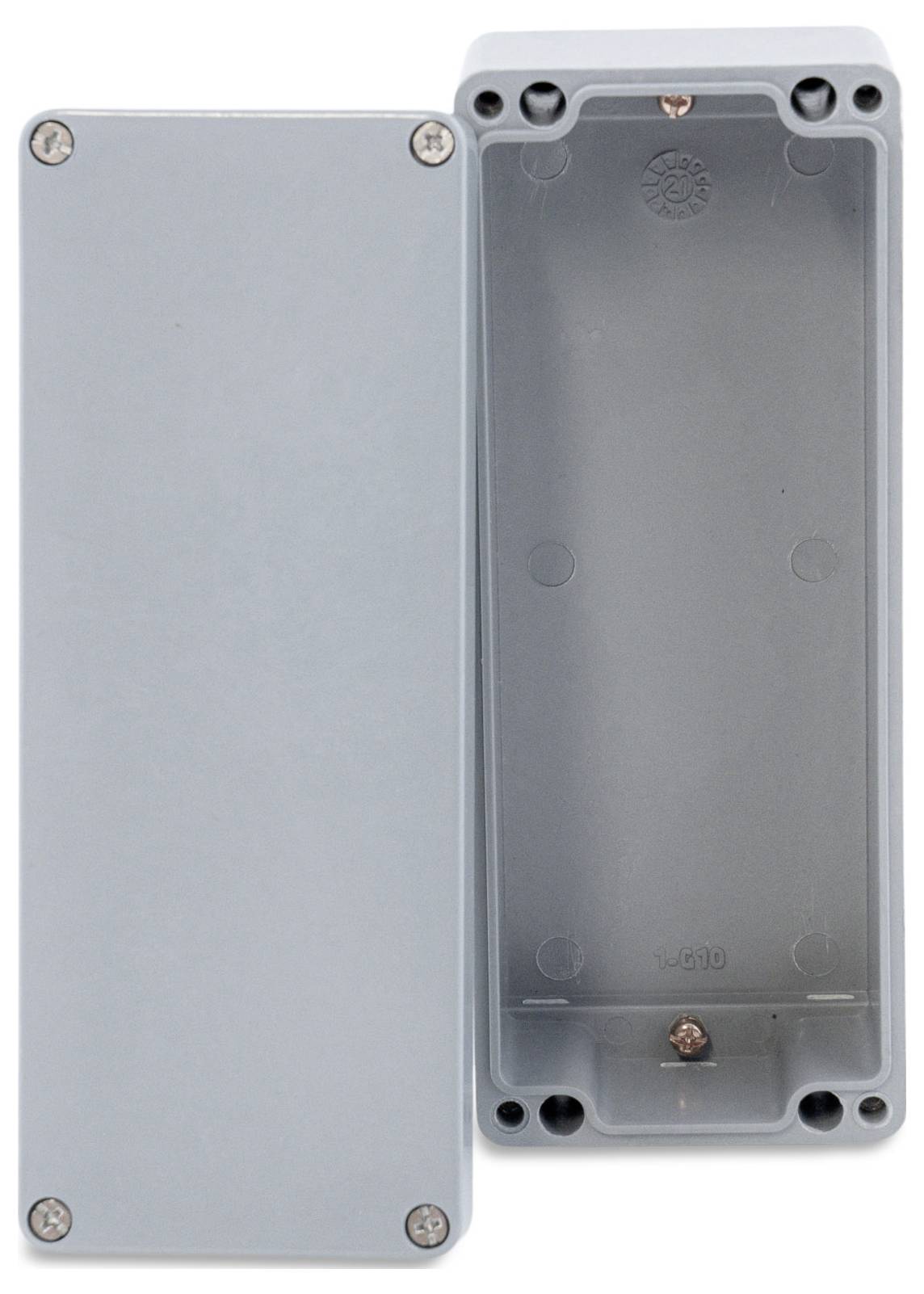

Grey rectangular plastic electrical enclosure that is open to reveal its empty interior and screws at the corners.

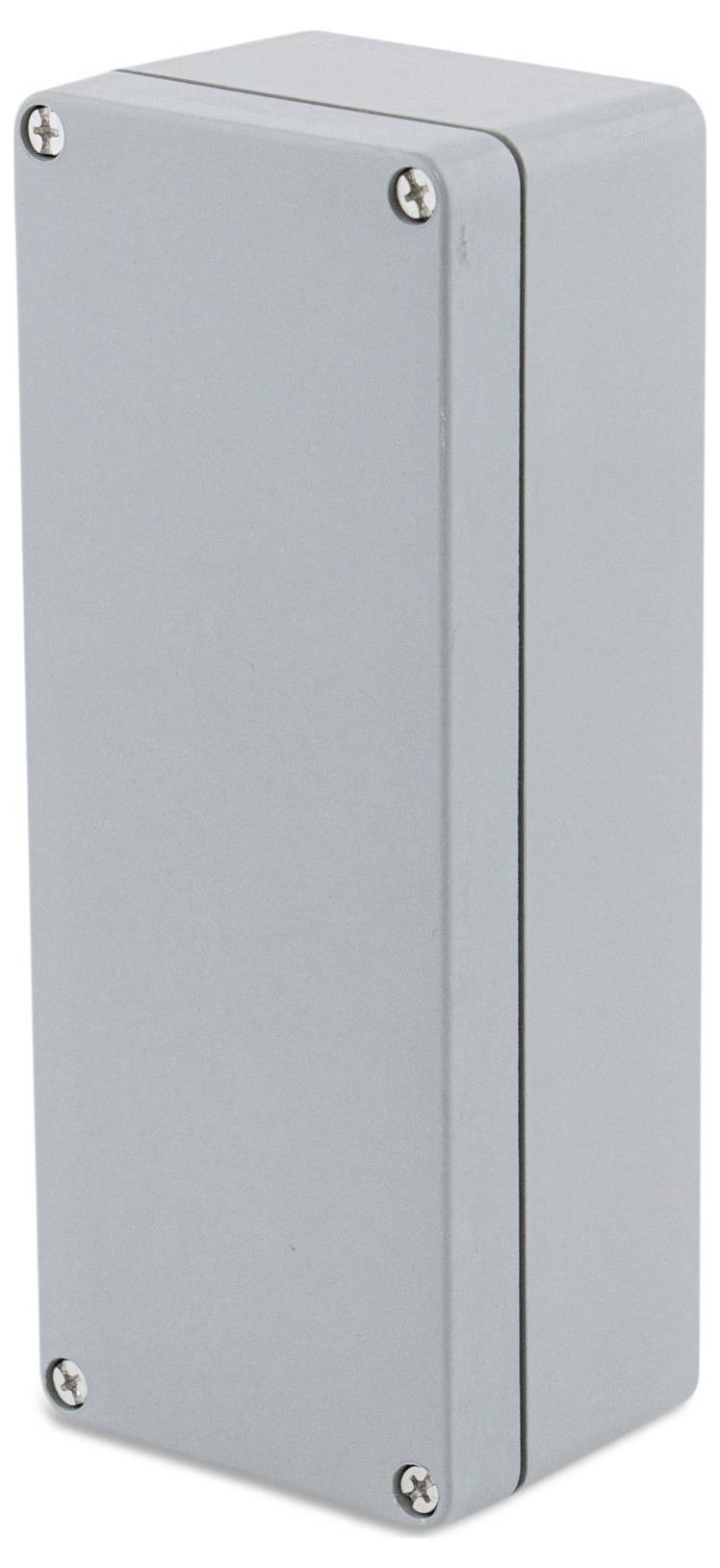

A grey, rectangular enclosure with screws at the corners, likely intended for electronic components or wiring.

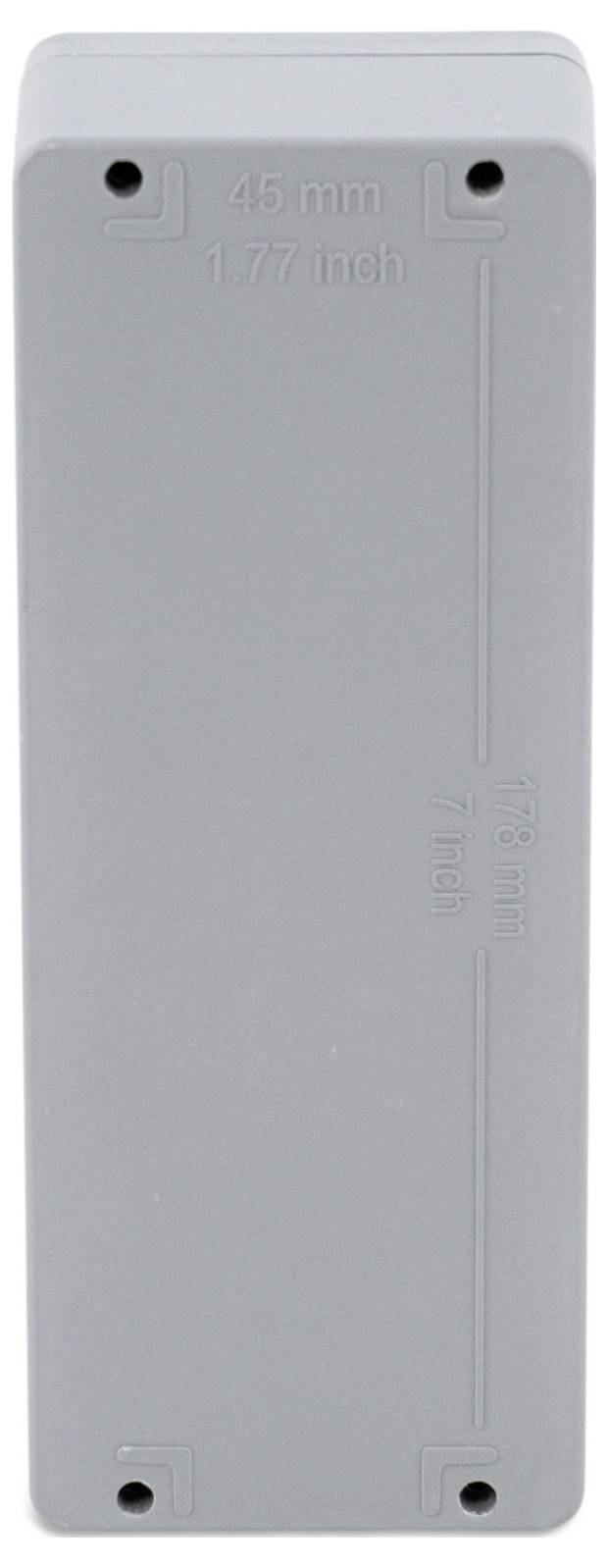

Grey plastic housing with dimensions in millimetres and inches embossed: 45 mm (1.77 inches) and 119 mm (4.7 inches).

1/4

Packaging type

Piece

Product type

Industrial-grade casing

Material

Plastic (fibreglass reinforced)

IP rating

IP66

Width

220 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour in RAL: RAL7000
Coating: No.
Material: Cover / door: Glass-reinforced plastic
Material: Lower part: Glass-reinforced plastic
Resistance: Alkalis, oils, salts, bases, solvents etc.
Cover - transparent: No.
Inner dimensions (mm): 212 x 111 x 82
UL approval: Yes
Impact strength IK 08

Packaging type: Piece

Product type: Industrial-grade casing

Features: waterproof

Material: Plastic (fibreglass reinforced)

: IP66

Factory colour: Grey

Length: 120 mm

Width: 220 mm

Height: 90 mm

Dimensions: 120 x 220 x 90 mm

Weight: 1.196 kg

Content: 1 pc(s)

Type: Elbe Polyester grau 22012090

Dim: (L x W x H) 120 x 220 x 90 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBPOL22012090-E02-66

Depth: 90 mm

Halogen-free: Yes

Max. ambient temperature: 80 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404601 Boxexpert Elbe Polyester grau 22012090 Industrial-grade casing 120 x 220 x 90 x 90 Plastic (fibreglass reinforced) Grey

User & Safety Instructions

User & Safety Instructions 3404601 Boxexpert Elbe Polyester grau 22012090 Industrial-grade casing 120 x 220 x 90 x 90 Plastic (fibreglass reinforced) Grey

Description

The housing series Elbe Polyester by BOXEXPERT combines high resistance with protection against environmental influences. Made of glass-fiber reinforced polyester, the casings with IP66 offer complete protection against dust and water. With IK08 impact resistance and dielectric strength of 18 kV/mm, they are Ideal for demanding applications. They are available in Fehgray (RAL7000) and Graphite Black (RAL9011), UL94 V0 certified, halogen free and designed for temperatures from -40 to +80 °C.

This text is machine translated.
