Name: Boxexpert Elbe Polyester schwarz 12212090 Industrial-grade casing 120 x 122 x 90 x 80 Plastic (fibreglass reinforced) Gr
Brand: Boxexpert
SKU: 3404580

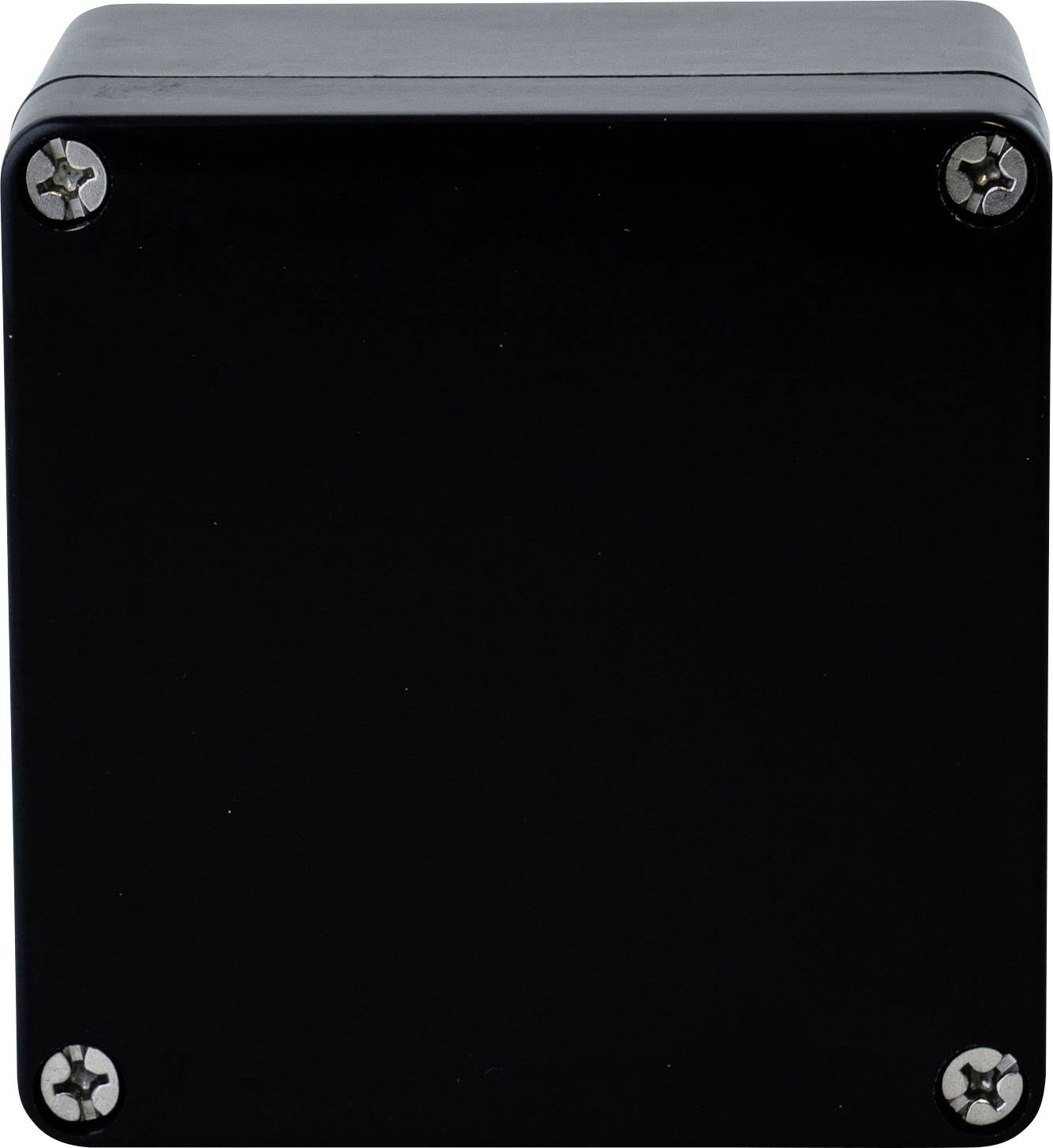

A rectangular, black enclosure with screws at the corners. It appears robust and is likely intended for protecting or housing electronic components.

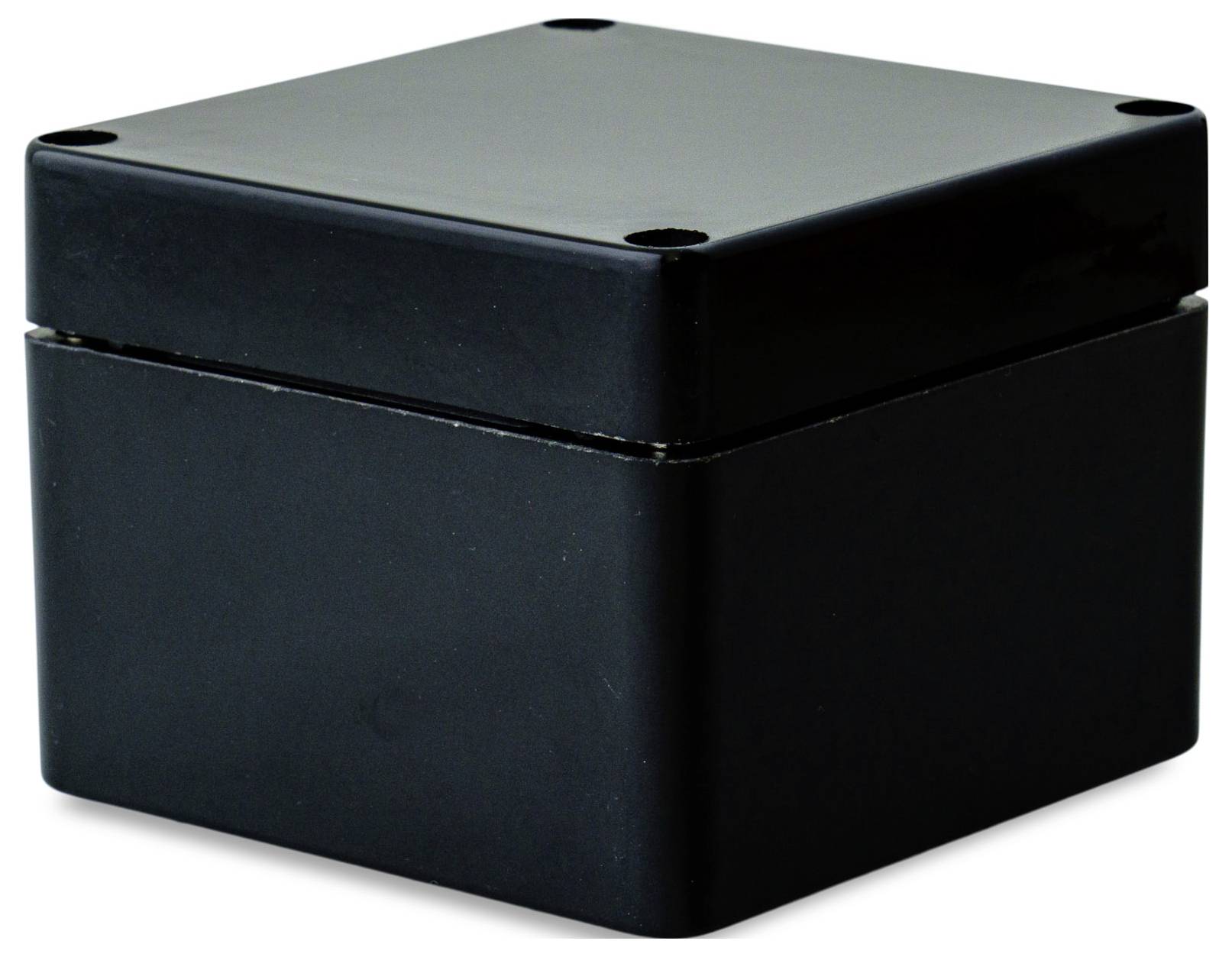

A black, square container with a removable lid, possibly a box or tin, without any visible markings.

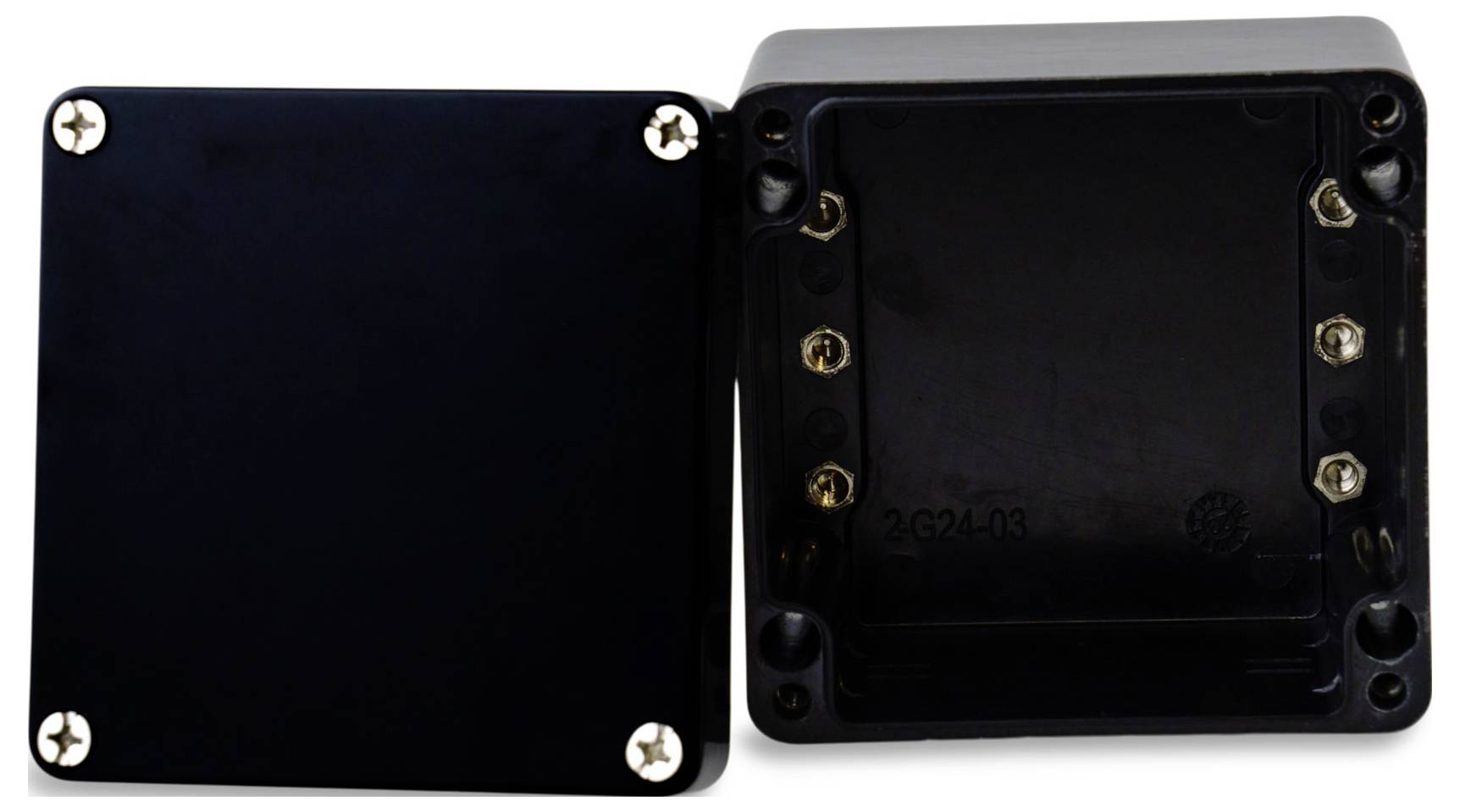

Black, square plastic casing, opened. On the left, the lid with four screws, on the right the empty inner compartment with screw holes.

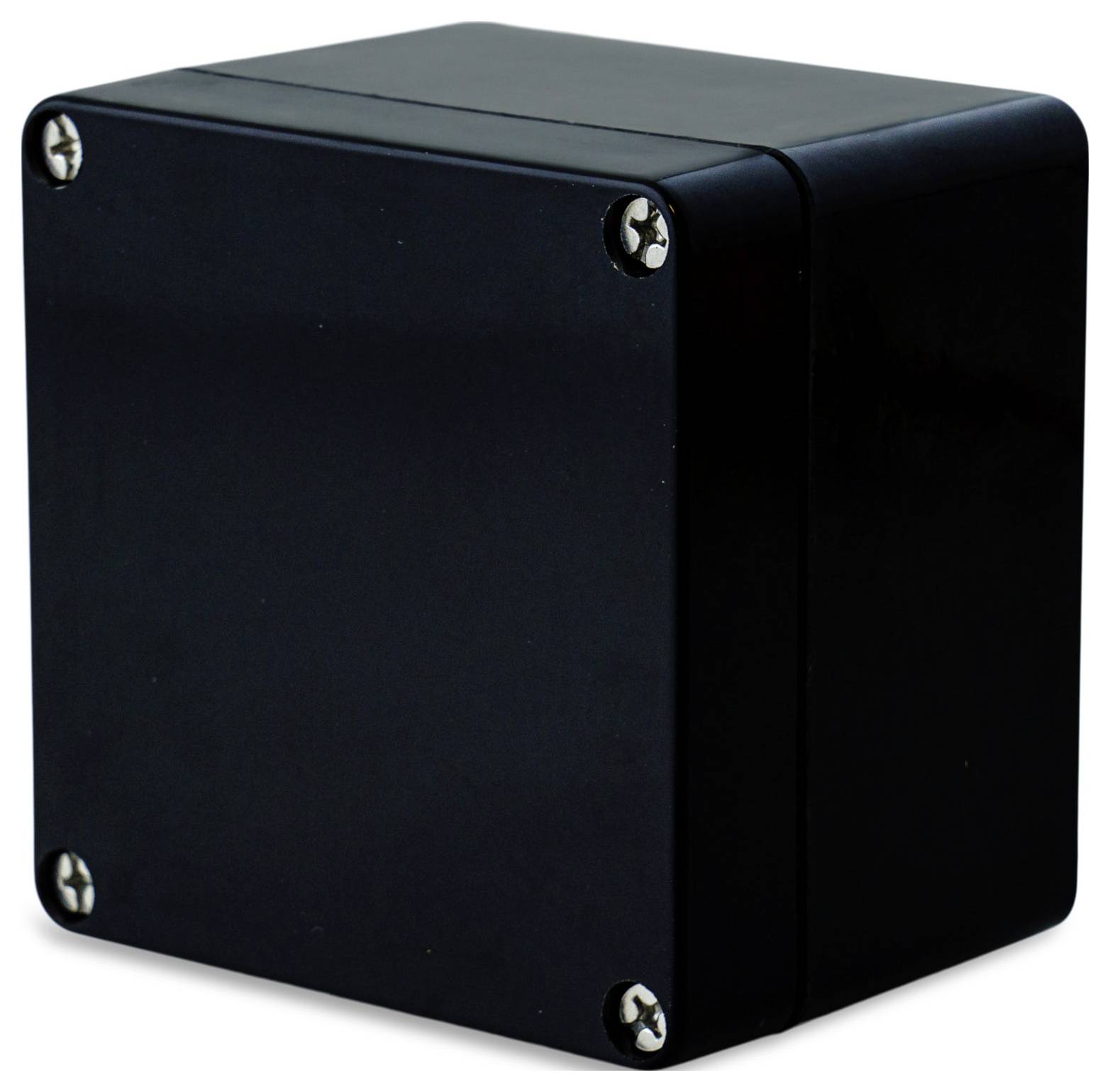

Black, square plastic box with screws at the corners.

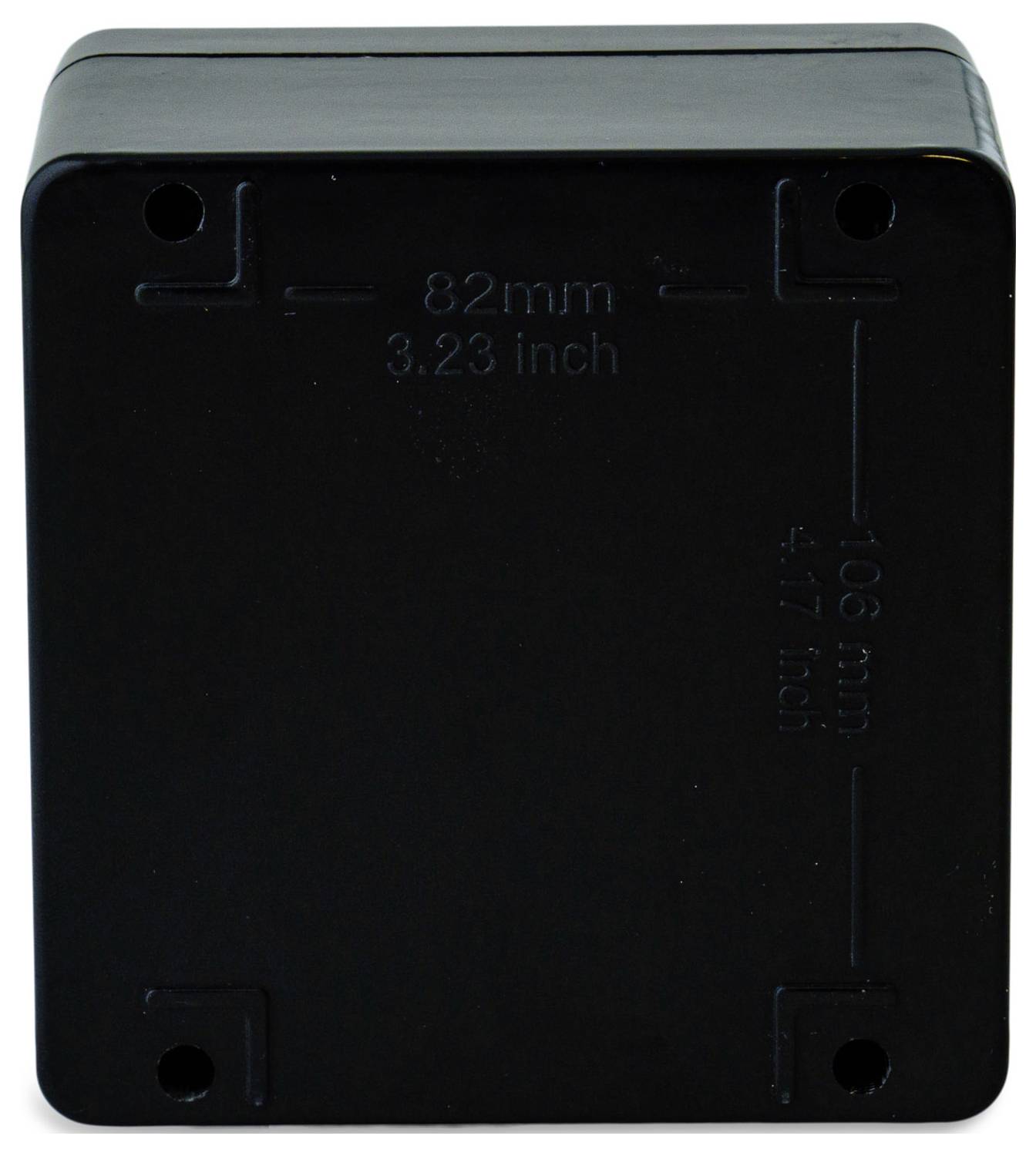

Black plastic enclosure measuring 82 mm x 106 mm, with four mounting holes at the corners.

1/5

Product type

Industrial-grade casing

Material

Plastic (fibreglass reinforced)

IP rating

IP66

Width

122 mm

Height

90 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour in RAL: RAL9011
Coating: No.
Material: Cover / door: Glass-reinforced plastic
Material: Lower part: Glass-reinforced plastic
Resistance: Alkalis, oils, salts, bases, solvents etc.
Cover - transparent: No.
Inner dimensions (mm): 112 x 111 x 80
UL approval: Yes
Impact strength IK 08

Product type: Industrial-grade casing

Features: waterproof

Material: Plastic (fibreglass reinforced)

: IP66

Factory colour: Graphite

Length: 120 mm

Width: 122 mm

Height: 90 mm

Dimensions: 112 x 111 x 80 mm

Weight: 0.74 kg

Content: 1 pc(s)

Type: Elbe Polyester schwarz 12212090

Dim: (L x W x H) 120 x 122 x 90 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBPOL12212090-E01-66

Depth: 80 mm

Halogen-free: Yes

Max. ambient temperature: 80 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404580 Boxexpert Elbe Polyester schwarz 12212090 Industrial-grade casing 120 x 122 x 90 x 80 Plastic (fibreglass reinforced) Gr

User & Safety Instructions

User & Safety Instructions 3404580 Boxexpert Elbe Polyester schwarz 12212090 Industrial-grade casing 120 x 122 x 90 x 80 Plastic (fibreglass reinforced) Gr

Description

The Elbe Polyester series from BOXEXPERT stands for robust housings made of glass-fiber reinforced polyester, which were developed for industrial applications. The IP66 certification ensures optimum protection against dust and water, while the impact resistance of IK08 compensates for mechanical loads. With a dielectric strength of 18 kV/mm, they are Ideal for high-voltage ranges. Available in Fehgray (RAL7000) and Graphite Black (RAL9011), they meet the flammability class V0 according to UL94 and are halogen free. The material can withstand temperatures from -40 to +80 °C and provides reliable safety.

This text is machine translated.
