Name: Boxexpert Elbe Polyester schwarz 1907555 Industrial-grade casing 75 x 190 x 55 Plastic (fibreglass reinforced) Graphite
Brand: Boxexpert
SKU: 3404584

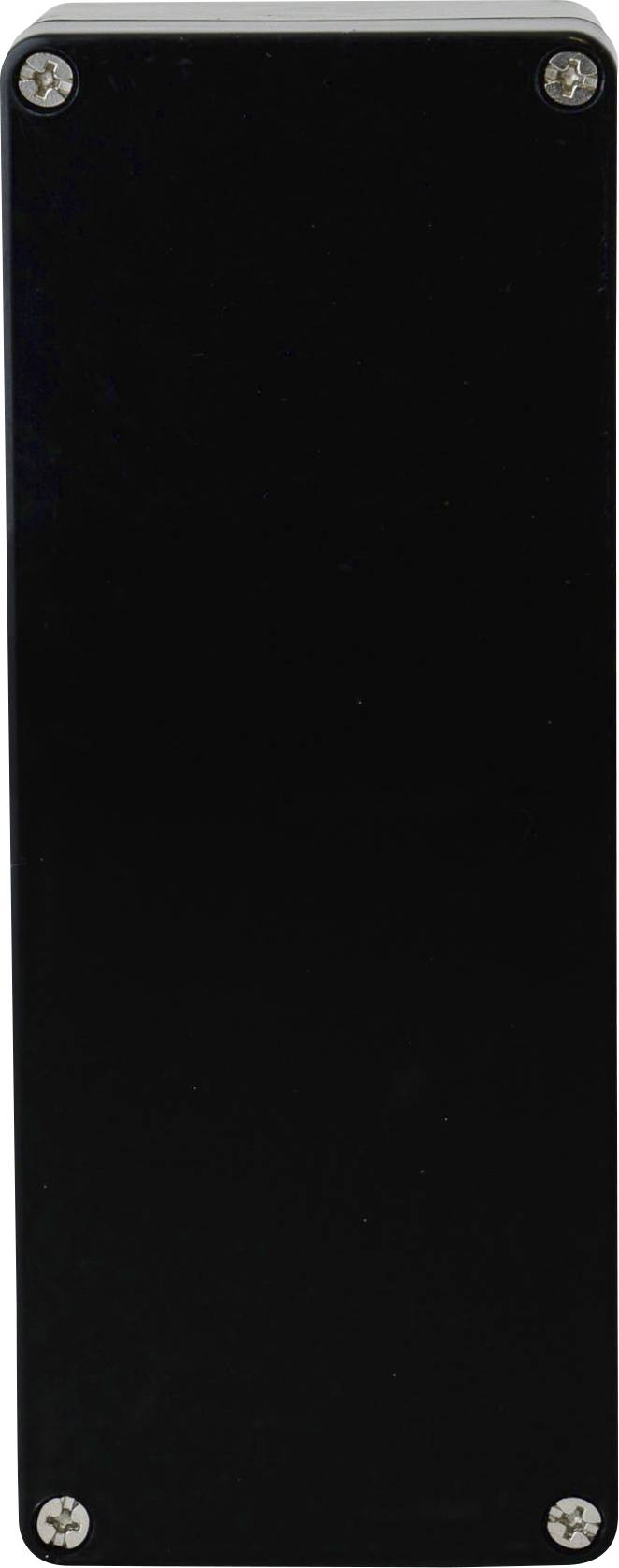

Rectangular black enclosure with visible screws at the corners.

Rectangular black plastic enclosure used for electronic assembly. It has four visible screw holes.

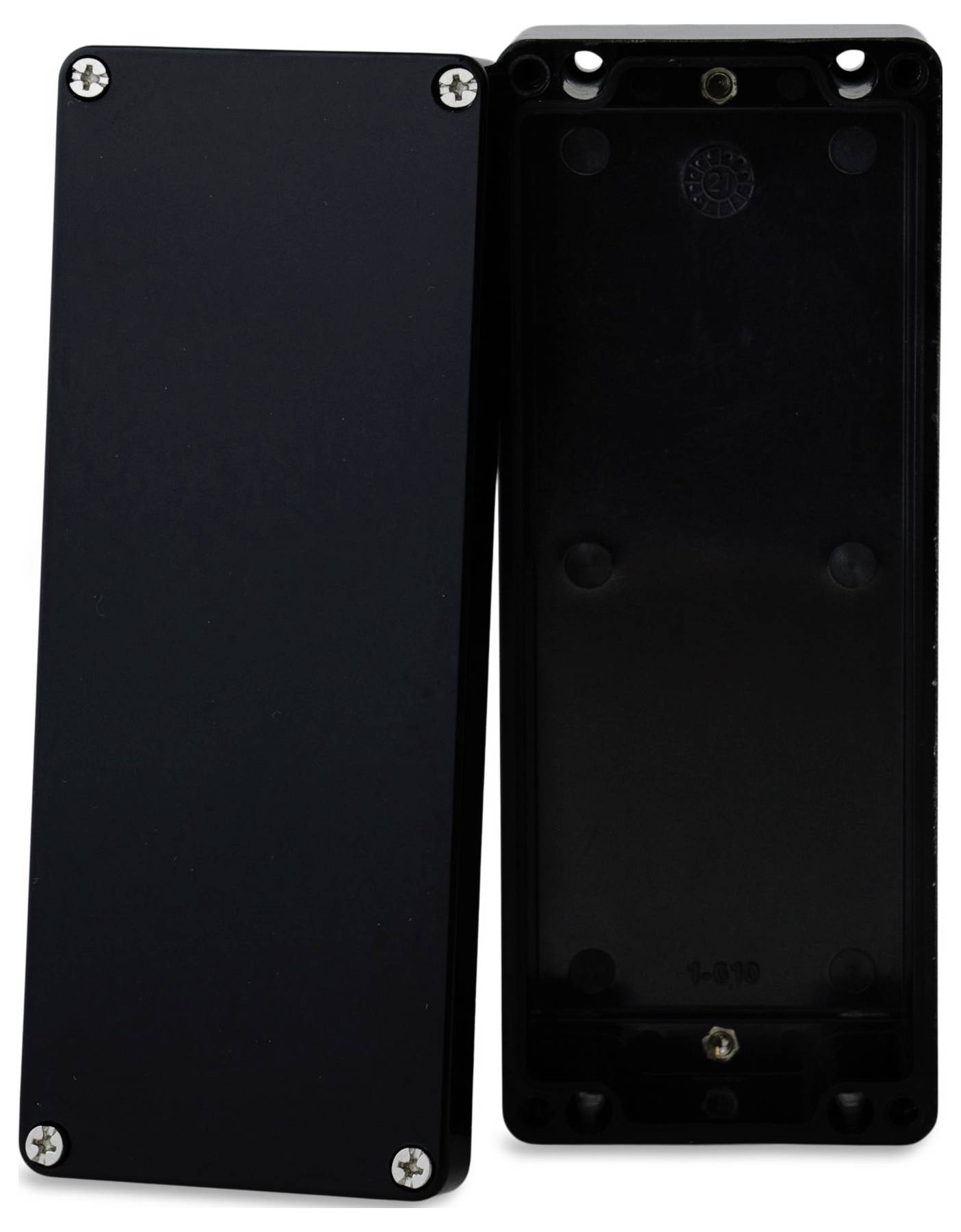

Two black rectangular covers with screws, one concealed, one exposed.

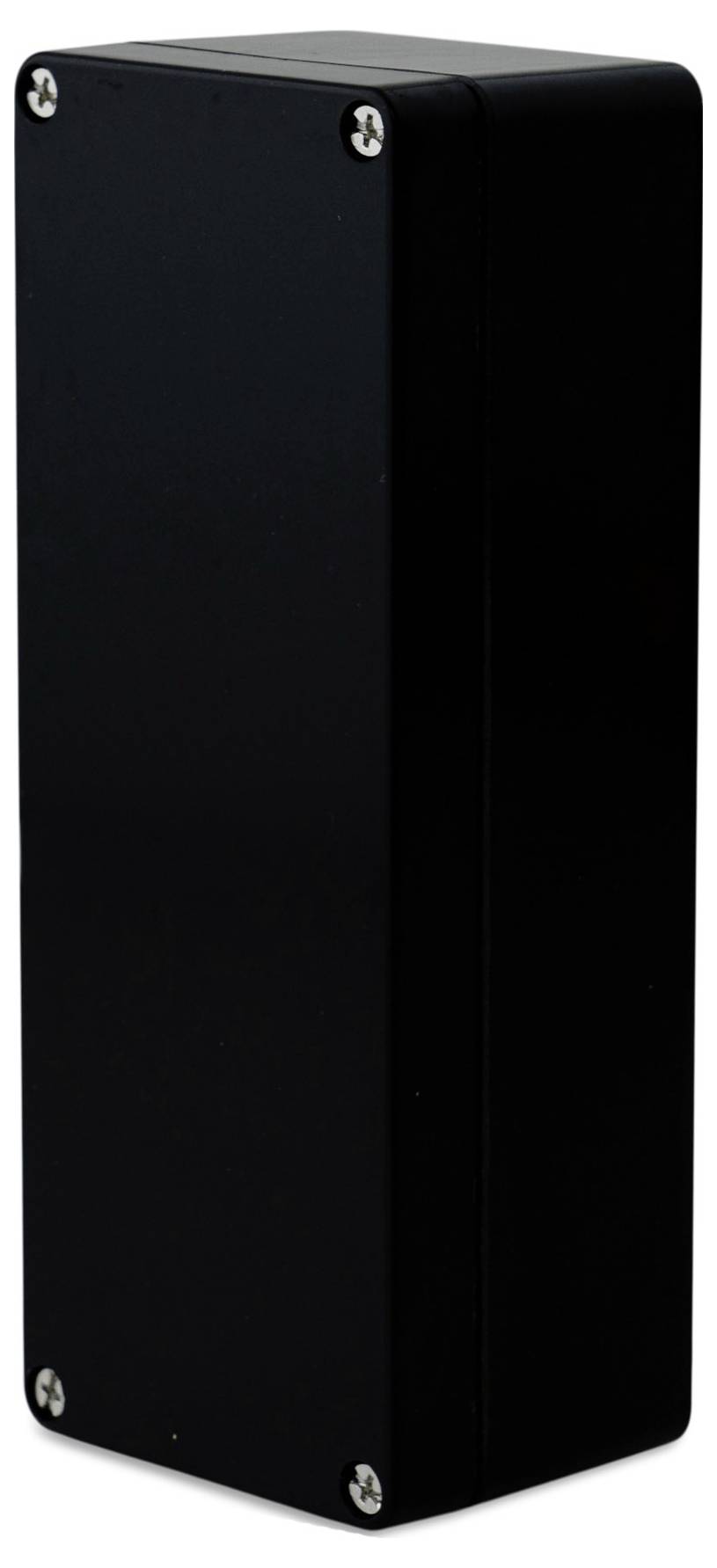

Black, rectangular plastic enclosure with four screws at the corners.

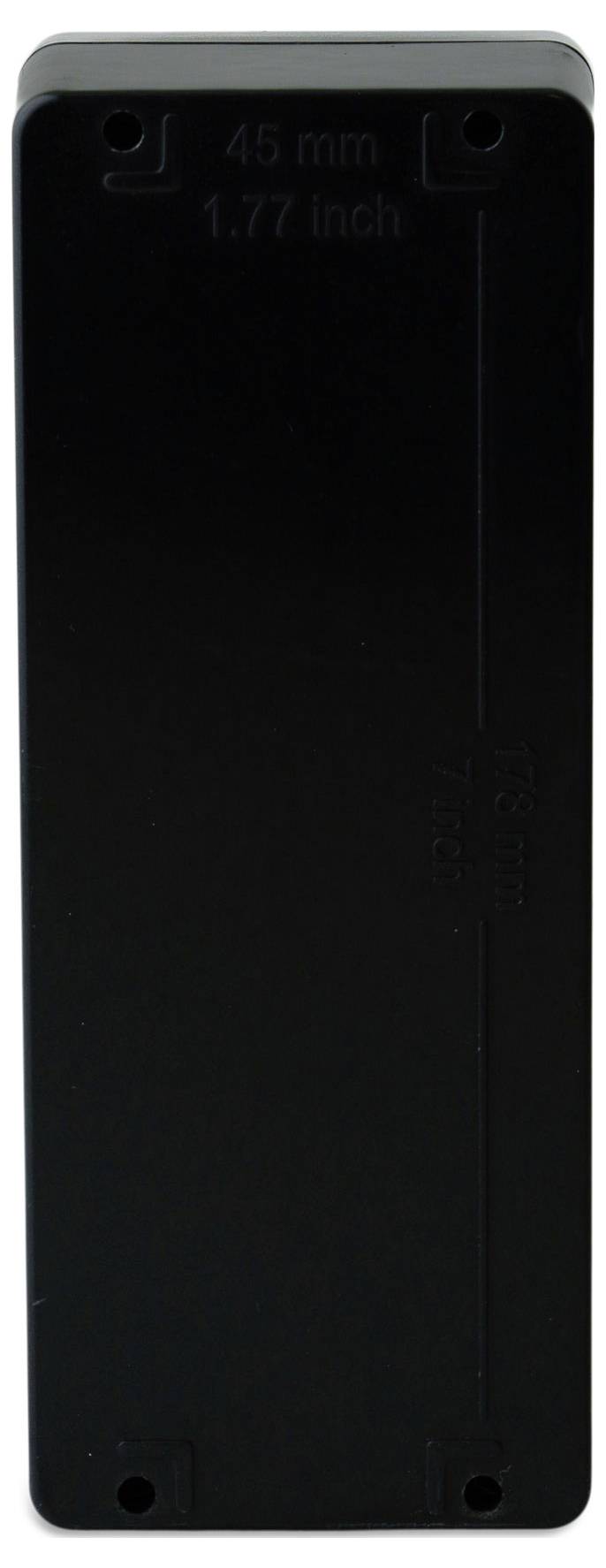

A rectangular, black enclosure measuring 45 mm or 1.77 inches, with no visible openings or connections.

1/5

Product type

Industrial-grade casing

Material

Plastic (fibreglass reinforced)

IP rating

IP66

Width

190 mm

Height

55 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour in RAL: RAL9011
Coating: No.
Material: Cover / door: Glass-reinforced plastic
Material: Lower part: Glass-reinforced plastic
Resistance: Alkalis, oils, salts, bases, solvents etc.
Cover - transparent: No.
Inner dimensions (mm): 180 x 65 x 45
UL approval: Yes
Impact strength IK 08

Product type: Industrial-grade casing

Features: waterproof

Material: Plastic (fibreglass reinforced)

: IP66

Factory colour: Graphite

Length: 75 mm

Width: 190 mm

Height: 55 mm

Dimensions: 180 x 65 x 45 mm

Weight: 0.506 kg

Content: 1 pc(s)

Type: Elbe Polyester schwarz 1907555

Dim: (L x W x H) 75 x 190 x 55 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBPOL1907555-E01-66

Halogen-free: Yes

Max. ambient temperature: 80 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404584 Boxexpert Elbe Polyester schwarz 1907555 Industrial-grade casing 75 x 190 x 55 Plastic (fibreglass reinforced) Graphite

User & Safety Instructions

User & Safety Instructions 3404584 Boxexpert Elbe Polyester schwarz 1907555 Industrial-grade casing 75 x 190 x 55 Plastic (fibreglass reinforced) Graphite

Description

The BOXEXPERT Elbe polyester series offers robust industrial casing made of glass-fiber reinforced polyester for the interior and exterior application. They have an IP66 protection class, which protects against dust and water. With an impact strength of IK08 and a dielectric strength of 18 kV/mm, they are ideal for high voltage applications. Available in Fehgray (RAL7000) and Graphite Black (RAL9011), they meet the UL94 V0 flammability class, are halogen free and suitable for temperatures from -40 to +80 °C.

This text is machine translated.
