Name: Boxexpert Elbe Polyester schwarz 255250120 Industrial-grade casing 250 x 255 x 120 x 120 Plastic (fibreglass reinforced)
Brand: Boxexpert
SKU: 3404587

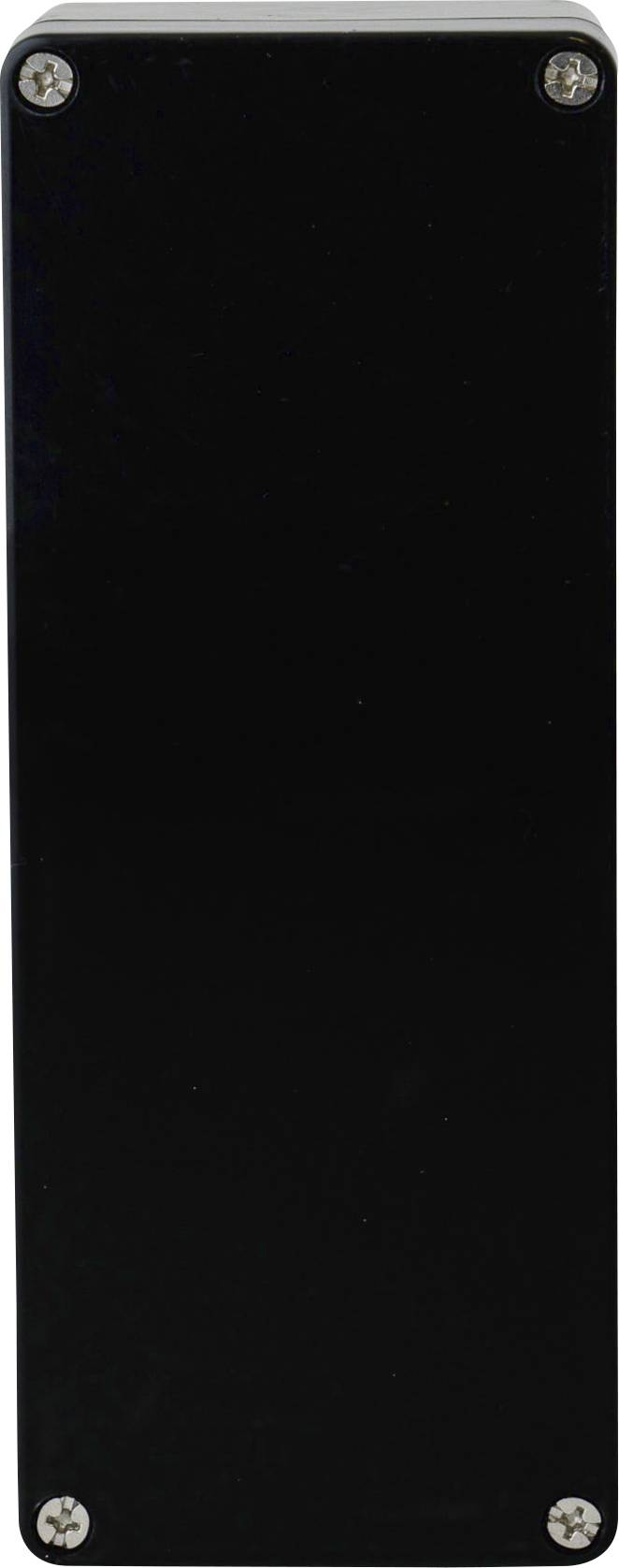

A black rectangular box with four visible screws at the corners.

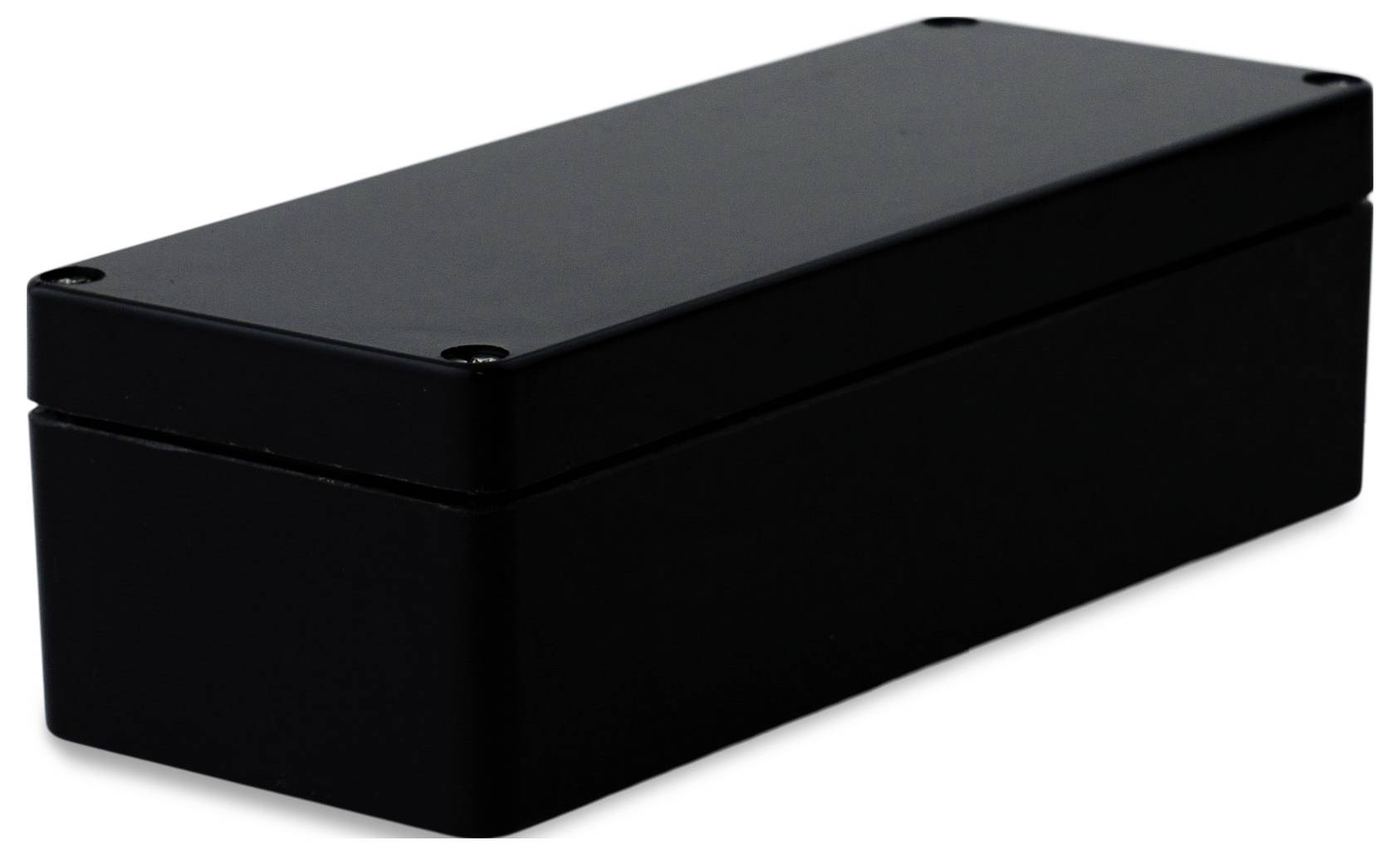

A rectangular, black plastic enclosure with rounded edges and four screw holes in the corners, situated on a white surface.

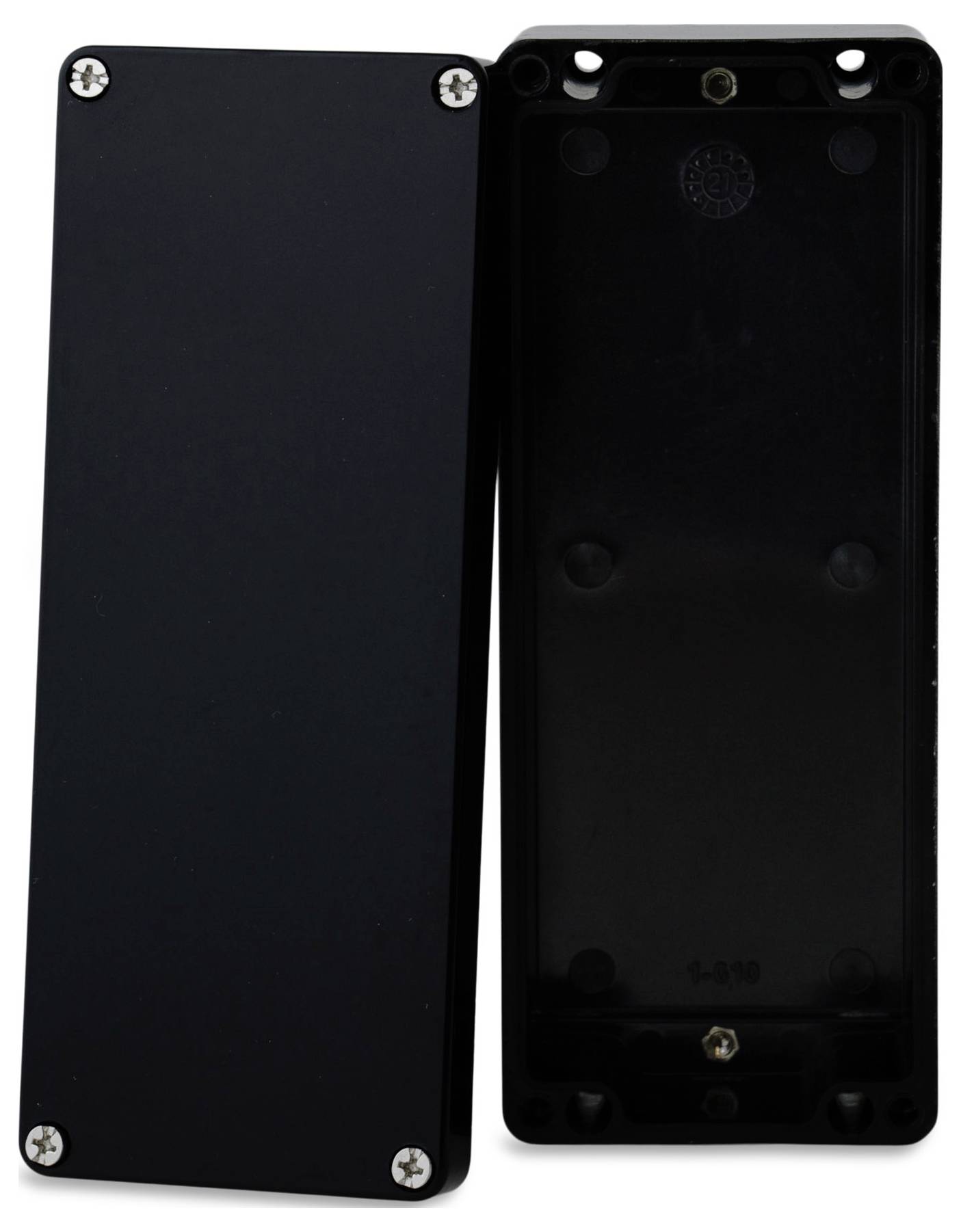

A black, rectangular cover next to an open cover with screws at the corners, possibly for an electronic device.

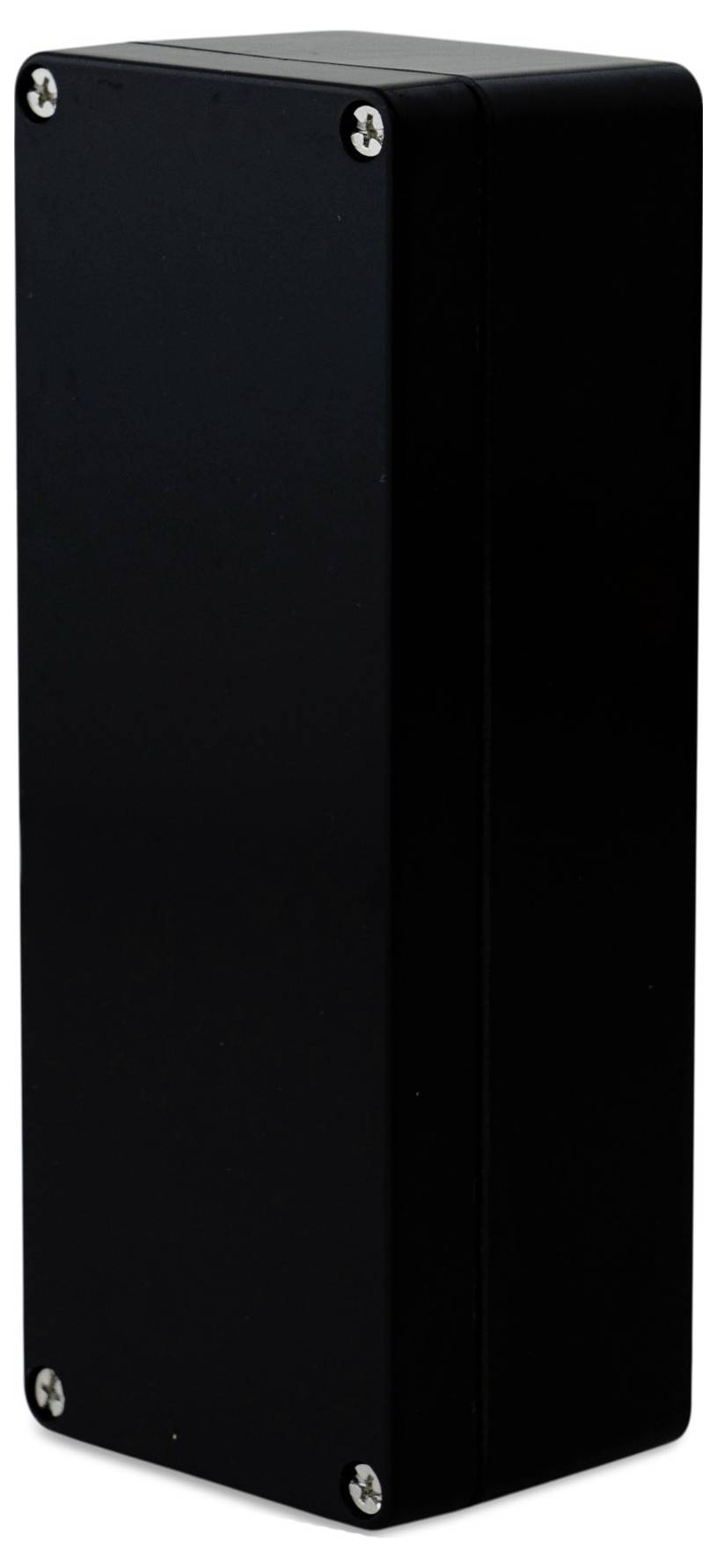

Black, rectangular housing with screws at the corners.

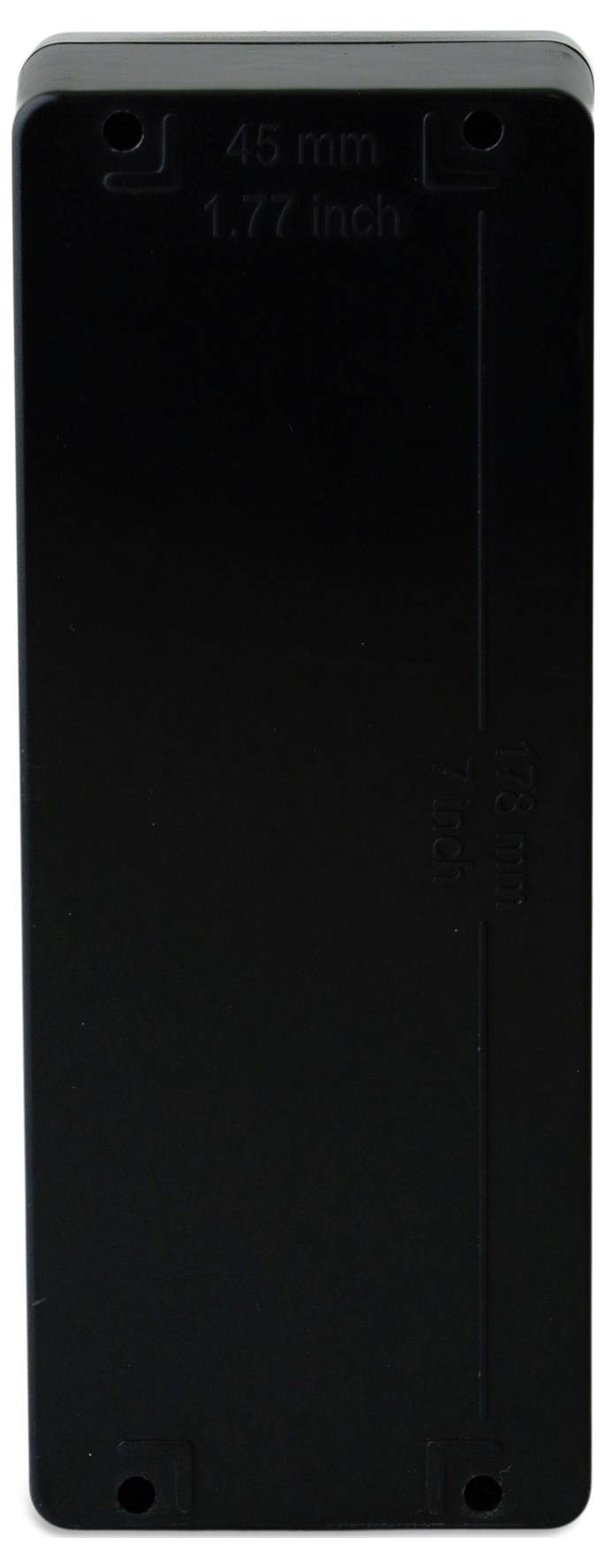

Black rectangular plastic enclosure, vertically oriented. '45 mm' and '1.77 inch' are engraved on the top surface.

1/5

Product type

Industrial-grade casing

Material

Plastic (fibreglass reinforced)

IP rating

IP66

Width

255 mm

Height

120 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour in RAL: RAL9011
Coating: No.
Material: Cover / door: Glass-reinforced plastic
Material: Lower part: Glass-reinforced plastic
Resistance: Alkalis, oils, salts, bases, solvents etc.
Cover - transparent: No.
Inner dimensions (mm): 243 x 238 x 111
UL approval: Yes
Impact strength IK 08

Product type: Industrial-grade casing

Features: shockproof

Material: Plastic (fibreglass reinforced)

: IP66

Factory colour: Graphite

Length: 250 mm

Width: 255 mm

Height: 120 mm

Dimensions: 250 x 255 x 120 mm

Weight: 3.042 kg

Content: 1 pc(s)

Type: Elbe Polyester schwarz 255250120

Dim: (L x W x H) 250 x 255 x 120 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBPOL255250120-E01-66

Depth: 120 mm

Halogen-free: Yes

Max. ambient temperature: 80 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404587 Boxexpert Elbe Polyester schwarz 255250120 Industrial-grade casing 250 x 255 x 120 x 120 Plastic (fibreglass reinforced)

User & Safety Instructions

User & Safety Instructions 3404587 Boxexpert Elbe Polyester schwarz 255250120 Industrial-grade casing 250 x 255 x 120 x 120 Plastic (fibreglass reinforced)

Description

The BOXEXPERT Elbe Polyester series offers industrial housing made of glass-fiber reinforced polyester with IP66 protection for demanding applications. They are shock resistant (IK08), high voltage resistant (18 kV/mm) and in Fehgray (RAL7000) and graphite black (RAL9011) available. The housings conform to the UL94 V0 flammability class, are halogen-free and suitable for temperatures between -40 and +80 °C.

This text is machine translated.
