Name: Boxexpert Treva grau 700500200 Wall-mount enclosure 500 x 700 x 200 x 200 Steel plate Light grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404573

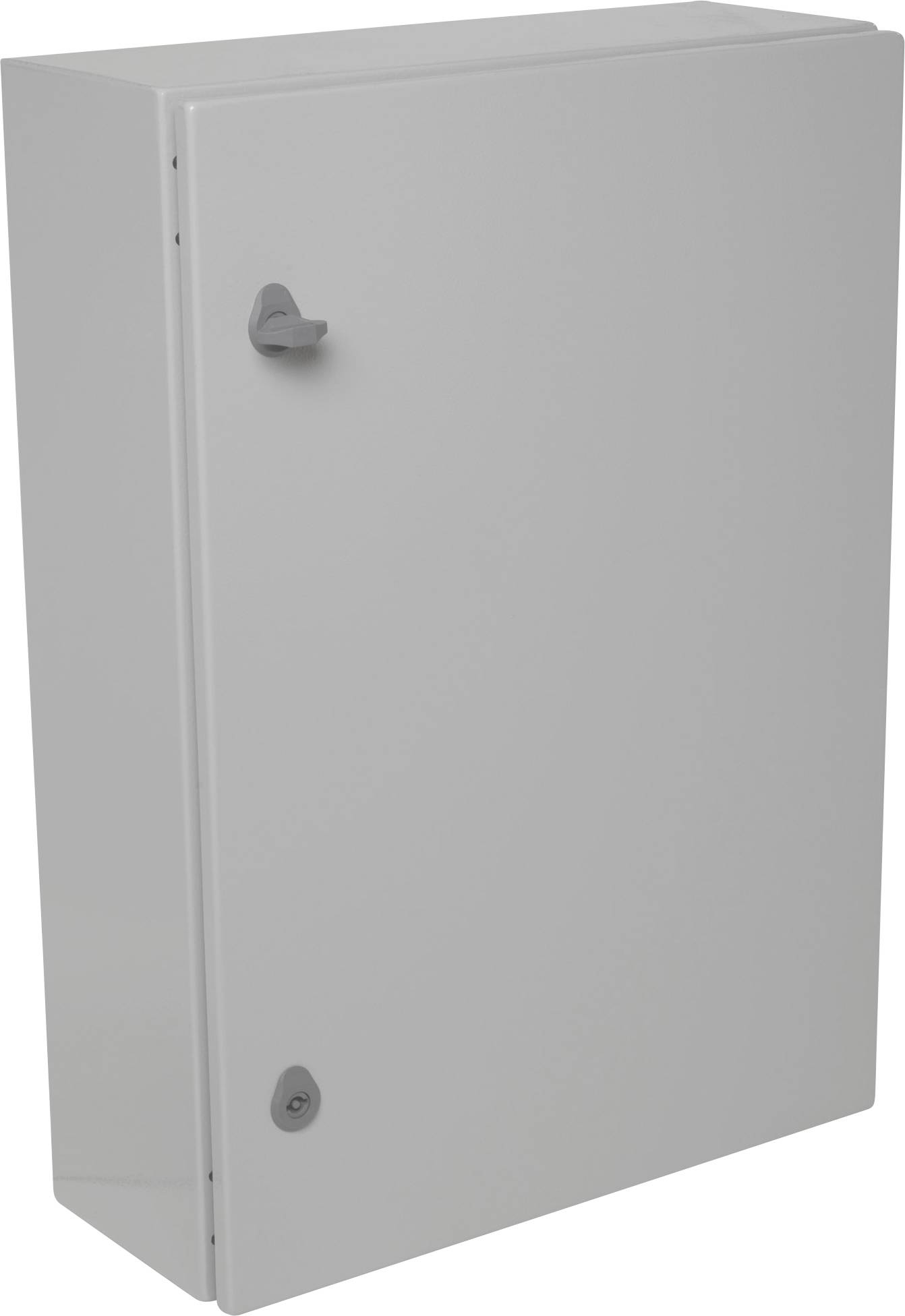

A grey, sealed metal cabinet with two handles, used for the secure storage of electrical equipment.

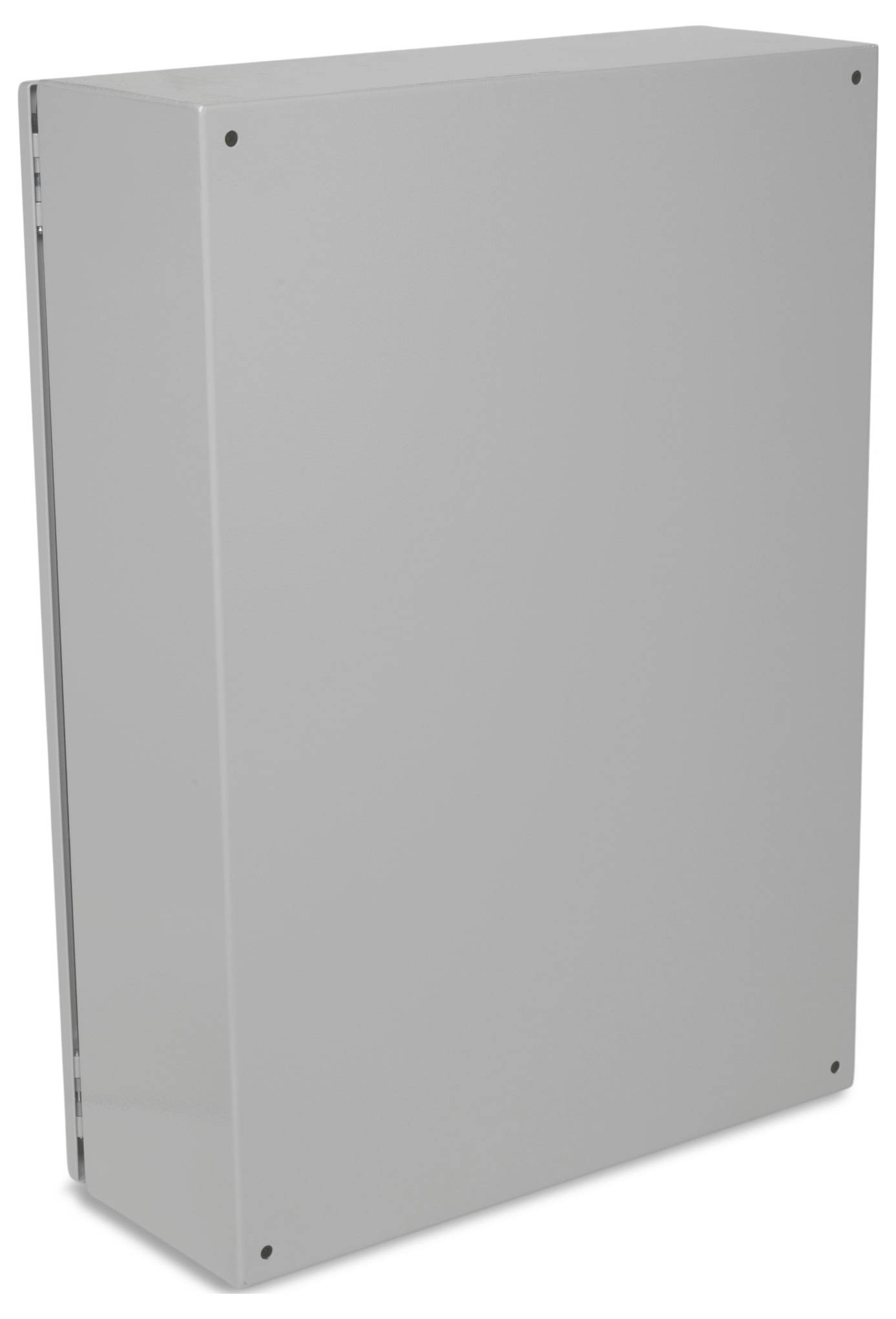

Grey rectangular metal enclosure with screws in the corners, designed to protect electrical equipment or junction boxes.

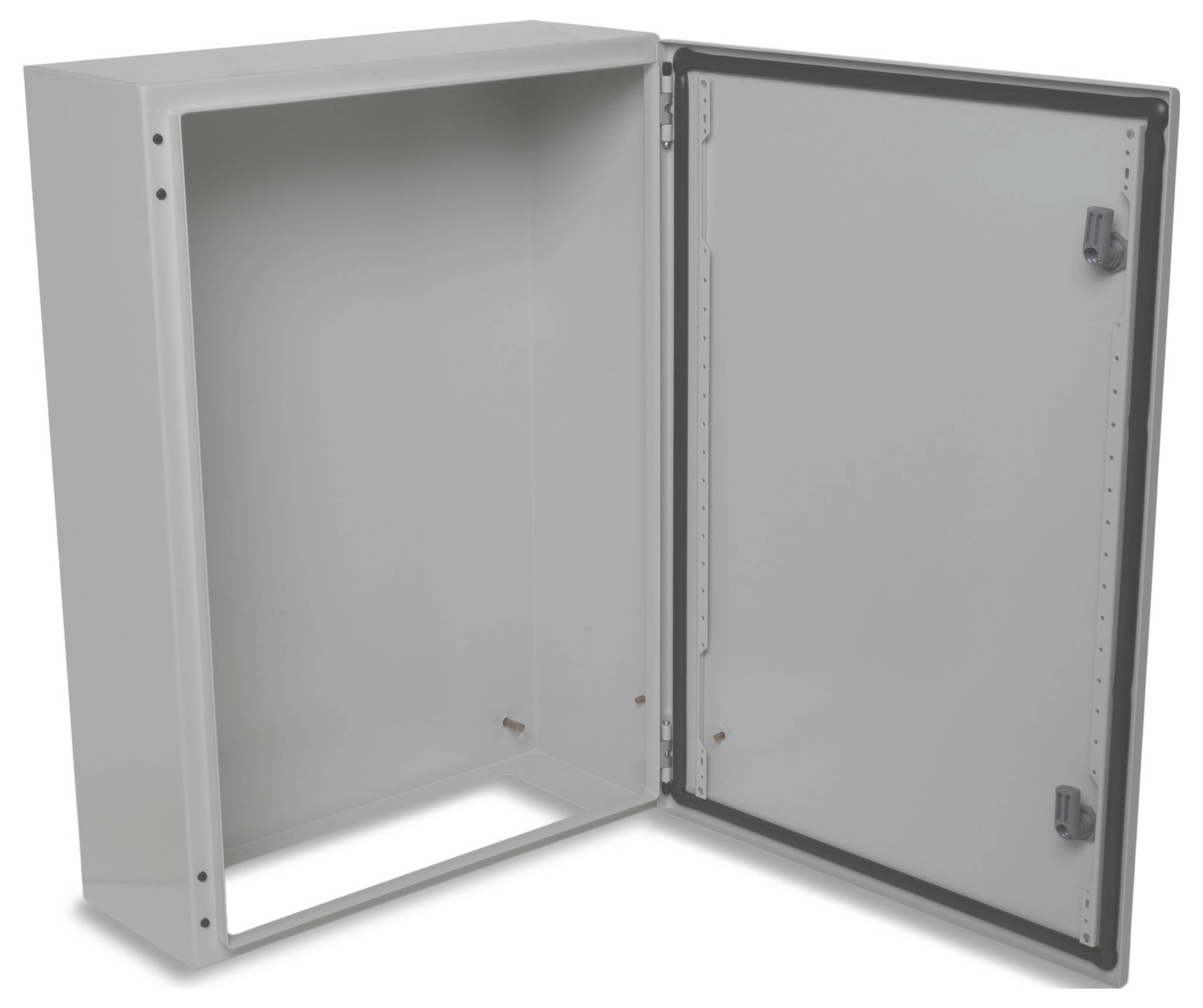

Metal cabinet with an open door, showing an empty interior. Used for storing electrical or technical equipment.

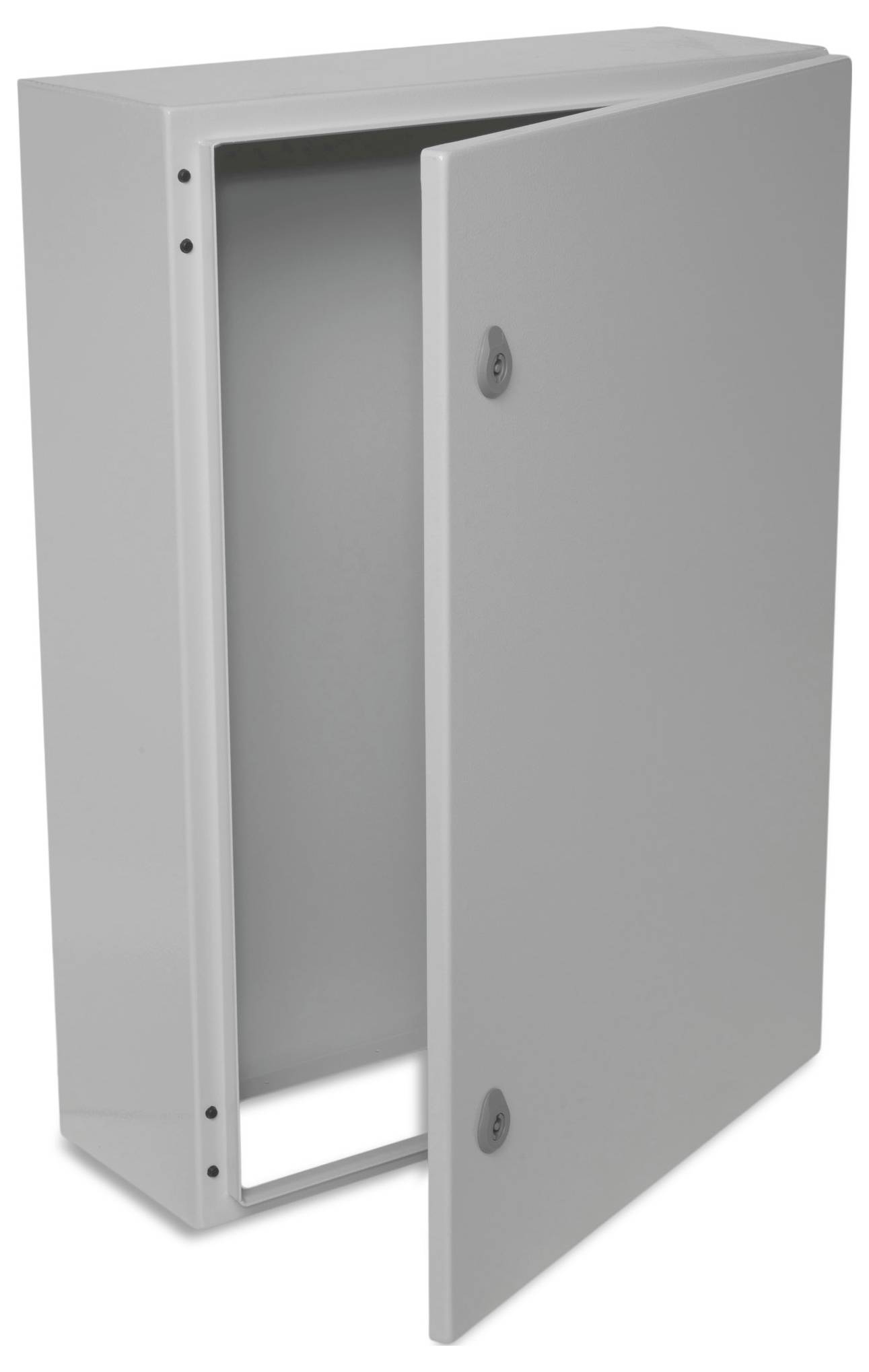

Grey painted metal cabinet with an open door. Ideal for protecting electrical components in industrial environments.

1/4

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

700 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
5 mm double bit lock, 2-point lock
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 654 x 454 x 179
UL approval: No.
Impact strength: IK10

Packaging type: Piece

Product type: Wall-mount enclosure

Features: Double sided ward

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 500 mm

Width: 700 mm

Height: 200 mm

Dimensions: 500 x 700 x 200 mm

Weight: 22.8 kg

Content: 1 pc(s)

Type: Treva grau 700500200

Dim: (L x W x H) 500 x 700 x 200 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB705020-T01

Depth: 200 mm

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404573 Boxexpert Treva grau 700500200 Wall-mount enclosure 500 x 700 x 200 x 200 Steel plate Light grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404573 Boxexpert Treva grau 700500200 Wall-mount enclosure 500 x 700 x 200 x 200 Steel plate Light grey 1 pc(s) Piece

Description

The BOXEXPERT Treva series offers a clever combination of high quality and economy. Made from steel sheet with UV-protected polyester coating, the housings are ideal for outdoor use. Pre-punched holes and a smooth mounting plate ensure quick and safe installation.
