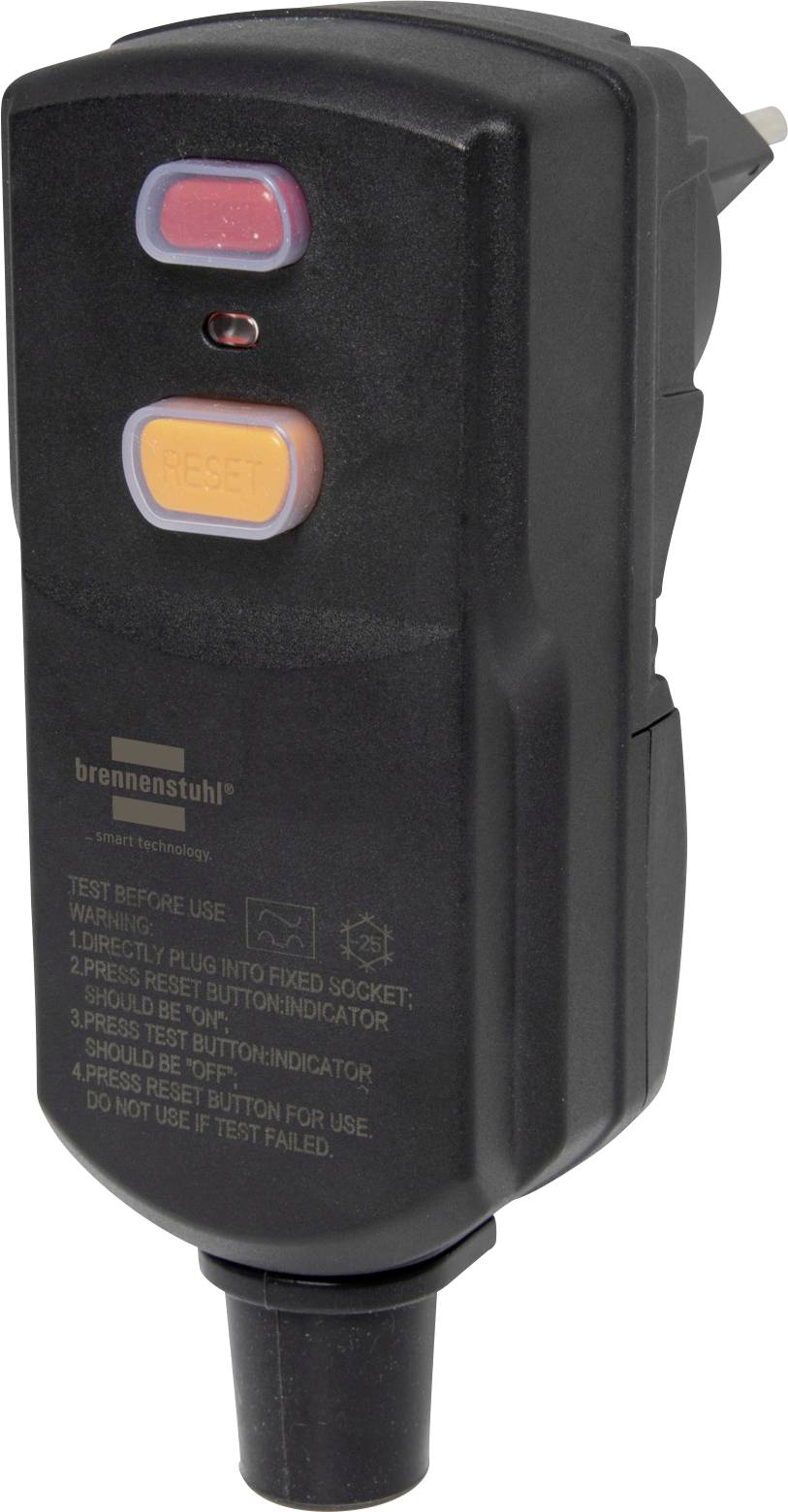

Brennenstuhl 1290732 RCCB in-line socket 230 V Black IP55
EAN:
Part number:
Item no:
Product type
RCCB in-line socket
Nominal voltage
230 V
Load (max.)
10 A
Connector version
angled
Factory colour
Black
Datasheet (PDF)
Highlights & Details
Personal protection-plug PD29A IP55 *CH*
Technical specifications
- With FI switch: Yes
- Rated fault power: 30 mA

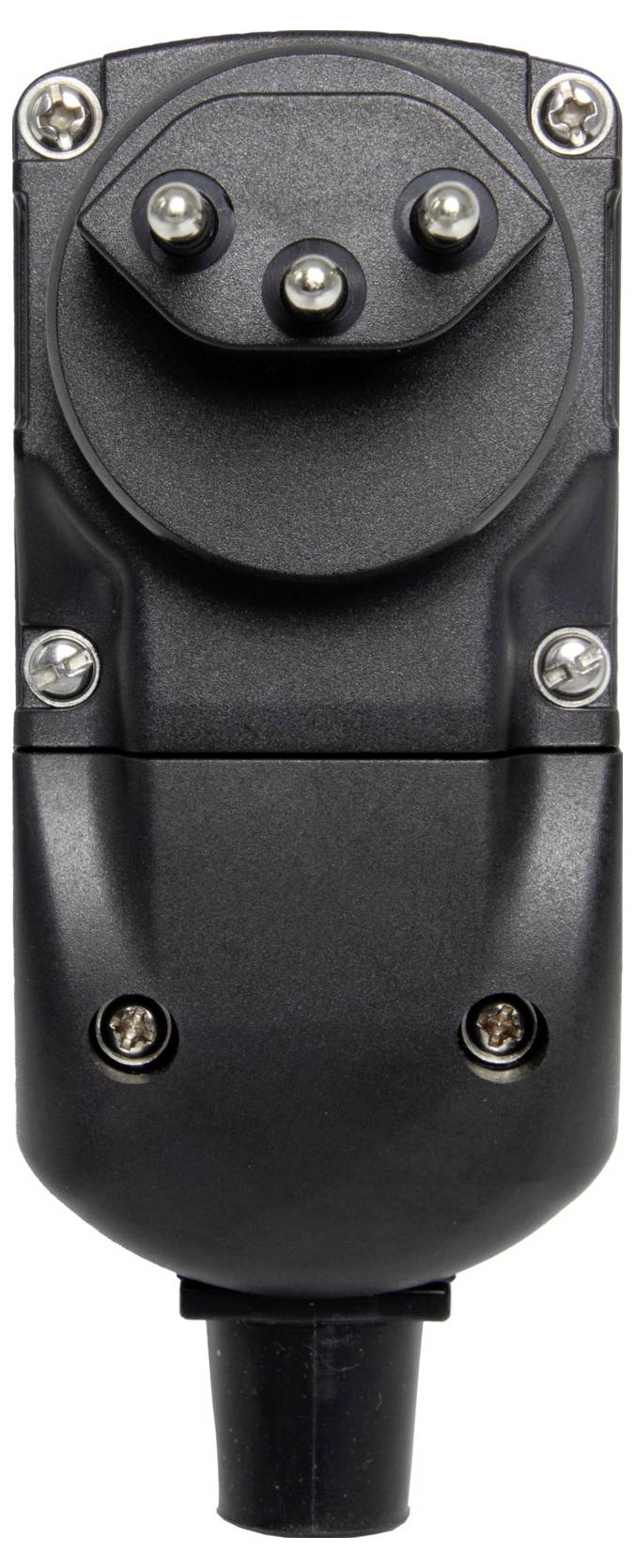

- Plug system: Type J T13 (CH)
- Product type
RCCB in-line socket
- Connector version
angled
- Nominal voltage
230 V
- Load (max.)
10 A
- Factory colour
Black
IP55
- Dim
(L x W x H) 115 x 55 x 105 mm
- Width
55 mm
- Height
105 mm
- Length
115 mm
- Residual current type
A
Documents & Downloads
Datasheet
Datasheet 3375543 Brennenstuhl 1290732 RCCB in-line socket 230 V Black IP55
User & Safety Instructions
User & Safety Instructions 3375543 Brennenstuhl 1290732 RCCB in-line socket 230 V Black IP55
Description
* The effective protection against electrical accidents. Quickly separates the active conductor from the mains as soon as there is residual current.
* Rated voltage: 230V/10A.
* Rated differential current: 30 mA.
* Two-pole cut-off.
* Trip time: <30 ms.
* Suitable for 3G0,75² to 3G2.5² cables.
* CONNECTOR T13/3, 230V/10A (IP55).
This text is machine translated.
* Rated voltage: 230V/10A.
* Rated differential current: 30 mA.
* Two-pole cut-off.
* Trip time: <30 ms.
* Suitable for 3G0,75² to 3G2.5² cables.
* CONNECTOR T13/3, 230V/10A (IP55).
This text is machine translated.
Scope of delivery
- Personal protection-plug PD29A IP55 *CH*
System requirements
- Suitable power connection
