Brennenstuhl 1506142 Timer analogue 24h mode IP55
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

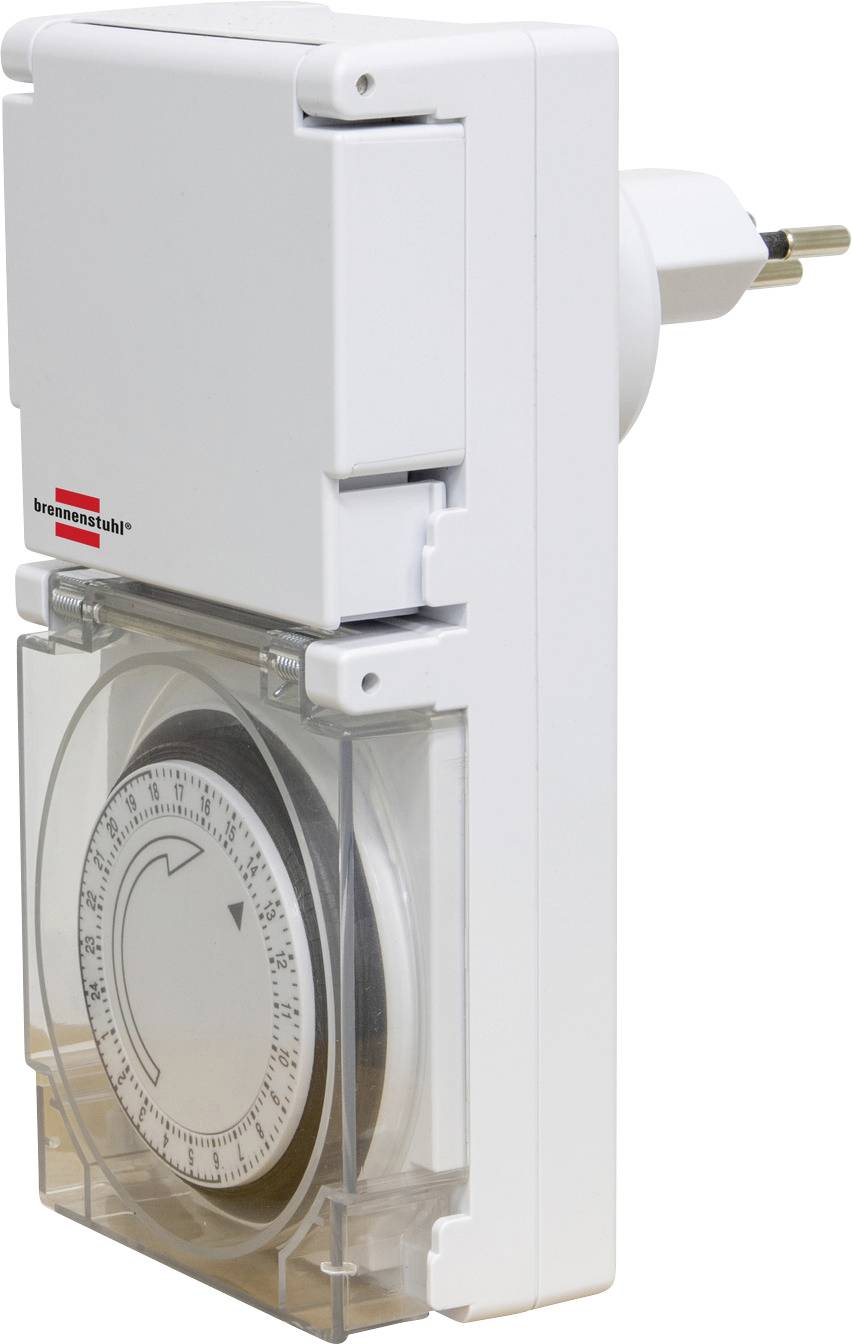

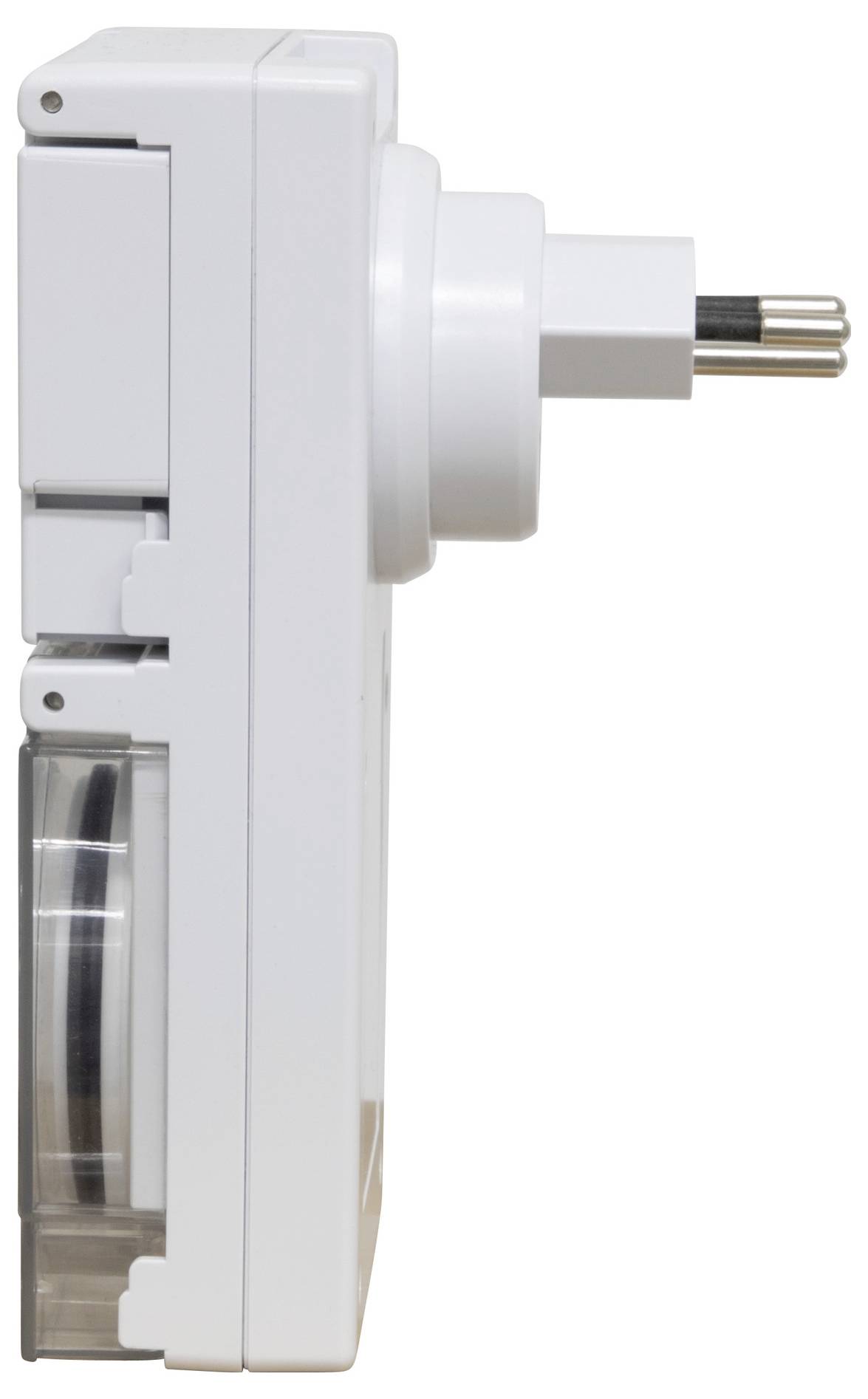

Mechanical timer MZ 55 *CH* IP 55
Technical specifications
- Product type
Timer
- Type
analogue
- Switching cycle
24h mode
IP55
- No. of SPCs
96
- Operating voltage
230 V
- Switching current (max.)
10 A
- Factory colour
White
- Shortest switching time
15 min
- Width
77 mm
- Height
153 mm
- Depth
96 mm
- Dim
(W x H x D) 77 x 153 x 96 mm
Documents & Downloads
Datasheet
Datasheet 3375590 Brennenstuhl 1506142 Timer analogue 24h mode IP55
User & Safety Instructions
User & Safety Instructions 3375590 Brennenstuhl 1506142 Timer analogue 24h mode IP55
Description
Day timer with 24-hour program.
With a large, transparent protective cover.
96 on/off times per day.
Minimum switching distance: 15 minutes.
Very easy to use.

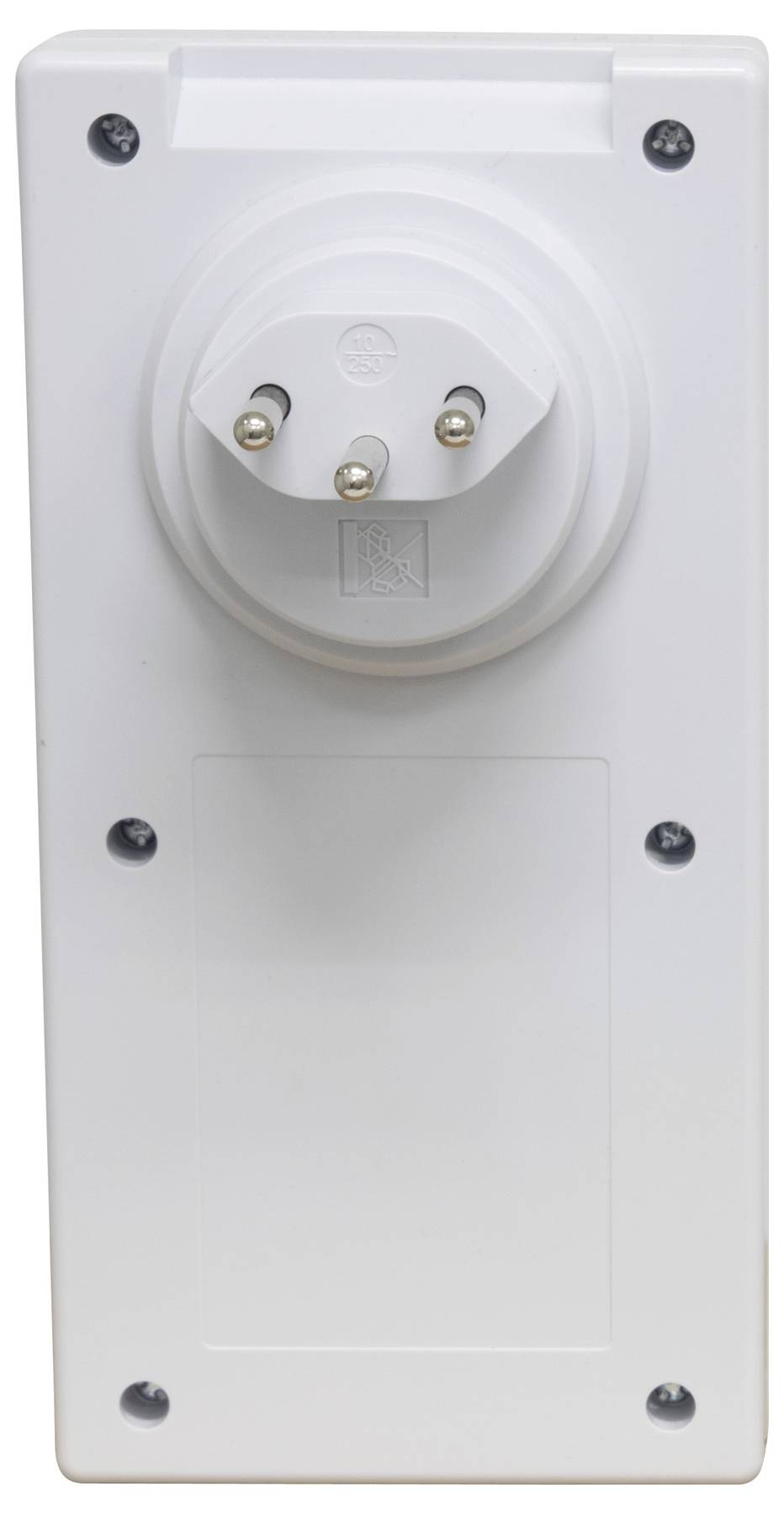

T13/3, 230V/10A PLUG (IP55).
1 SOCKET T13/3, 230V/10A (IP55).
This text is machine translated.
With a large, transparent protective cover.
96 on/off times per day.
Minimum switching distance: 15 minutes.
Very easy to use.
T13/3, 230V/10A PLUG (IP55).
1 SOCKET T13/3, 230V/10A (IP55).
This text is machine translated.
Scope of delivery
- Mechanical timer MZ 55 *CH* IP 55
System requirements
- Suitable power connection
