Brennenstuhl CEE power distributor professionalLINE 9150322060

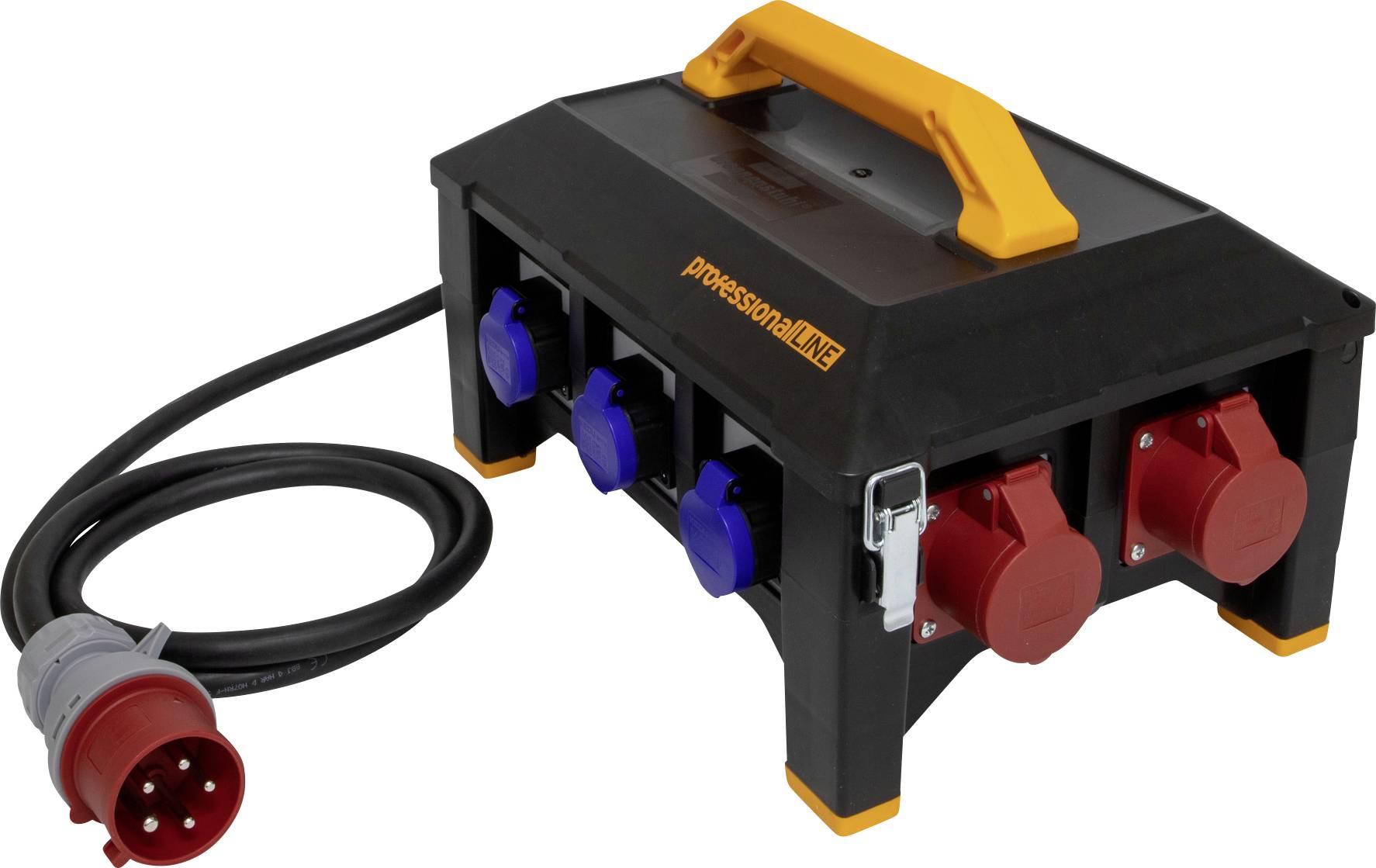

Black distribution box with a yellow handle and six sockets. Three red sockets for high-current power, three blue for standard connection.
'Black cable reel with orange handle and blue sockets, inscription "professional LINE" and "MADE IN GERMANY".'
A fabric safety strap with the inscription 'BLACK 622010' secures black hoses on an orange holder.

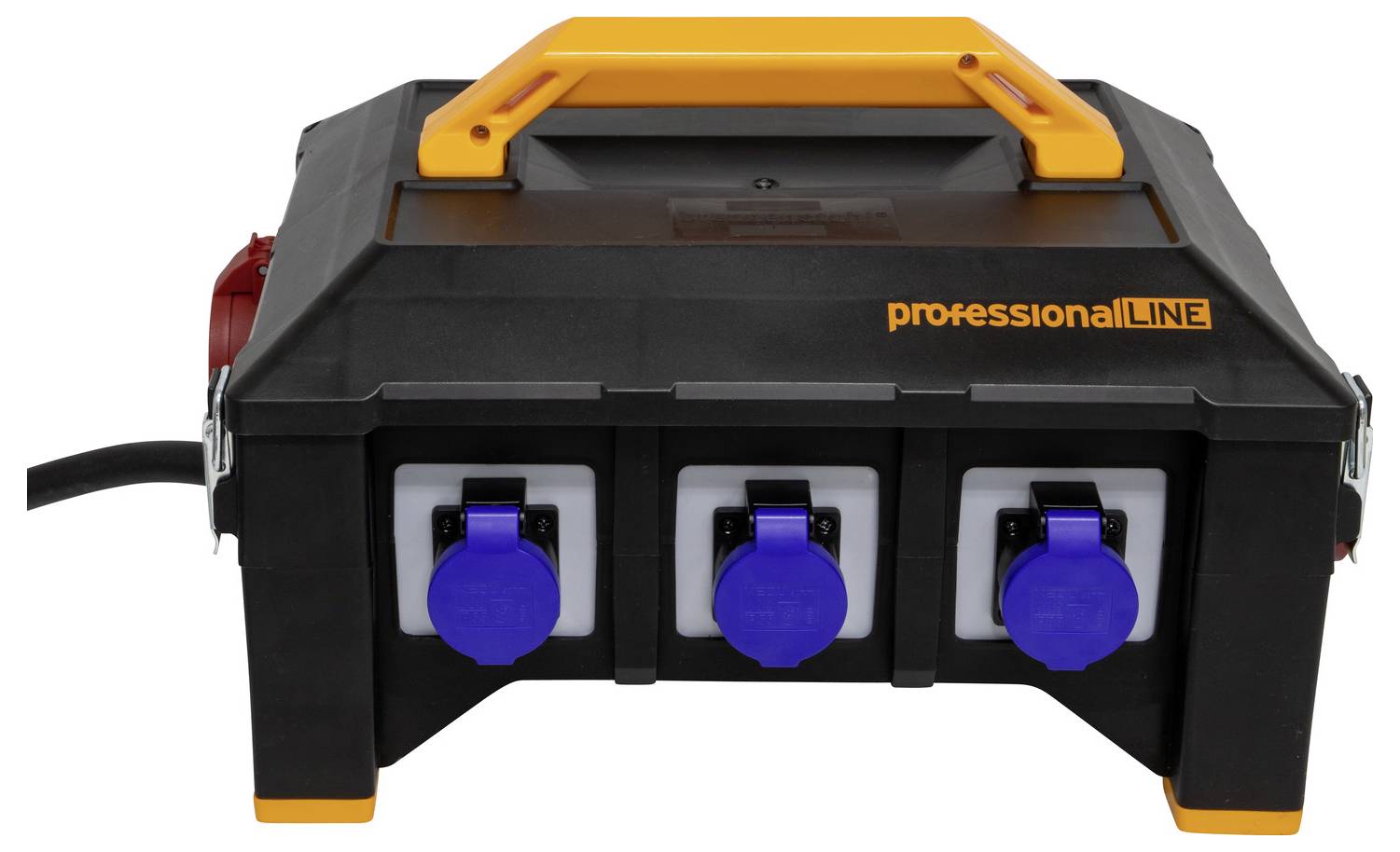

'Black portable power strip with three blue sockets and an orange handle, marked with "professional LINE".'

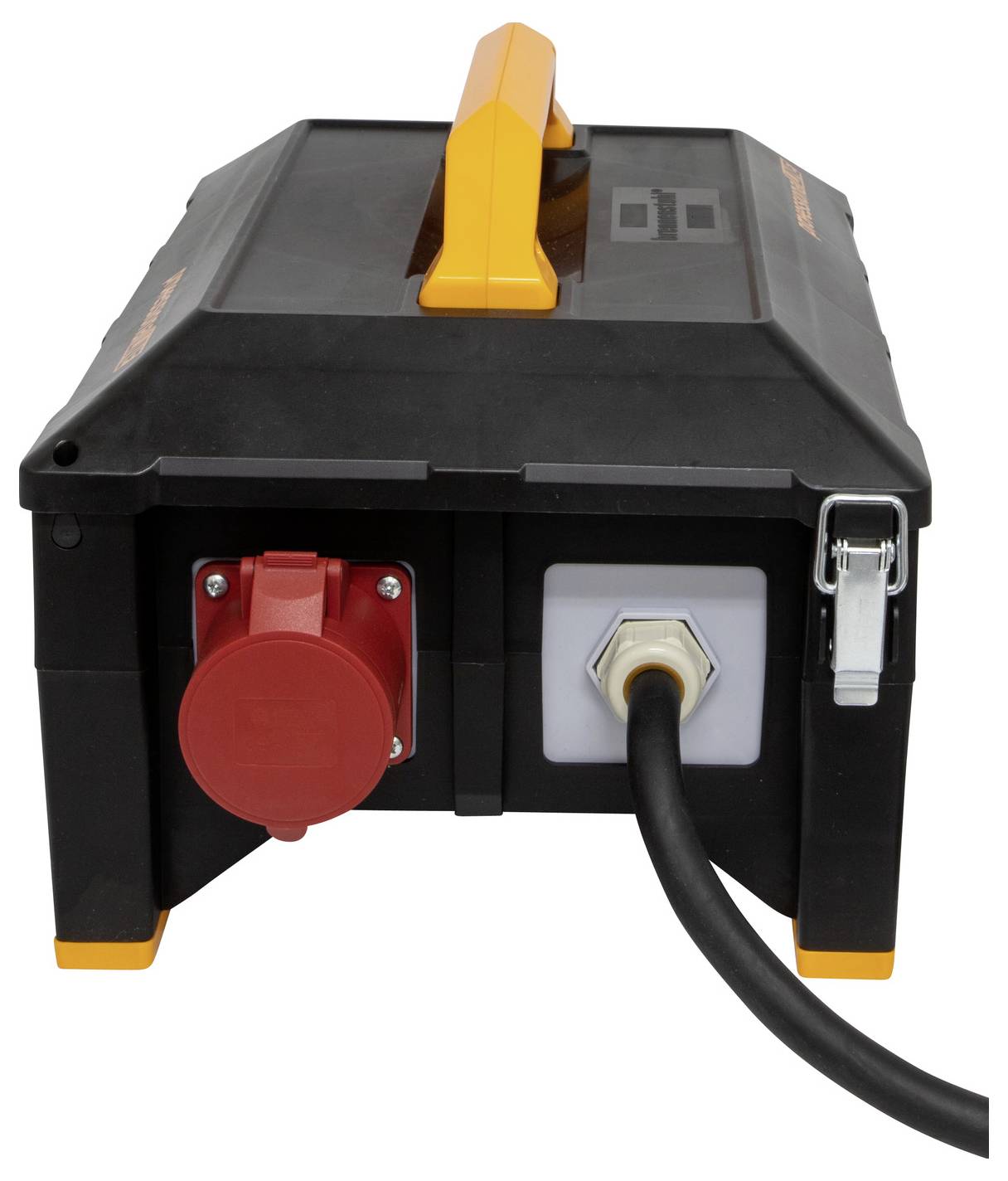

Black portable power supply device with an orange handle. Contains a red connector and a cable.
A person is holding a black carrying device with blue sockets and a red plug. The device is labelled 'professionalLINE'.

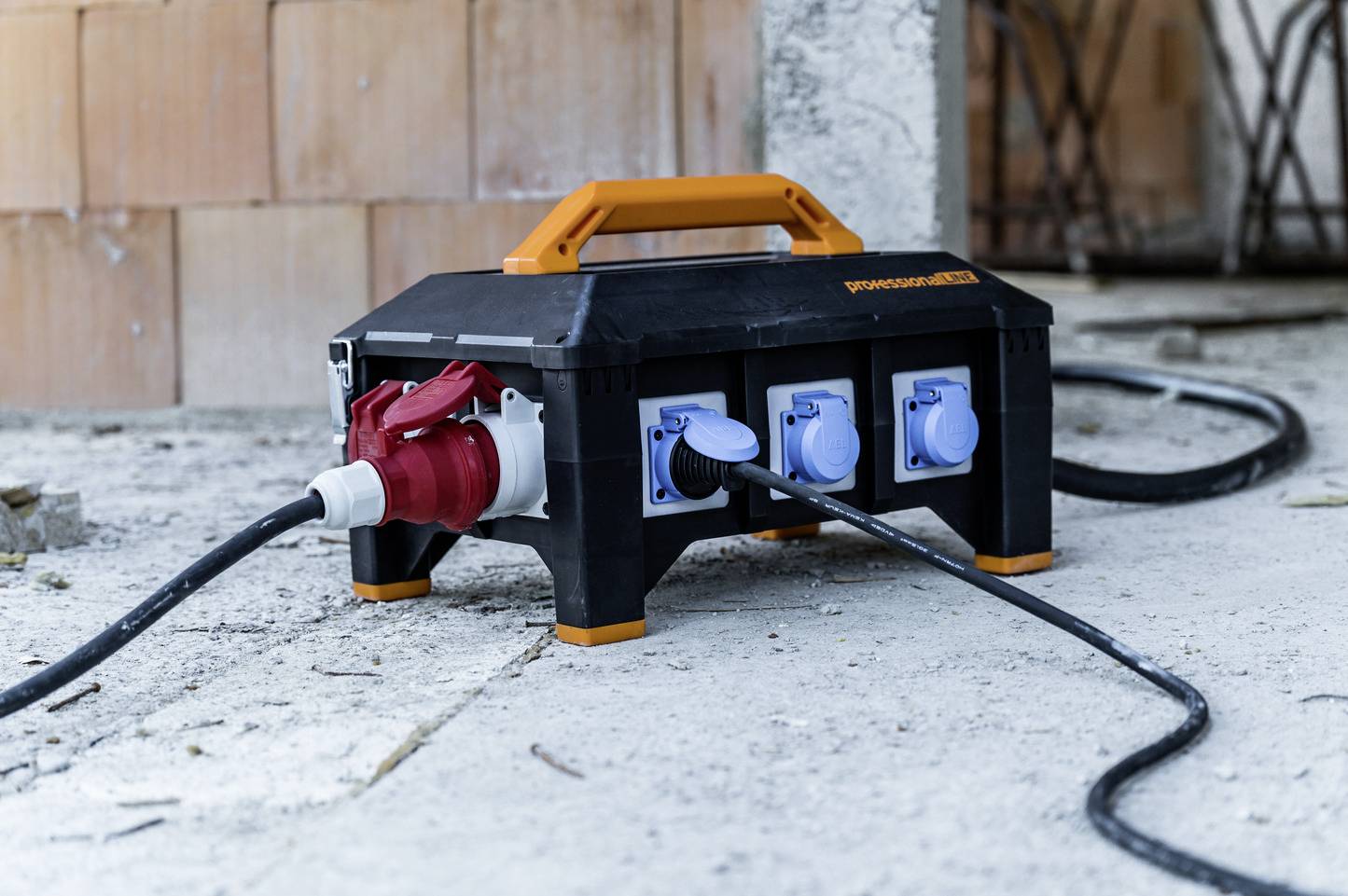

A portable construction site power distributor stands on the ground, with several cables connected. It has four power sockets and a handle.
A person is grinding metal with an angle grinder, with sparks flying. In the foreground, a mobile power distribution unit with multiple sockets is positioned.
1/8
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Professional line rubber power distributor BSV 5 3/6 N560 CH 32A FI 2m H07RN-F 5G6.0 1xCEE32A+2xCEE16A, 3x T25 400V/16A, 3x T23 230V/16A

  • 'Made in Austria' text next to a red and white stripe, similar to the Austrian flag.
  • 'Special Robust' logo with a yellow hard hat on an orange background.
  • The oranges symbol with a rain cloud and droplets above 'IP 44' indicates protection against water spray and solid objects larger than 1 mm.
  • Orange circle with a white symbol of an electrical plug and text: CH/T25 IP55.
  • Oranges Symbol shows a plug symbol with the label 'CH/T23 IP55', which indicates a specific socket type.

Technical specifications

  • FI-switch: FI with IFN 0.03 A (standard)
  • Type of residual current: Type A
  • Current (FI) 40 A
  • Circuit breaker switch 6
  • CEE socket - 16 A CEE 2x 16 A 3P+N+PE (5p) 400 V
  • CEE socket - 32 A CEE 1x 32 A 3P+N+PE (5p) 400 V
  • Socket system: Type J T25 (CH)/Type J T23 (CH)
  • Feed/connection possibility: Feed line with plug
  • Plug system: CEE 32 A 3P+N+PE (5p) 400 V
  • Max. power rating 32 A
  • Cable color: Black
Product type

CEE power distributor

Type A

CEE plug (3-pin, 32 A)

Type B

CEE socket (3-pin, 16 A)

CEE socket (3-pin, 32 A)

IP44

Cable length

2 m

Cable standard

H07RN-F 5G 6 mm²

Weight

7.8 kg

Dim

(L x W x H) 310 x 530 x 300 mm

Length

310 mm

Width

530 mm

Height

300 mm

Content

1 pc(s)

Number of pins

3

Documents & Downloads

Datasheet

Datasheet 3375555 Brennenstuhl CEE power distributor professionalLINE 9150322060

User & Safety Instructions

User & Safety Instructions 3375555 Brennenstuhl CEE power distributor professionalLINE 9150322060

Description

* Ergonomically shaped handle with recessed grip makes it easy to transport even with thick working gloves.
* High and non-slip rubber feet against ground-related impurities.
* Fuse elements (FI and LS switches) in the distribution interior.
* Extremely robust, impact resistant, resistant to aging and weather.
* Resistant to various oils, fats, petrol and acids, UV and ozone radiation.
* Self-closing lid with quick-release fastener and robust hinges.
* Oil resistant rubber cable for continuous outdoor use.
* Quality sockets according to SN441011-2-1.
* CEE sockets with nickel plated contacts.
* Connected power from 11 to 22kVA.
* With FI circuit breaker.
* Operation of several consumers at a three-phase/high-current connection point with plug systems according to IEC 60309.
* Belt for cable fixing.

This text is machine translated.

Scope of delivery

  • Professional line rubber power distributor

System requirements

  • Suitable power connection
