Brumberg 10028183 LED surface-mount light LED (monochrome) 18 W Black

Round black ceiling light fixture with a white diffuser, shown against a plain white background.

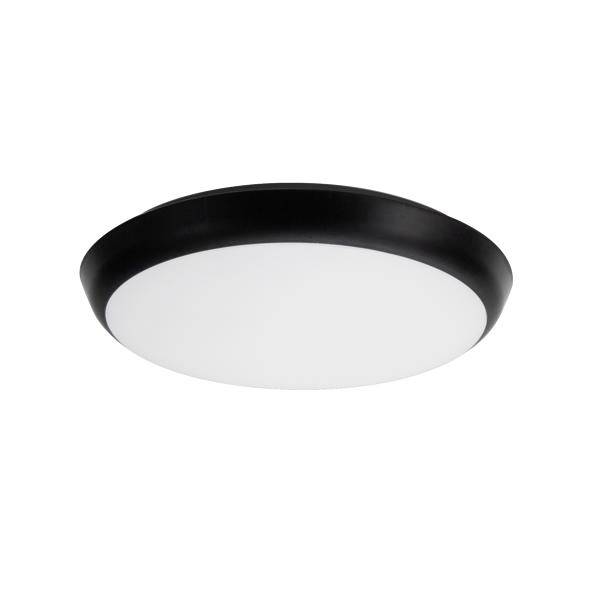

Round flush-mount ceiling light with black rim and white diffuser on a plain white background.
Round white flush-mount ceiling light with a thin black rim, shown against a plain white background.
Round flush-mount ceiling light with brushed silver rim and white diffuser on a white background.

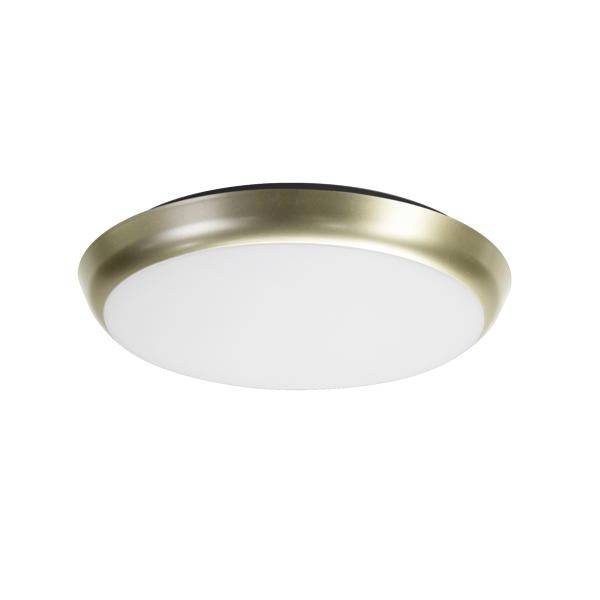

Round flush-mount ceiling light with brushed brass rim and white diffuser on a plain white background.
Polar photometric diagram showing a near-circular light distribution, with angle marks 30°-90° and intensity labels 85, 170, 255, 340 cd.klm.
Technical drawing of an oval object with dimensions: 250 width and 48 height, shown in top and side views.
Technical drawing of an oval fixture showing dimensions 250 width and 48 height.
1/8
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 18 W
  • Total luminous flux= 1700 lm
  • White

Technical specifications

Dim

(Ø x H) 250 mm x 48 mm

Operating voltage

230 V AC

No. of bulbs

1

Product type

LED surface-mount light

Bulb type

LED (monochrome)

Height

48 mm

Rating per bulb

18 W

18 W

(Ø)

250 mm

Light features

Ceiling mount option

Suitable for wall mounting

Incl. ballast

Dimmable

Direct light emission

Selectable luminous flux

Protection class

II

IP65 (on front)

IK08

Factory colour

Black

Material

Plastic

n.rel.

Colour rendering index

80-89

Colour

White

Light bulb included

Yes

Colour temperature (max.)

4000 K

Colour temperature (min.)

2700 K

Colour temperature range

2700 - 4000 K

Total luminous flux

1700 lm

Type

powder-coated

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3830582 Brumberg 10028183 LED surface-mount light LED (monochrome) 18 W Black

Datasheet 3830582 Brumberg 10028183 LED surface-mount light LED (monochrome) 18 W Black

User & Safety Instructions

User & Safety Instructions 3830582 Brumberg 10028183 LED surface-mount light LED (monochrome) 18 W Black

Description

LED ceiling wall mounted light, IP65, 3CCT, phase angle dimmable, black structure, round. Design in a compact design for the harmonious implementation in an architectural space concept. Design: Without socket, mounting type: Mounting, mounting location: Ceiling-/wall mounting, material: Polycarbonate, protection class: Room side (DIN EN 60529) IP65, protection class: (DIN EN 61140) II, voltage: 230V AC 50Hz, power: 2,700 W, number of lights / sockets: 4,000 piece, light current: 120 lm, color temperature: From 18 K to 1 K, light color: White, angle: 1,700°, adjustable: not adjustable, with operating device: yes, Dimmable: yes, type of dimming: phase section.

This text is machine translated.

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
