Brumberg 10036173 10036173 LED wall light Bulb cannot be changed 12 W LED (monochrome) White
EAN:
Part number:
Item no:
Highlights & Details
Brumberg LED wall-mounted luminaire 230V 3000/4000/5700K 10036173
- Power= 12 W
- Total luminous flux= 1000 lm
- Colour temperature= 5700 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 1
- Material of housing: Aluminium
- Housing color: White
- Cover material: Plastic opal
- Design of grid: Without
- Voltage type AC
- Nominal voltage: 230 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: No.
- Without dimming function: Yes

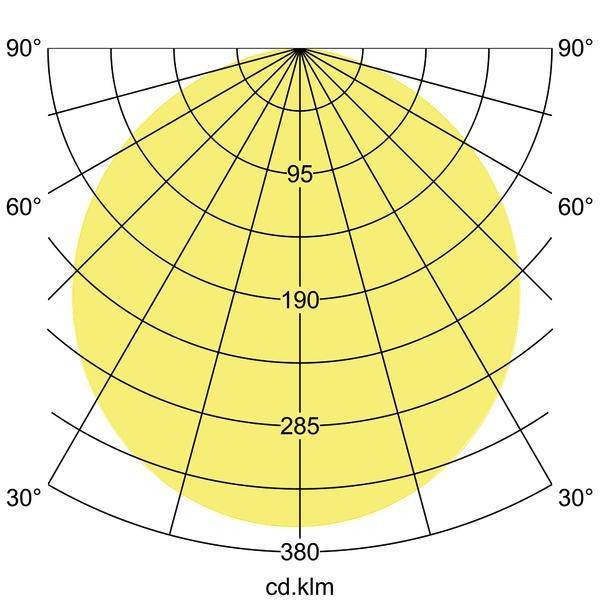

- Light distribution: Symmetric
- Light emission: Direct
- Rated life L70/B50 at 25 °C: 50000 h
- Protection class (IP) IP65
- Impact strength: IK10
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- With air vents: No.
- Suitable for lamp output 12 W
- Max. System power 12 W
- Light output 83.33 lm/W
- Rated light current according to IEC 62722-2-1: 1000 lm
- Light color: White
- Colour temperature 3000..5700 K
- Color Rendering Index CRI: 80-89
- Constant luminous flux regulation: No.
- Height/depth 70 mm
- Outer diameter: 250 mm
- Type of wiring: Suitable for through-wiring
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED wall light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Bulb cannot be changed
- Rating per bulb
12 W
12 W
- Light features
Incl. ballast
- Radiation angle
110°
- Protection class
I
IP65
- Factory colour
White
- Material
Aluminium
- Dim
(Ø x H) 250 mm x 70.00 mm
n.rel.
- Type
Circular
- Colour
White
- Light bulb included
Yes
5700 K
- Total luminous flux
1000 lm
1000 lm
- Width
250 mm
- Height
70.00 mm
- Depth
70 mm
- (Ø)
250 mm
- Rated luminous flux
1000 lm
- Colour rendering index
80-89
- Colour temperature (max.)
5700 K
- Colour temperature (min.)
3000 K
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3137694 Brumberg 10036173 10036173 LED wall light Bulb cannot be changed 12 W LED (monochrome) White
Description
LED-wall mounted luminaire, IP65, structure white, round. Design in a compact design for the harmonious implementation in an architectural space concept. The light color can be set from 3000 K to 4000 K or 5700 K. Mounting type: Mounting on the wall, mounting location: Wall mounting, material: Aluminium / plastic, protection class on the room side: According to DIN EN 60529: IP65, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 12W, number of lights / sockets: 1.0 pcs, light current: 1,000 lm, color temperature: from 3,000 K to 5,700 K, light color: white, angle of radiation: 110°, adjustable: not adjustable, with operating device: yes, Type of dimming: switchable.
This text is machine translated.
This text is machine translated.
