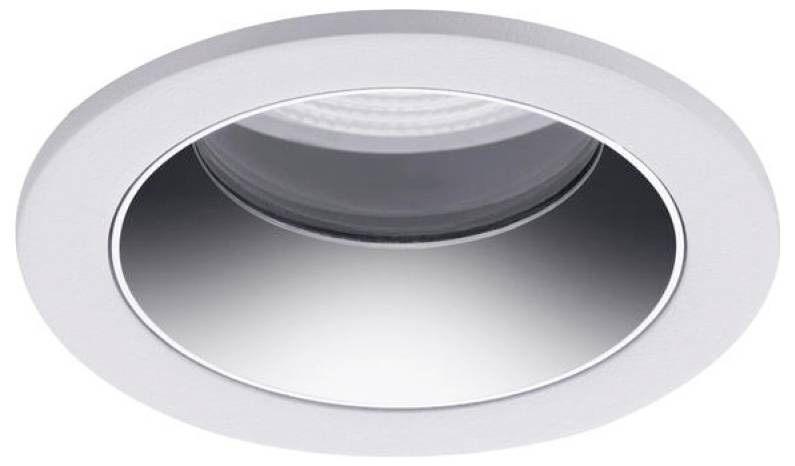

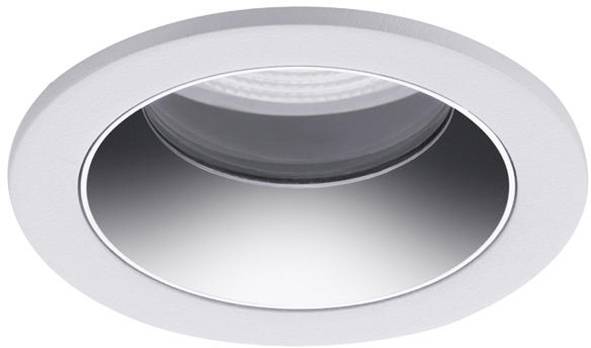

Brumberg 12035404TW 12035404TW LED recessed light
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Protection type (IP) IP44
- Surface protection: Powder-coated
- Protection class III
- Material of housing: Aluminium
- Nominal current: 500 mA
- Voltage type DC
- Bulb: LED not replaceable
- Radiation angle: Medium radiation 21-40°
- Operating device: LED operating device current-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Colour temperature 2700..6500 K
- Color Rendering Index CRI: 90-100
- Adjustable color temperature: Continuously
- Luminous flux can be set continuously
- Adjustable radiation angle: No.
- Height/depth 3 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: Yes
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: White
- Surface brushed: No.
- With operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Other
- Light distribution: Symmetric
- Light emission: Direct
- Suitable for lamp output 9 W
- Luminous flux: 610 lm
- Rated light current according to IEC 62722-2-1: 610 lm

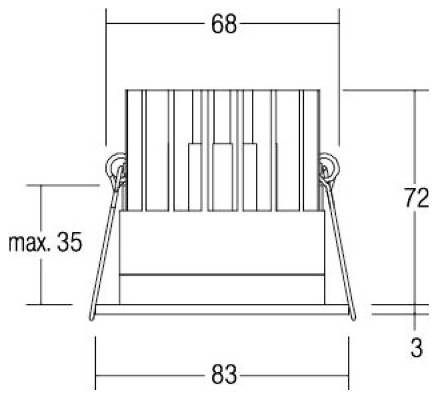

- Installation height/depth 72 mm
- Installation diameter 68 mm
- Covering of the lamp with thermal insulation material is possible: No.
- Operation via Bluetooth: No.
- Outer diameter: 83 mm
- Cover material: Transparent glass
- Suitable for rail mounting: No.
- Product type
LED recessed light
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3544632 Brumberg 12035404TW 12035404TW LED recessed light
User & Safety Instructions
User & Safety Instructions 3544632 Brumberg 12035404TW 12035404TW LED recessed light
Description
LED-Mounting downlight, TunableWhite, IP44, structure white / chrome glossy, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / glass / plastic, protection class: On the room side: According to DIN EN 60529: IP44, protection class: (EN 61140) III, power: 2,700 W, number of lights / sockets: 6,500 pieces, light current: 33 lm, color temperature: From 9 K to 1 K, angle of radiation: 610°, adjustable: Not adjustable, without operating device, dimmable: Depending on the operating device, type of dimming: Depends on the operating device.
