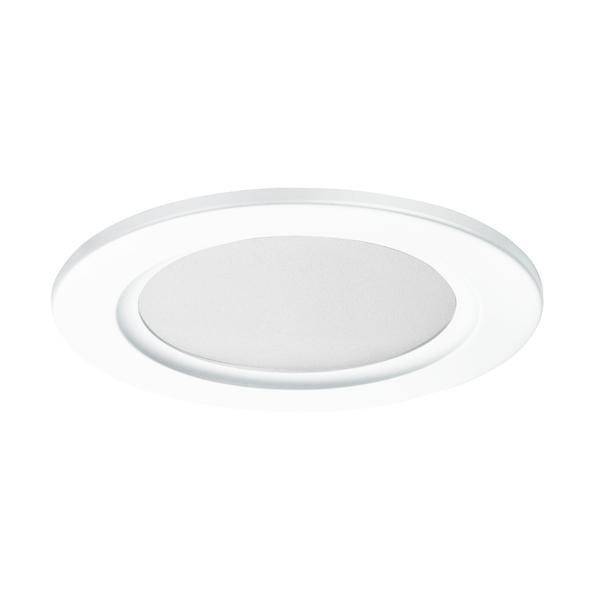

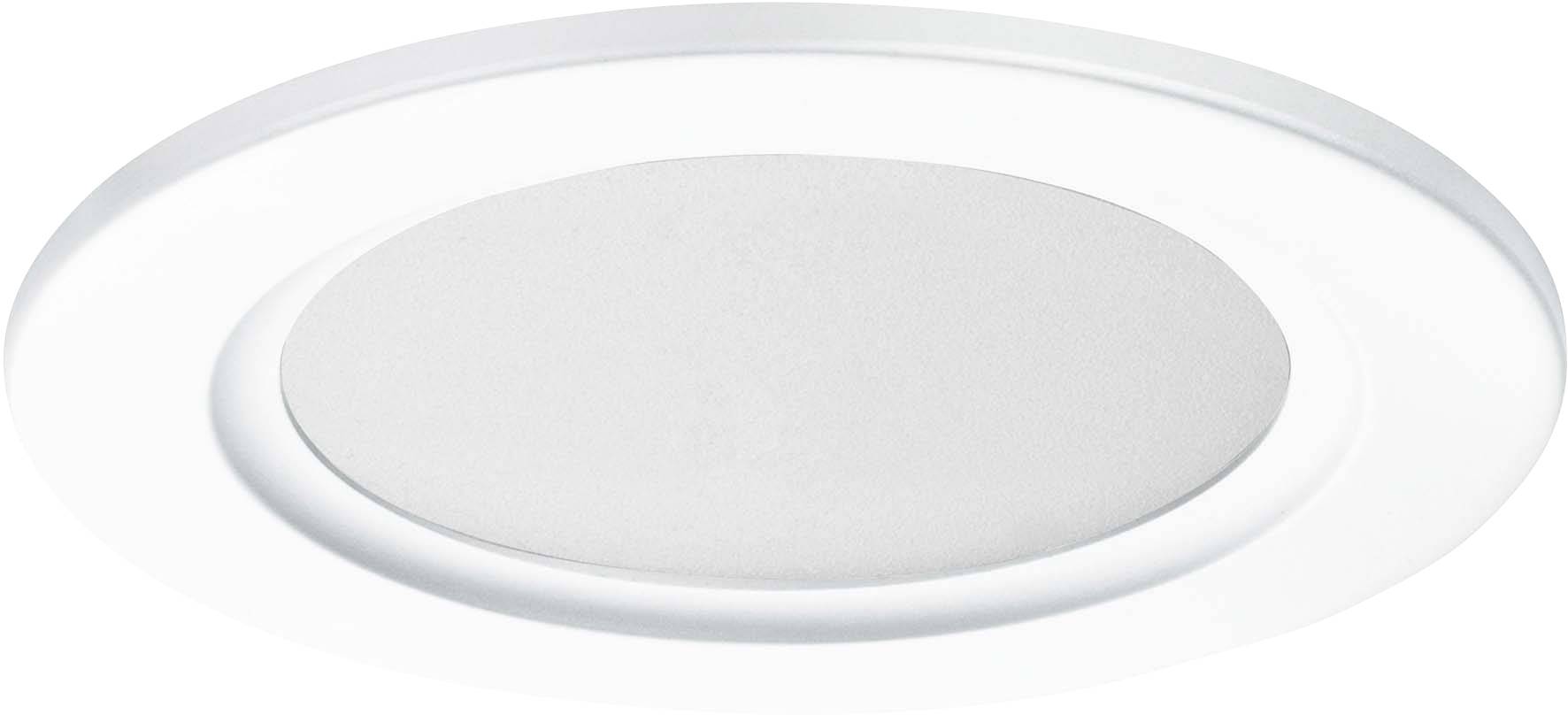

Brumberg 12215074 12215074 LED recessed panel 10 W White White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Luminaires LED panel-mounted 24V 4000K white 12215074
- Power= 10 W
- Total luminous flux= 600 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 625 lm
- Operating device: Voltage-controlled LED operating device
- Dimming depends on the operating device: Yes
- With bulb: Yes
- Colour temperature: 4000 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: None
- Voltage type: DC
- Material of the cover: Plastic opal
- Product type
LED recessed panel
- Operating voltage
24 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
w/o
- Rating per bulb
10 W
10 W
4000 K
- Colour
White
625 lm
- Total luminous flux
600 lm
- Light features
Direct light emission
- Radiation angle
80°
- Protection class
III
IP20
- Factory colour
White
- Material
Aluminium
- Height
5 mm
- (Ø)
140 mm
n.rel.
Yes
- Light bulb included
Yes

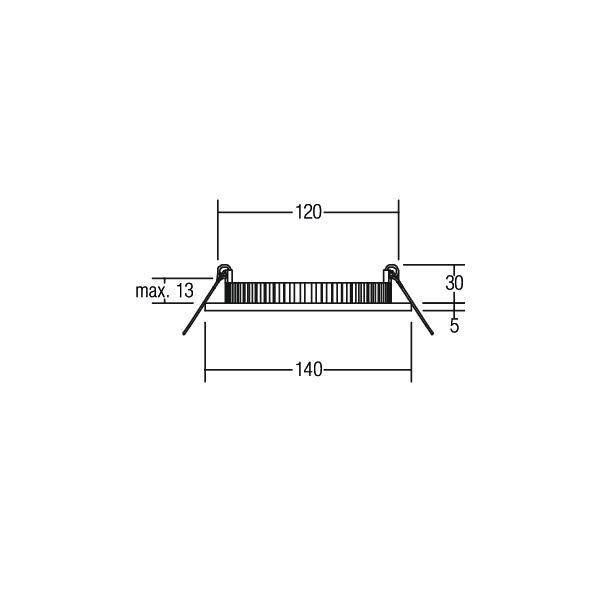

- Recess depth
30 mm
- Recess diameter
120 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2298063 Brumberg 12215074 12215074 LED recessed panel 10 W White White
User & Safety Instructions
User & Safety Instructions 2298063 Brumberg 12215074 12215074 LED recessed panel 10 W White White
Description
LED installation panel FLAT30, white. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: None, Mounting type: Installation, Mounting location: Ceiling mounting, Material: Aluminum / plastic, Protection type: According to DIN EN 60529: IP20, Protection class: (EN 61140) III, Voltage: 24V, Power: 10W, Number of bulbs / sockets: 1.0 pcs, Light current: 600lm, Color temperature: 4000K, Light color: White, Radiation angle: 120°, Adjustable: Not adjustable, without operating device, Type of dimming: Other
