Brumberg 12259073 LED surface-mount light LED (monochrome) 40 W White

Round white LED ceiling light fixture on a plain white background.
Round white flush-mount ceiling light fixture on a plain white background.
Round LED ceiling light with glowing blue halo on a white ceiling.
Round ceiling light with white diffuser and a warm orange glow around the rim on a gray ceiling.
Round white flush-mount ceiling light fixture on a plain white background.
Four curved plastic pieces in white, orange, pink, and blue arranged diagonally on a white background.

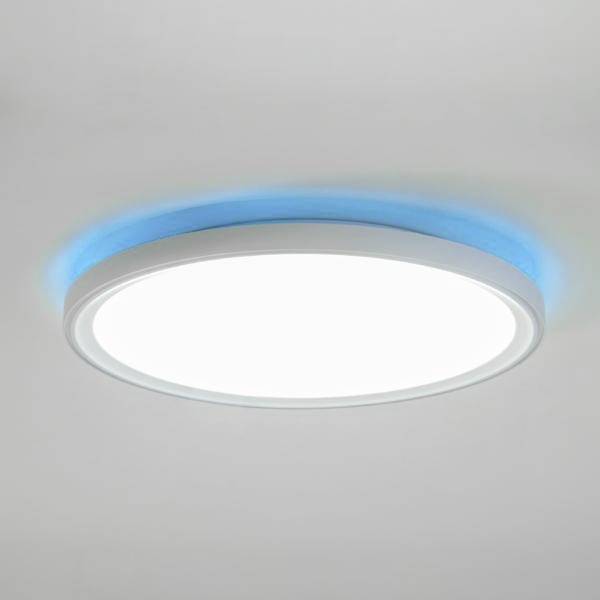

Round flush-mount ceiling light with a bright white center and soft blue glow around the edge on a gray ceiling.
Round white ceiling light with a soft orange glow around the rim on a gray ceiling.
Round ceiling light with bright white center and pink-red glow around the outer edge on a plain ceiling.<br>
Illuminance distribution chart showing E0(0°) [lx] decreasing with distance Ø (m): 2636.3 at 1.0 m to 105.5 at 5.0 m.<br>
Polar light distribution chart with a nearly circular yellow intensity pattern, radial degree grid, and cd.klm scale markings from 90 to 360.
Technical drawing of an oval ring or rim, showing top and side views with dimensions 440 mm wide, 205 mm long, and 50 mm high.
1/12
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 40 W
  • Total luminous flux= 3750 lm
  • Colour temperature= 3000 K
  • White

Technical specifications

Dim

(Ø x H) 440 mm x 50 mm

Operating voltage

230 V AC

No. of bulbs

1

Product type

LED surface-mount light

Bulb type

LED (monochrome)

Height

50 mm

Rating per bulb

40 W

40 W

(Ø)

440 mm

Light features

Ceiling mount option

Incl. ballast

Dimmable

Direct light emission

Indirect light emission

Protection class

I

IP20 (Front)

IK04

Factory colour

White

Material

Aluminium

Plastic

n.rel.

Colour rendering index

80-89

Colour

White

Light bulb included

Yes

3000 K

Colour temperature range

3000 K

Total luminous flux

3750 lm

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3830604 Brumberg 12259073 LED surface-mount light LED (monochrome) 40 W White

Datasheet 3830604 Brumberg 12259073 LED surface-mount light LED (monochrome) 40 W White

User & Safety Instructions

User & Safety Instructions 3830604 Brumberg 12259073 LED surface-mount light LED (monochrome) 40 W White

Description

LED ceiling-mounted downlight, DALI dimmable, 440 mm, white matt, round. Design in a compact design for the harmonious implementation in an architectural space concept. Design: Without socket, mounting type: Mounting installation, mounting location: Ceiling mounting, material: Aluminium / steel / polystyrene, protection class: Room-side according to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 40 W, number of lights / sockets: 3,000 piece, light current: 3,750 lm, color temperature: From 3,000 K to 1 K, light color: white, angle of radiation: 110°, adjustability: not adjustable, with operating device: yes, Dimmable: Yes, type of dimming: DALI-2.

This text is machine translated.

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
