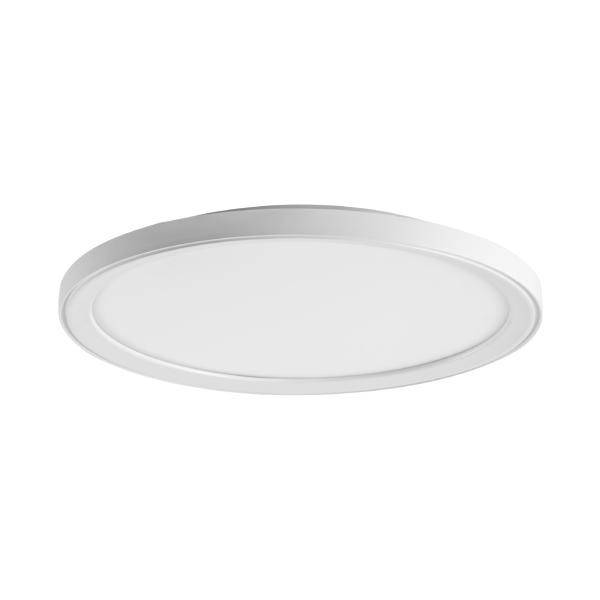

Round, white ceiling light with simple design, suitable for modern interiors.

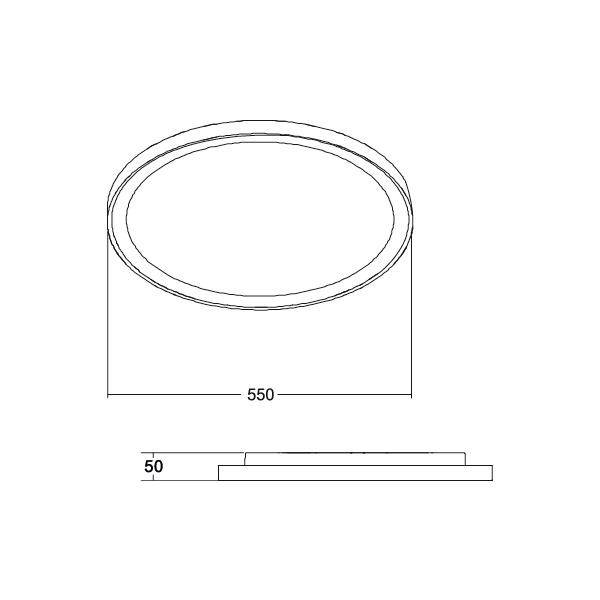

Drawing of a circular object with 550 mm diameter and 50 mm height in side and top view; possibly an LED light.

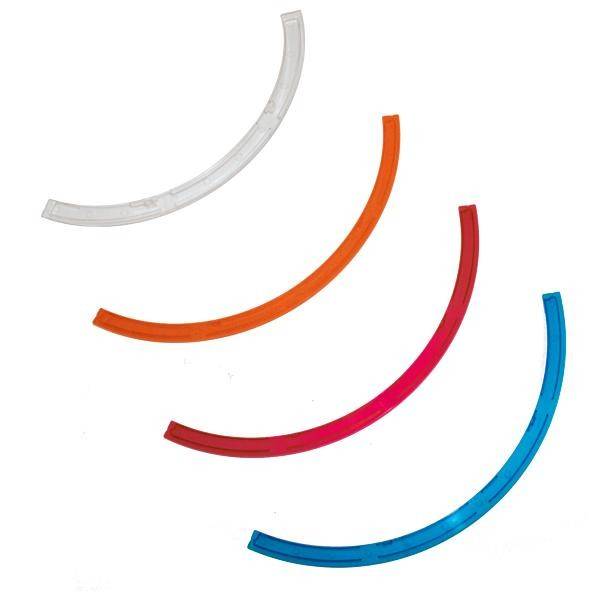

Four differently coloured unicycle frames (white, orange, red, blue) arranged in an arc, showing possible colour variations.

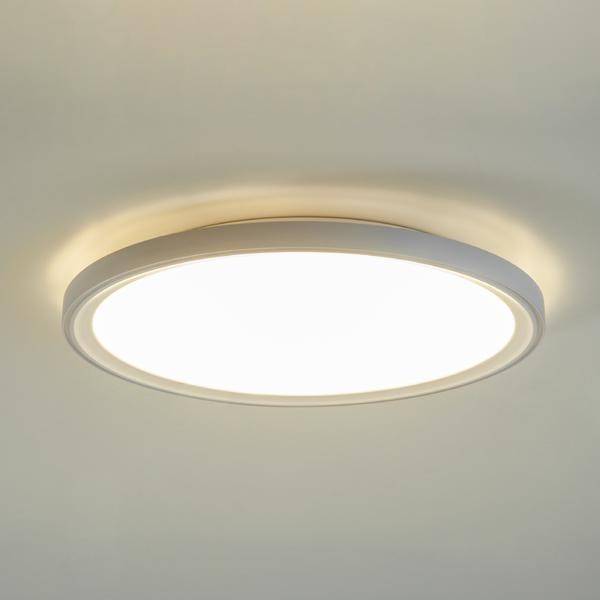

Round ceiling light with bright, even illumination, mounted on a white ceiling.

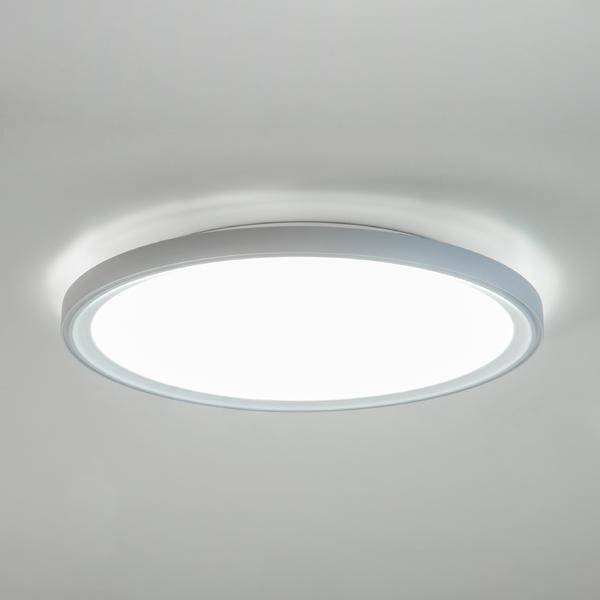

A round LED ceiling light with a white casing shines brightly on the ceiling of a room.

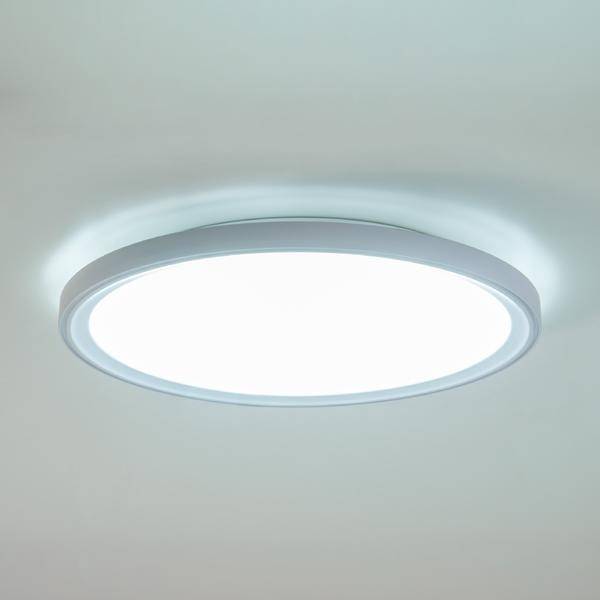

A luminous, round LED ceiling light on a white ceiling, evenly filling the room with light.

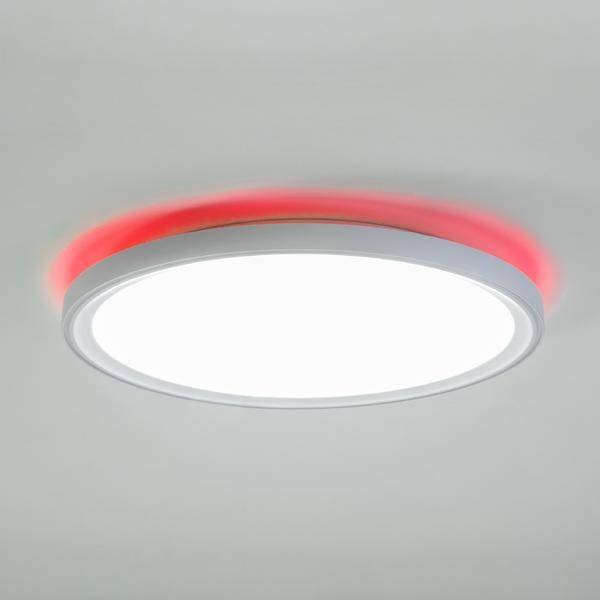

Round ceiling light with white light and red halo effect on the ceiling. Minimalist design, suitable for modern interiors.

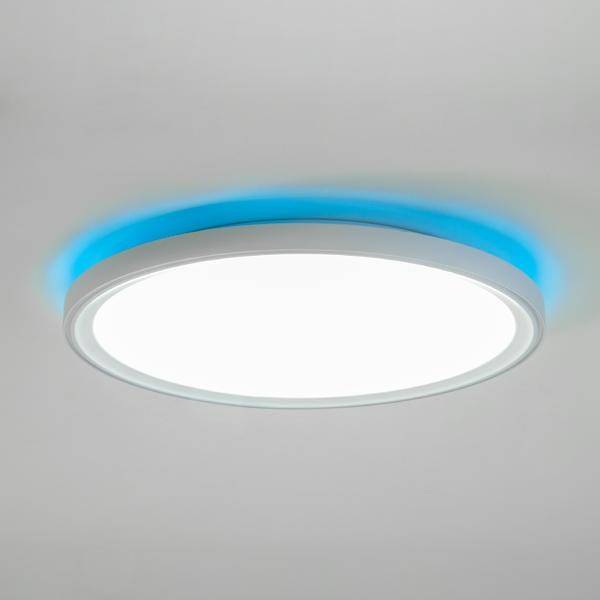

A round LED ceiling light shines brightly, surrounded by a blue light halo on the ceiling surface.

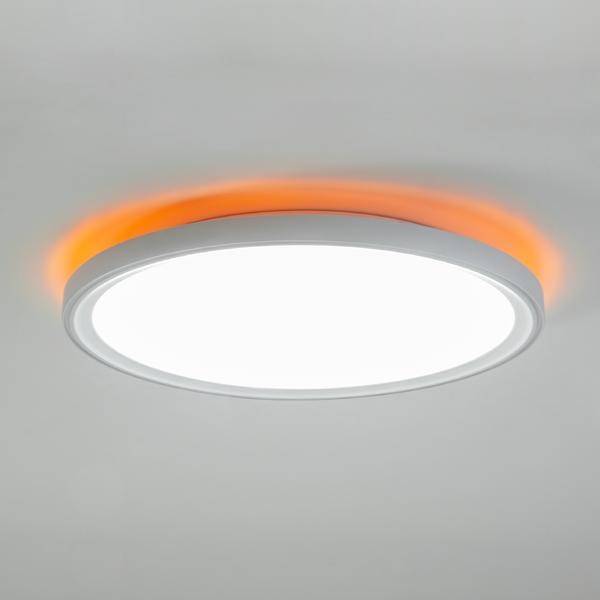

Round ceiling light with bright central illumination and orange ambient lighting around the edge.

1/9

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Brumberg LED panel-mounted downlight 230V 3000K 12260073

Power= 50 W
Total luminous flux= 4250 lm
Colour temperature= 3000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: No.
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: Yes
Suitable for panel mounting: No.
Suitable for mounting on the panel: Yes
Suitable for light band configuration: No.
Suitable for screen workstations according to EN 12464-1: No.
Suitable for the number of bulbs: 1
Material of housing: Aluminium
Housing color: White
Cover material: Plastic opal
Design of grid: Without
Voltage type AC
Nominal voltage: 230 V
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: Yes
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Dimming depends on the operating device: No.
Without dimmer function: No.
Light distribution: Symmetric
Light emission: Direct
Rated life L70/B50 at 25 °C: 50000 h
Protection class (IP) IP20
Impact strength: IK04
Protection class: I
Lamp with limited surface temperature "D-sign": No.
Suitable for emergency light: No.
Integrated emergency power supply: No.
With motion detector: No.
With light sensor: No.
With air vents: No.
Suitable for lamp output 50 W
Max. System power 50 W
Light output 85 lm/W
Rated light current according to IEC 62722-2-1: 4250 lm
Light color: White
Colour temperature: 3000 K
Color Rendering Index CRI: 80-89
Constant luminous flux regulation: No.
Height/depth 50 mm
External diameter: 550 mm
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Bulb: LED not replaceable
With bulb: Yes

Dim: (Ø x H) 550 mm x 50.00 mm

Type: Circular

Operating voltage: 230 V

No. of bulbs: 1

Product type: LED ceiling light

Width: 550 mm

Bulb type: LED (monochrome)

Height: 50.00 mm

: Built-in LED

Rating per bulb: 50 W

Depth: 50 mm

: 50 W

(Ø): 550 mm

Light features: Indirect light emission
Dimmable
Direct light emission
Incl. ballast

Protection class: I

: IP20

Factory colour: White

Material: Aluminium

: n.rel.

Colour rendering index: 80-89

Colour: White

Light bulb included: Yes

: 3000 K

Colour temperature (max.): 3000 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 3000 K

Total luminous flux: 4250 lm

: 4250 lm

Rated luminous flux: 4250 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3138799 Brumberg 12260073 12260073 LED ceiling light LED (monochrome) Built-in LED 50 W White

Description

LED Ceiling-mount downlight, DALI dimmable, 550 mm, white, round. Design in a compact design for the harmonious implementation in an architectural space concept. Direct and indirect light emission Mounting type: Mounting, mounting location: Ceiling mounting, material: Aluminium / steel / polystyrene, enclosure rating: On the room side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 3,000 W, number of lights / sockets: 110 piece, light current: 4,250 lm, color temperature: 50 K, angle of radiation: 1°, adjustable: Not adjustable, With operating device: yes, dimmable: yes, type of dimming: DALI-2.
