Brumberg 12374173 12374173 LED recessed light LED (monochrome) Bulb cannot be changed 3 W White
EAN:
Part number:
Item no:
Highlights & Details

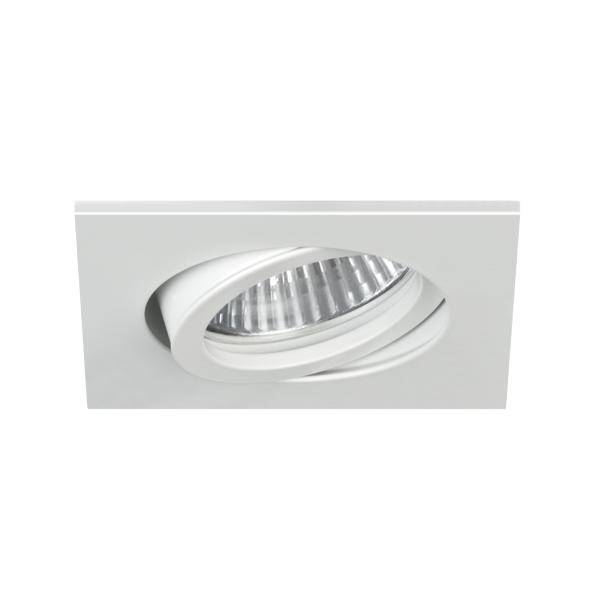

Brumberg LED recessed spotlight 350 mA 2700 K, square, ws 12374173
- Power= 3 W Total luminous flux= 290 lm Colour temperature= 2700 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for panel mounting: Yes
- Suitable for mounting on a panel: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for pedestal-/floor mounting: No.
- Suitable for clamp mounting: No.
- Suitable for cable system: No.
- Adjustable: Pivoting
- With motion detector: No.
- With light sensor: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Aluminium
- Surface protection: Other
- Housing color: White
- Cover material: Transparent glass
- Surface brushed: No.
- Voltage type DC
- Rated LED current at constant current 350 mA
- Operating device: LED operating device current-controlled
- With operating device: No.
- Dimming depends on the operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: High-gloss

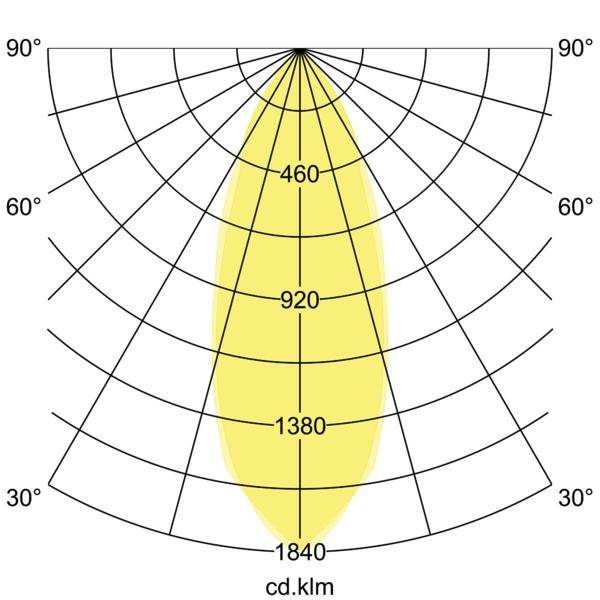

- Light distribution: Symmetric
- Radiation angle: Medium radiation 21-40°
- Light emission: Direct
- Constant luminous flux regulation: No.
- Protection class (IP) IP20
- Protection class III
- Suitable for lamp output 3 W
- Max. System power 3 W
- Light color: White
- Colour temperature: 2700 K
- Color Rendering Index CRI: 80-89
- Luminous flux: 290 lm
- Rated light current according to IEC 62722-2-1: 290 lm
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.

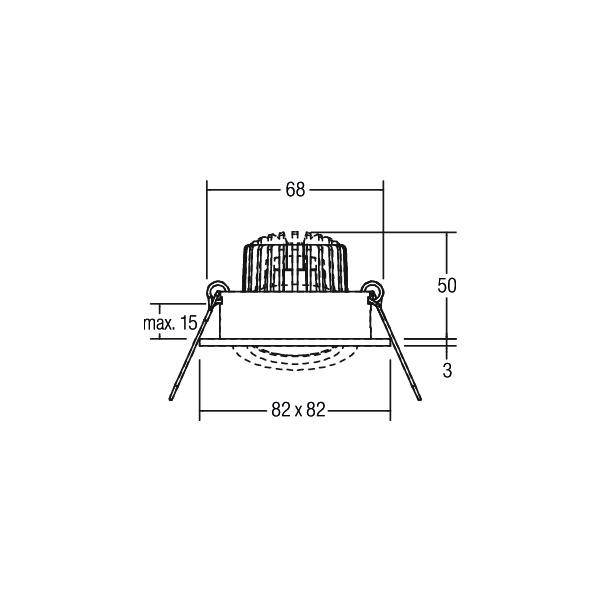

- Width 82 mm
- Height/depth 3 mm
- Length: 82 mm
- Installation height/depth 50 mm
- Installation diameter 68 mm
- Type of wiring: Suitable for through-wiring
- Lamp with limited surface temperature "D-sign": No.
- Integrated emergency power supply: No.
- Light output 96.67 lm/W
- Workplace training material - EN 12464-1: Yes
- Covering of the lamp with thermal insulation material is possible: No.
- IFTTT support available: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Product type
LED recessed light
- No. of bulbs
1
Bulb cannot be changed
- Bulb type
LED (monochrome)
- Rating per bulb
3 W
3 W
290 lm
- Total luminous flux
290 lm
2700 K
- Colour
White
- Type
Square
- Protection screen
Clear
- Radiation angle
38°
- Light features
Swivelling
- Recess diameter
68 mm
- Recess depth
50 mm
- External length
82 mm
- External width
82 mm
IP20
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
- Dim
(L x W x H) 82.00 x 82.00 x 3.00 mm
Yes
- Light bulb included
Yes
- Colour temperature (max.)
2700 K
- Colour temperature (min.)
2700 K
- Colour temperature range
2700 - 2700 K
- Width
82.00 mm
- Height
3.00 mm
- Length
82.00 mm
- Depth
3 mm
- Rated luminous flux
290 lm
- Colour rendering index
80-89
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3137085 Brumberg 12374173 12374173 LED recessed light LED (monochrome) Bulb cannot be changed 3 W White
Description
LED panel-mounted emitter, structure-white, square. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Design: Plug & Play, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / glass, protection class: Room side: According to DIN EN 60529: IP20, protection class: (EN 61140) III, power: 3W, number of bulbs / sockets: 38 pcs, light current: 290 lm, color temperature: 2,700 K, radiation angle: 1.0°, adjustable: Rotatable, With operating device: No, Dimmable: Depending on the operating device, type of dimming: Depends on the operating device.
