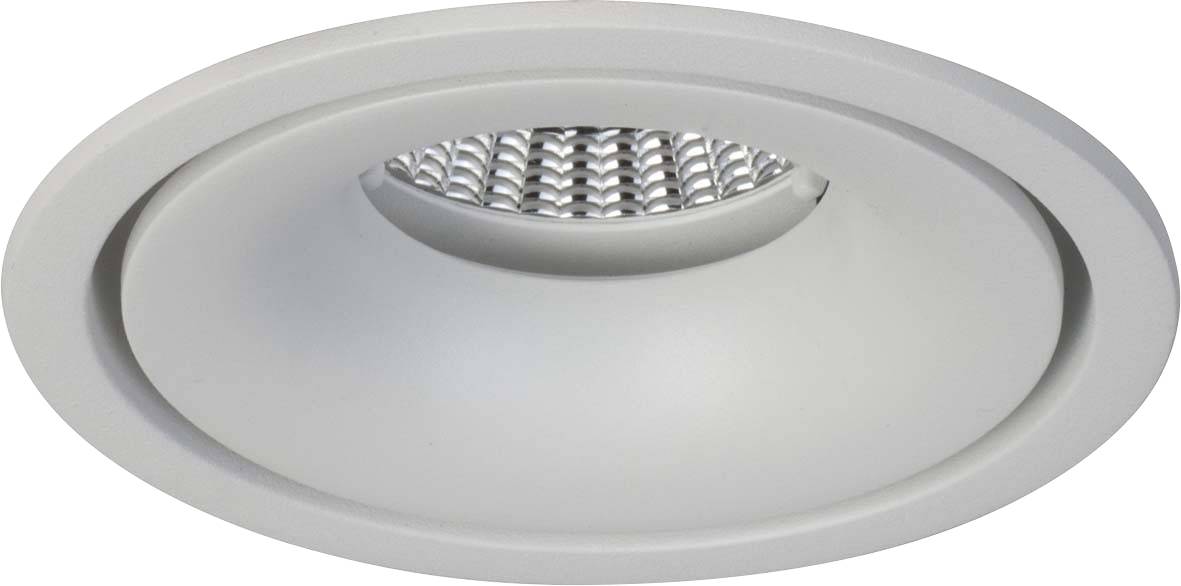

Brumberg 12407073 12407073 LED recessed light LED (monochrome) 14 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brumberg Luminaires LED-Downlight 13.6W 3000K ws 700mA 12407073
- Power= 14 W Total luminous flux= 950 lm White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 950 lm
- Operating device: LED operating device current-controlled
- With bulb: Yes
- Colour temperature: 3000 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- LED current rating at constant current 700 mA
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: High gloss
- Voltage type: DC
- Product type
LED recessed light
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
14 W
14 W
- Total luminous flux
950 lm
- Colour
White
- Radiation angle
40°
- Recess diameter
92 mm
- Recess depth
90 mm
- Outside Ø
102 mm
IP20
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
- Light bulb included
Yes
Documents & Downloads
Datasheet
Datasheet 2293798 Brumberg 12407073 12407073 LED recessed light LED (monochrome) 14 W White
User & Safety Instructions
User & Safety Instructions 2293798 Brumberg 12407073 12407073 LED recessed light LED (monochrome) 14 W White
Description
LED recessed down light CIRCLE, with circumferential light joint, white, round. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: Plug&Play, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminum, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) III, current: 700 mA, power: 13.6W, number of bulbs / sockets: 1.0 pcs, luminous flux: 950lm, color temperature: 3000K, light color: White, angle of radiation: 38°, adjustability: Not adjustable, without operating device, light
