Brumberg 12494173 12494173 LED recessed light LED (monochrome) 8 W White
EAN:
Part number:
Item no:
Highlights & Details

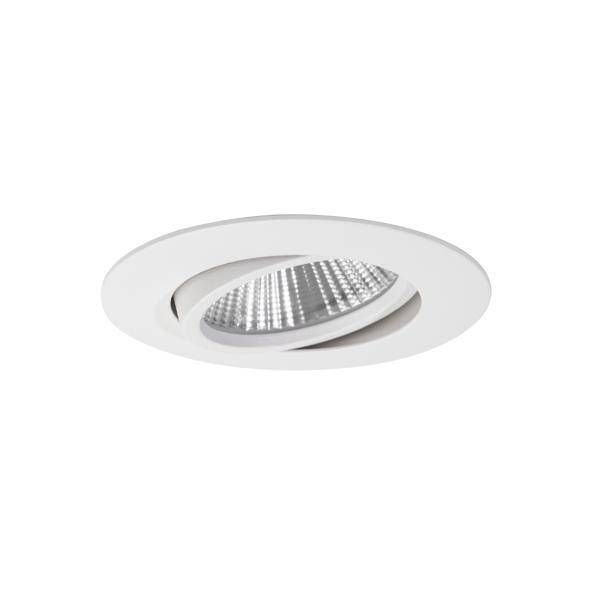

Brumberg LED INSTALL.spotlights 350 mA 3000K, round, ws 12494173
- Power= 8 W Total luminous flux= 730 lm Colour temperature= 3000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for panel mounting: Yes
- Suitable for mounting on a panel: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for pedestal-/floor mounting: No.
- Suitable for clamp mounting: No.
- Suitable for cable system: No.
- Adjustable: Pivoting
- With motion detector: No.
- With light sensor: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Aluminium
- Surface protection: Other
- Housing color: White
- Surface brushed: No.
- Voltage type DC
- Rated LED current at constant current 350 mA
- Operating device: LED operating device current-controlled
- With operating device: No.
- Removable operating device: Yes
- Dimming depends on the operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: High-gloss
- Light distribution: Symmetric
- Radiation angle: Medium radiation 21-40°
- Light emission: Direct
- Constant luminous flux regulation: No.
- Protection class (IP) IP65
- Protection class III
- Suitable for lamp output 7.5 W
- Max. System power 7.5 W
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89
- Luminous flux: 730 lm
- Rated light current according to IEC 62722-2-1: 730 lm
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.

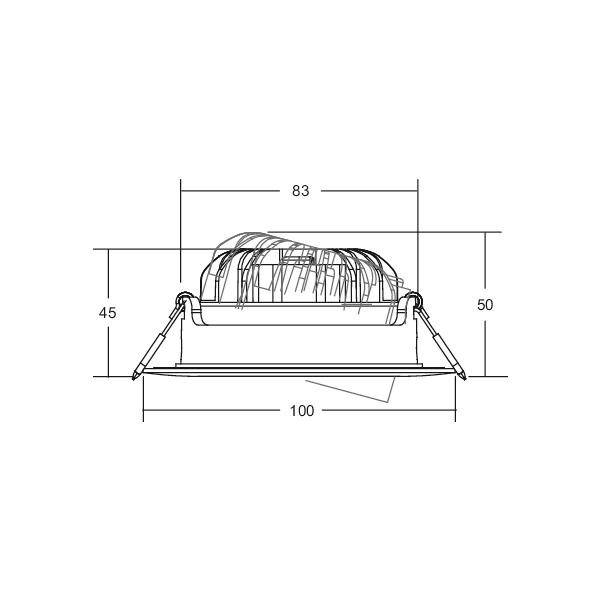

- Height/depth 2.5 mm
- Outer diameter: 100 mm
- Installation height/depth 50 mm
- Installation diameter 83 mm
- Lamp with limited surface temperature ""D-sign"": No.
- Integrated emergency power supply: No.
- Light output 97.33 lm/W
- Workplace training material - EN 12464-1: Yes
- Covering of the lamp with thermal insulation material is possible: No.
- IFTTT support available: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Product type
LED recessed light
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
8 W
8 W
730 lm
- Total luminous flux
730 lm
3000 K
- Colour
White
- Type
Circular
- Radiation angle
43°
- Light features
Dimmable
Swivelling
- Recess diameter
83 mm
- Recess depth
50 mm
- Outside Ø
100 mm
IP65
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
- Dim
(Ø x H) 100 mm x 2.50 mm
Yes
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Height
2.50 mm
- Depth
2.5 mm
- (Ø)
100 mm
- Rated luminous flux
730 lm
- Colour rendering index
80-89
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3139136 Brumberg 12494173 12494173 LED recessed light LED (monochrome) 8 W White
Description
LED Recessed Spotlight, IP65, structured white, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Design: Plug & Play, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / silicon rubber / PMMA, protection class: Room side: According to DIN EN 60529: IP65, protection class: (EN 61140) III, power: 3,000 W, number of light bulbs / sockets: 43 piece, light current: 730 lm, color temperature: 7.5 K, radiation angle: 1°, adjustable: Swivel, With operating device: No, Dimmable: Depending on the operating device, type of dimming: Depends on the operating device.
