Brumberg 12640073 12640073 LED recessed light LED (monochrome) w/o 9 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

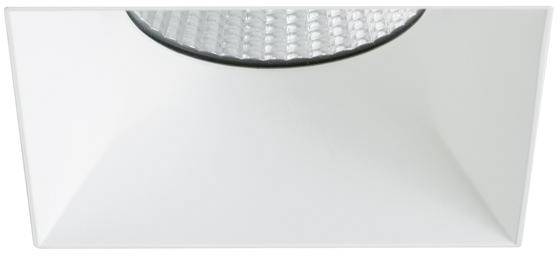

Brumberg lamps LED recessed lamp 3000K white 12640073
- Power= 9 W Total luminous flux= 950 lm White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 950 lm
- Operating device: LED operating device current-controlled
- Dimming depends on the operating device: Yes
- With bulb: Yes
- Colour temperature: 3000 K
- Color rendering index CRI: 90-100
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- LED nominal current at constant current 500 mA
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: High gloss
- Voltage type: DC
- Product type
LED recessed light
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
9 W
9 W
950 lm
- Total luminous flux
950 lm
- Colour
White
- Type
Square
- Radiation angle
40°
- Light features
Dimmable
- Recess depth
79 mm
IP44
- Protection class
III
- Factory colour
White
- Material
Aluminium
n.rel.
- Dim
(L x W) 68 mm x 68 mm
Yes
- Light bulb included
Yes
- Width
68 mm
- Length
68 mm
Documents & Downloads
Datasheet
Datasheet 2294396 Brumberg 12640073 12640073 LED recessed light LED (monochrome) w/o 9 W White
User & Safety Instructions
User & Safety Instructions 2294396 Brumberg 12640073 12640073 LED recessed light LED (monochrome) w/o 9 W White
Description
LED system downlight COUPLED, IP44, square, white. Designed in a compact design for quick mounting without tools for ceiling installation. Mounting only plus surface or mounting frame 82040170, 82041170, 82042170 or 82043170 possible, socket: Without, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminum / plastic, protection class: According to DIN EN 60529: IP44*, protection class: (EN 61140) III, current: 500 mA, power: 8.9W, number of holders: 1.0 Stk, color temperature: 950lm 3000K White, angle of radiation: 34°, adjustability: Not adjustable, without operating device, type of dimming: Other,
