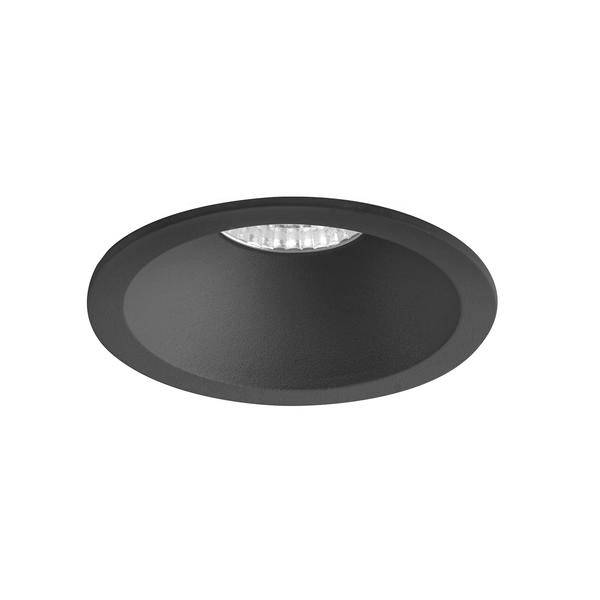

Brumberg 12650183 LED recessed light LED (monochrome) w/o Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Total luminous flux= 530 lm Colour temperature= 3000 K White
Technical specifications
- Product type
LED recessed light
- Operating voltage
230 V AC
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
6 W
- Total luminous flux
530 lm
3000 K
- Colour
White
- Radiation angle
40°
- Light features
Recess mount option
Ceiling mount option
Incl. ballast
Dimmable
Direct light emission
- Recess diameter
68 mm
- Recess depth
46 mm
- Outside Ø
80 mm
- Protection class
II
- Factory colour
Black
- Material
Aluminium
n.rel.
Yes
- Light bulb included
Yes
- Colour temperature range
3000 K
- Height
2 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3830652 Brumberg 12650183 LED recessed light LED (monochrome) w/o Black
Datasheet 3830652 Brumberg 12650183 LED recessed light LED (monochrome) w/o Black
User & Safety Instructions
User & Safety Instructions 3830652 Brumberg 12650183 LED recessed light LED (monochrome) w/o Black
Description
LED recessed downlight, integrated converter (DOB), phase section dimmable, with junction box, black structure, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Design: LED, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium/polycarbonate, enclosure rating: Room side (DIN EN 60529) IP20, protection class: (DIN EN 61140) II, rating max.: 6 W, number of bulbs / sockets: 1 piece, light current: 530 lm, color temperature: 3,000 K, light color: White, angle of radiation: 38°, Adjustable: not adjustable, with operating device: yes, dimmable: yes, type of dimming: phase section.
