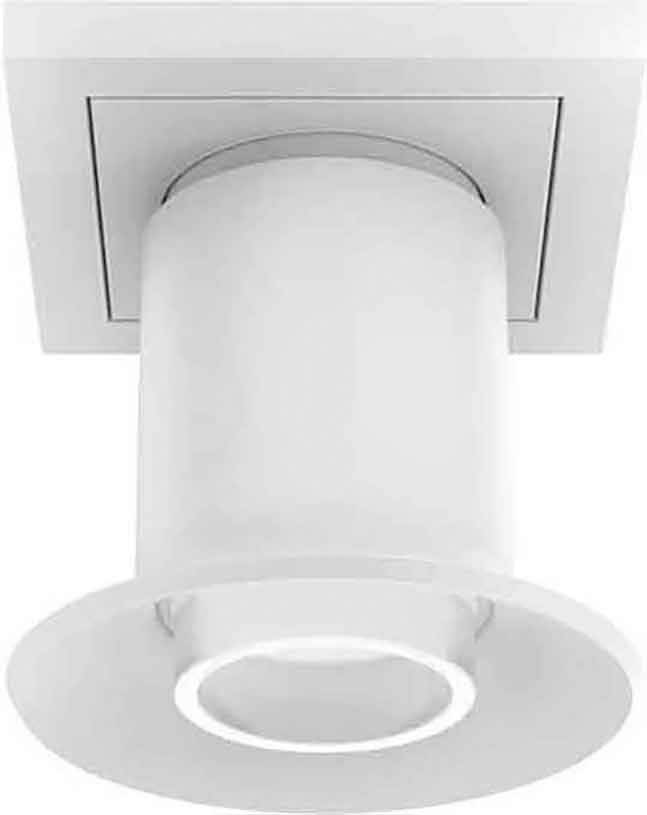

Brumberg 12701173 LED ceiling light LED (monochrome) 8 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Operating device: Electronic transformer
- Screen workstation suitable according to EN 12464-1: Yes
- Color rendering index CRI: 80-89
- Suitable for installation: Yes
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: no.
- Suitable for light band configuration: no.
- Suitable for emergency light: no.
- Suitable for suspended engine mounting: no.
- Suitable for wall mounting: no.
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With motion detector: no.
- With bulb: Yes
- With light sensor: no.
- Product type
LED ceiling light
- Height
80 mm
- Operating voltage
12 V DC
- No. of bulbs
1
- Bulb type
LED (monochrome)
8 W
3000 K
- Colour
White
- Total luminous flux
600 lm
- Radiation angle
40°
- Protection class
III
- Factory colour
White
- Dim
(L x W x H) 45 x 45 x 80 mm
- Material
Aluminium
n.rel.
- Light bulb included
Yes
- Width
45 mm
- Length
45 mm
IP20
Documents & Downloads
Datasheet
Datasheet 2298157 Brumberg 12701173 LED ceiling light LED (monochrome) 8 W White
User & Safety Instructions
User & Safety Instructions 2298157 Brumberg 12701173 LED ceiling light LED (monochrome) 8 W White
Description
Plug & Light LED ceiling mounted lamp MINIQ, white. Compact design for harmonious implementation in harmonious, architectural room concepts. Attention: Only to be used in combination with the plug & light system of the companies GIRA and JUNG. Dimming function can be called up via corresponding components from the house GIRA or YOUNG. Mounting type: Mounting, mounting location: Ceiling mounting, material: Aluminum / glass, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) III, voltage: 12V, power: 8W, number of bulbs / sockets: 1.0 pcs, luminous flux: 400lm, angle of radiation: 35°,
