Name: Brumberg 13560184 13560184 LED ceiling light LED (monochrome) Built-in LED 40 W Black
Brand: Brumberg
SKU: 3139264

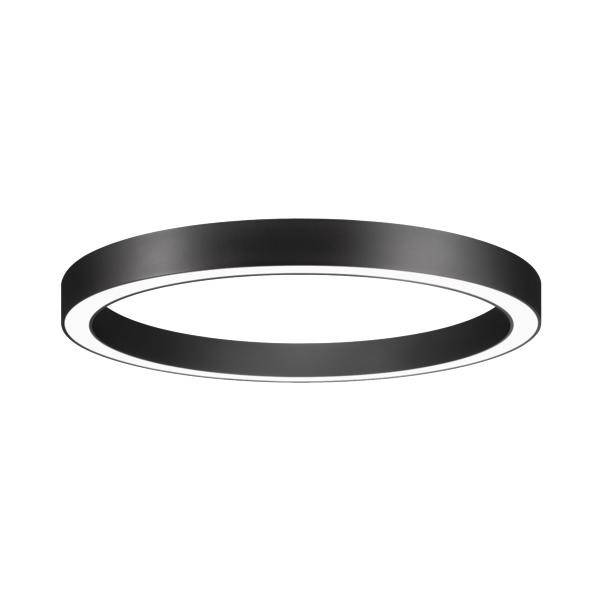

Round, black ceiling light ring with white light strip inside, isolated on white background. Minimalist design.

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Brumberg LED mounting ring light D600mm, H100mm 13560184

Power= 40 W
Total luminous flux= 4241 lm
Colour temperature= 4000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: No.
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: Yes
Suitable for panel mounting: No.
Suitable for mounting on the panel: Yes
Suitable for light band configuration: No.
Suitable for the number of bulbs: 1
Material of housing: Aluminium
Black enclosure
Cover material: Plastic opal
Design of grid: Without
Voltage type AC
Rated voltage: 240 V
With operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Dimming depends on the operating device: No.
Without dimming function: Yes
Light distribution: Symmetric
Light emission: Direct
Rated life L70/B50 at 25 °C: 276000 h
Protection class (IP) IP20
Protection class: I
Lamp with limited surface temperature "D-sign": No.
Suitable for emergency light: No.
Integrated emergency power supply: No.
With motion detector: No.
With light sensor: No.
With air vents: No.
Suitable for lamp output 40 W
Max. System power 40 W
Light output 106.02 lm/W
Rated light current according to IEC 62722-2-1: 4241 lm
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 80-89
Constant luminous flux regulation: No.
Height/depth 100 mm
Outer diameter: 600 mm
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Bulb: LED not replaceable
With bulb: Yes

Dim: (Ø x H) 600 mm x 100.00 mm

Type: Circular

Operating voltage: 240 V

No. of bulbs: 1

Product type: LED ceiling light

Bulb type: LED (monochrome)

Height: 100.00 mm

: Built-in LED

Rating per bulb: 40 W

Depth: 100 mm

: 40 W

(Ø): 600 mm

Protection class: I

: IP20

Factory colour: Black

Material: Aluminium

: n.rel.

Colour rendering index: 80-89

Colour: White

Light bulb included: Yes

: 4000 K

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Total luminous flux: 4241 lm

: 4241 lm

Rated luminous flux: 4241 lm

Nominal voltage: 240 V

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3139264 Brumberg 13560184 13560184 LED ceiling light LED (monochrome) Built-in LED 40 W Black

Description

LED-mounting-ring light, direct, switchable, structural black, round. Design in a compact design for the harmonious implementation in an architectural space concept. Mounting type: Mounting, mounting location: Ceiling mounting, material: Aluminium / steel / plastic, enclosure rating: On the room side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 40W, number of lights / sockets: 110 piece, light current: 4,241 lm, color temperature: 4,000 K, light color: White, angle of radiation: 1.0°, With operating device: yes, type of dimming: switchable.

This text is machine translated.
