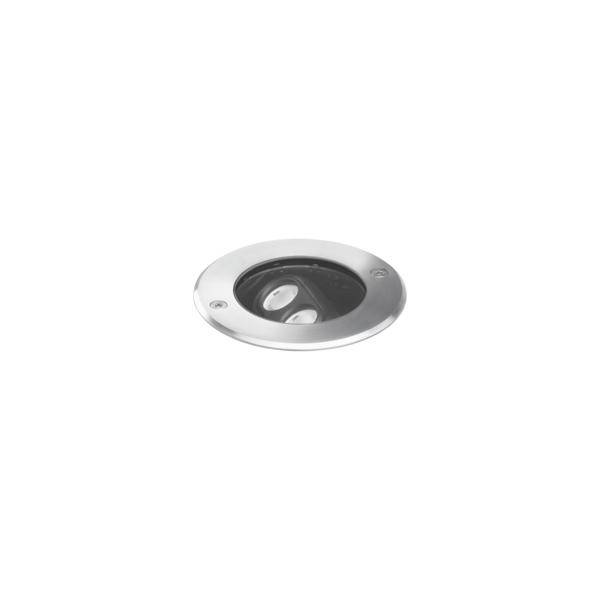

Brumberg 14665223 LED floor recessed light w/o LED (monochrome) 4 W Stainless steel
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 4 W
- Total luminous flux= 460 lm
- Colour temperature= 3000 K
- White
Technical specifications
- Product type
LED floor recessed light
- Operating voltage
230 V AC
- Outside Ø
100 mm
- No. of bulbs
1
- Bulb type
LED (monochrome)
w/o
- Rating per bulb
4 W
4 W
3000 K
- Colour
White
- Total luminous flux
460 lm
- Recess diameter
92 mm
- Recess length
161 mm
- Recess width
170 mm
- Recess depth
128 mm
- Protection screen
Clear
- Max. capacity
1000 kg
- Light features
Incl. ballast
adjustable
- Protection class
I
IP67
IK08
- Factory colour
Stainless steel
- Material
Non-corrosive steel
Glass
n.rel.
- Radiation angle
40°
- Light bulb included
Yes
- Colour temperature range
3000 K
- Height
3 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3830666 Brumberg 14665223 LED floor recessed light w/o LED (monochrome) 4 W Stainless steel
Datasheet 3830666 Brumberg 14665223 LED floor recessed light w/o LED (monochrome) 4 W Stainless steel
User & Safety Instructions
User & Safety Instructions 3830666 Brumberg 14665223 LED floor recessed light w/o LED (monochrome) 4 W Stainless steel
Description
LED ceiling and ground light fixture, V4A, IP67, switchable, seawater resistant, stainless steel mat, round. Mounting, floor mounting Design: Without socket, mounting type: Mounting installation, mounting location: Floor mounting, material: Stainless steel / aluminum / glass, enclosure rating: Room side: (DIN EN 60529) IP67, protection class: (DIN EN 61140) I, voltage: 230V AC 50Hz, power: 3,000 W, number of lights / sockets: 30 piece, light current: 460 lm, color temperature: 4 K, light color: White, angle of radiation: 1°, Adjustability: swiveling, With operating device: yes, dimming: no, type of dimming: switchable.
This text is machine translated.
