Brumberg 15292027 15292027 LED strip set EEC: F (A - G) 24 V 5000 mm White 1 pc(s)
Product type
LED strip set
LED strip features
Self-adhesive
Colour
White
Colour temperature (max.)
2700 K
Power
9.6 W/m
EAN:
Part number:
Item no:
Technical specifications
- Product type
LED strip set
- LED strip features
Self-adhesive
- Type
Band
- Colour
White
- Min. colour temperature
2700 K
- Colour temperature type
2700 K
- Colour temperature (max.)
2700 K
9.6 W/m
- Radiation angle
120°
- Luminous flux (Φ) per unit
940 lm
- Operating voltage
24 V
- Dim
(L x W x H) 5000 x 8 x 1.5 mm
- Power consumption
48 W
- Power consumption per unit
9.6 W
- LED number per unit
140
- Width
8 mm
- Height
1.5 mm
- Length
5000 mm
- Unit length
50 mm
IP00
F (A - G)
No
- Colour rendering index
80-89
- Weight
0.277 kg
- Protection class
II
Built-in LED
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2747390 Brumberg 15292027 15292027 LED strip set EEC: F (A - G) 24 V 5000 mm White 1 pc(s)
Description

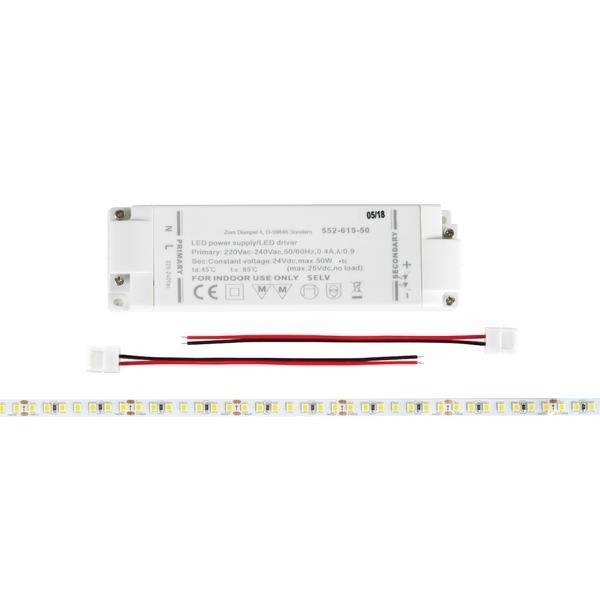

LED Flexboard Set, 9.6 W/m, 5 m, IP00 , LED White Light, CRI larger than 80 LED flex board length: 5000.0 mm lamp power per meter: 9.6 W/m, light current per meter: 940.0 lm/m, protection class: IP00, protection class: II, voltage: 24V DC, angle of radiation: 120.0°, 140 LEDs per meter, chip distance (short pitch): 8.3mm. The LED flex board can be shortened every 50 mm for individual application. The maximum system length of 5,000 mm must not be exceeded with an infeed.
