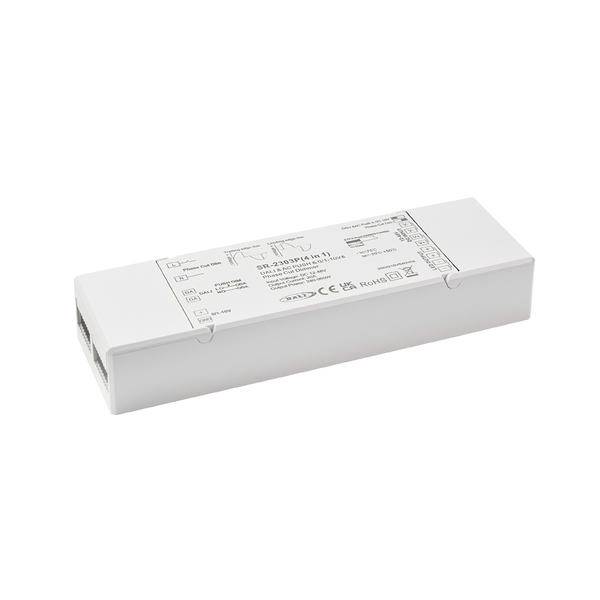

Brumberg 17517000 LED dimmer 170 mm 53.4 mm 28 mm
Product type
LED dimmer
Min. operating voltage
12 V
Max. operating voltage
48 V
Type
17517000
Channels
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
17517000
- Product type
LED dimmer
- Min. operating voltage
12 V
- Max. operating voltage
48 V
- Channels
2
- Dim

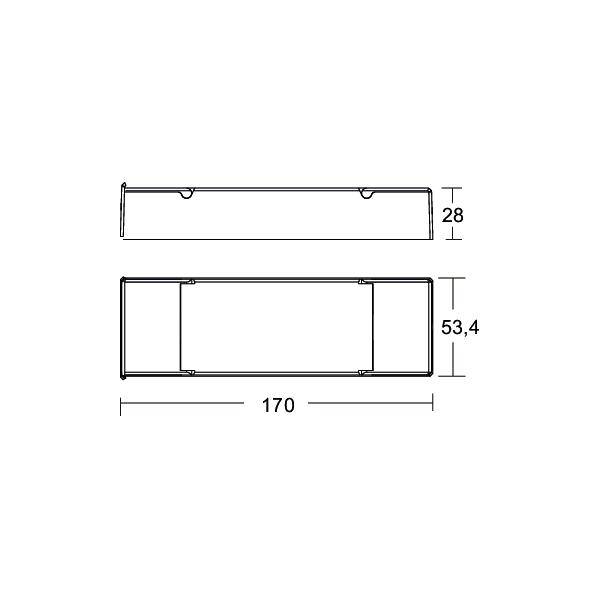

(L x W x H) 170 x 53.4 x 28 mm
- Width
53.4 mm
- Height
28 mm
- Length
170 mm
- Type
dynamic, programmable
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3830696 Brumberg 17517000 LED dimmer 170 mm 53.4 mm 28 mm
User & Safety Instructions
User & Safety Instructions 3830696 Brumberg 17517000 LED dimmer 170 mm 53.4 mm 28 mm
Description
LED-dimmer 12-48 V DC, DALI-2, Push, 1-10 V or phase section dimmable, white, rectangular. Design in a compact design for the harmonious implementation in an architectural space concept. Mounting type: On-board mounting, material: Plastic, protection class on room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 12 - 48 V DC, power: 480 W, dimmable: Yes, type of dimming: DALI-2.
