Brumberg 20043170 20043170 Flush mount light
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Protection type (IP) IP44
- Surface protection: Powder-coated
- Protection class III
- Material of housing: Aluminium
- Voltage type DC
- LED bulb, replaceable
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 6 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: Yes
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- With bulb: No.
- Suitable for the number of bulbs: 1
- Housing color: White
- Surface brushed: No.
- With operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Light distribution: Symmetric
- Light emission: Direct
- Suitable for lamp output 13 W
- Max. System power 13 W

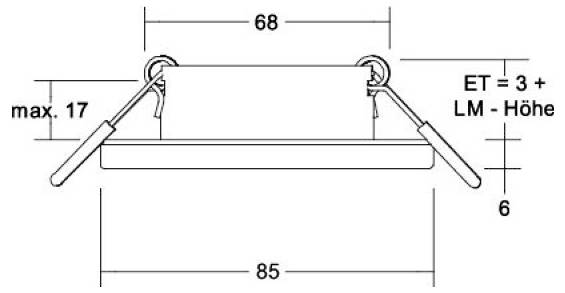

- Installation diameter 68 mm
- Covering of the lamp with thermal insulation material is possible: No.
- Operation via Bluetooth: No.
- Outer diameter: 85 mm
- Cover material: Glass matt/satin
- Suitable for rail mounting: No.
- Socket: Without
- Product type
Flush mount light
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3544106 Brumberg 20043170 20043170 Flush mount light
User & Safety Instructions
User & Safety Instructions 3544106 Brumberg 20043170 20043170 Flush mount light

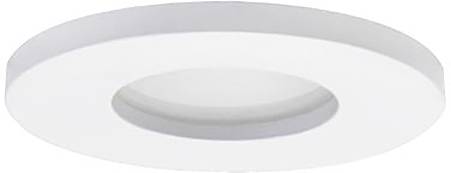

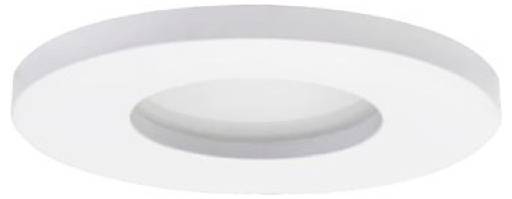

Description
Installation downlight, IP44, without LED module, satin glass cover, structure white, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. All Brumberg MR16 LED modules can be used for the panel unit PROTECT. The installation depth of the light depends on the LED module used (here: 3 mm, plus Height of the LED module). The LED module is not included in the scope of delivery of the mounting unit. Design: Without socket, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / glass, protection class: In accordance with DIN EN 60529: IP44, protection class: (EN 61140) III, power: 13 W, number of lights / sockets: 1 pieces, adjustment: Not adjustable, without operating device, type of dimming: Dependent on the operating device.
