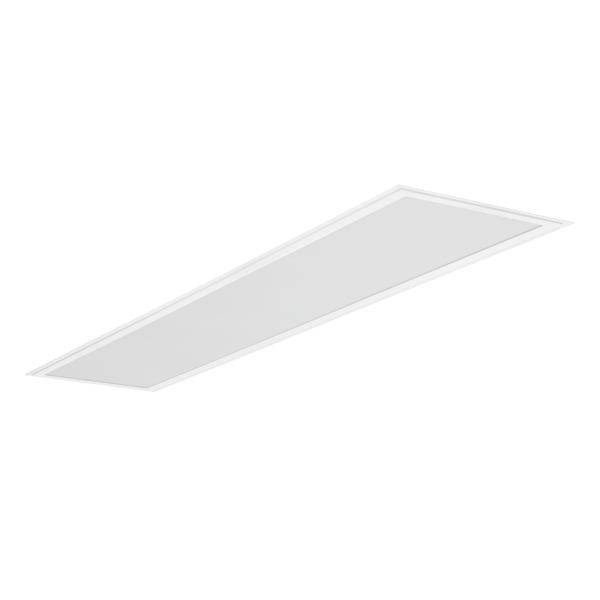

Brumberg 32073073 LED panel 45 W White White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 45 W
- Total luminous flux= 5600 lm
- Colour temperature= 3000 K
- White
Technical specifications
- Product type
LED panel
- Type
Rectangular
- Operating voltage
220 V DC/AC
240 V DC/AC
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
45 W
45 W
3000 K
- Colour
White
- Total luminous flux
5600 lm
- Light features
Ceiling mount option
Incl. ballast
Dimmable
Direct light emission
Selectable luminous flux
- Radiation angle
80°
- Protection class
II
IP20 (Front)
IK04
- Factory colour
White
- Material
Aluminium
- Width
308 mm
- Height
11 mm
- Length
1545 mm
n.rel.
- Type
Mounted, powder-coated
Yes
- Light bulb included
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3830757 Brumberg 32073073 LED panel 45 W White White
Datasheet 3830757 Brumberg 32073073 LED panel 45 W White White
User & Safety Instructions
User & Safety Instructions 3830757 Brumberg 32073073 LED panel 45 W White White
Description
LED insertion panel 1,545 x 308 mm, opal cover, DALI dimmable, white matt, rectangular. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Design: Without socket, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / PMMA, protection class of room: (DIN EN 60529) IP20, protection class: (DIN EN 61140) II, voltage: 230V AC 50Hz, power: 3,000 W, number of bulbs/sockets: 120 piece, light current: 5,600 lm, color temperature: 45 K, white, angle of radiation: 1°, Adjustable: not adjustable, with operating device: yes, dimmable: yes, type of dimming: DALI-2.
