Brumberg 38370153 38370153 LED recessed light LED (monochrome) w/o 3 W Nickel
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Luminaires LED-BLD-IN RADIATOR 230V 3000K nickel 38370153
- Power= 3 W Total luminous flux= 260 lm Colour temperature= 3000 K White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 260 lm
- Operating device: LED operating device current-controlled
- Colour temperature: 3000 K
- Color rendering index CRI: 80-89
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: High gloss
- Voltage type: AC
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
3 W
3 W
260 lm
- Total luminous flux
260 lm
3000 K
- Colour
White
- Radiation angle
80°
- Light features
Incl. switch
- Recess diameter
56 mm
- Recess depth
14 mm
- Outside Ø
72 mm
IP20
- Protection class
II
- Factory colour
Nickel
- Material
Steel
n.rel.
No
- Light bulb included
Yes
- Colour temperature range
3000 K
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2292187 Brumberg 38370153 38370153 LED recessed light LED (monochrome) w/o 3 W Nickel
User & Safety Instructions
User & Safety Instructions 2292187 Brumberg 38370153 38370153 LED recessed light LED (monochrome) w/o 3 W Nickel
Description

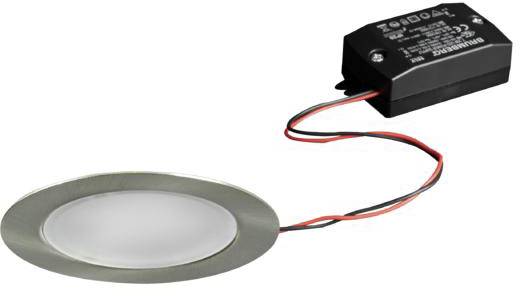

LED recessed light set BB17, switchable, nickel. Designed in a compact design for quick mounting without tools for ceiling installation. Set incl. converter for 230 V mains voltage, switchable, dimensions of converter: L 68 x W 35 x H 21 mm. Socket: None, Mounting type: Installation, Mounting location: Ceiling mounting, Material: Steel / plastic, Protection type: According to DIN EN 60529: IP20, Protection class: (EN 61140) II, Voltage: 230V AC 50Hz, Power: 3W, Number of bulbs / sockets: 1.0 pcs, Light current: 260lm, Color temperature: 3000K, Light color: White, Radiation angle: 60°, Adjustable: Not adjustable, with operating device, Type of dimming:
This text is machine translated.
This text is machine translated.
