Brumberg 38478183 LED recessed light LED (monochrome) 7 W Black

Black recessed LED downlight with trim ring, attached driver, and clip-on connector on a white background

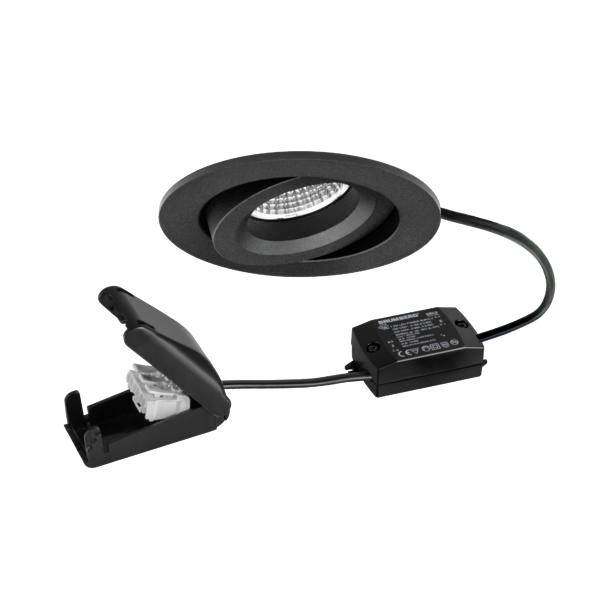

Black recessed LED downlight with separate power driver and connector cable, shown on a white background.<br>
Diagram of illumination coverage showing beam diameter Ø (m) and illuminance E0(0°) [lx] at distances 1.0 m to 5.0 m; diameter increases from 0.7 to 3.5 m while illuminance drops from 1246.1 to 49.8 lx.
Polar light distribution chart with a narrow vertical beam centered at 0°, showing intensity rings labeled 460, 920, 1380, and 1840 cd/klm.<br>
Dimensioned technical drawing of a round recessed light fitting with side springs, showing widths 68 and 82, height 38, max 15, and 3 mm clearance.
1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 7 W Total luminous flux= 680 lm Colour temperature= 3000 K White

Technical specifications

Product type

LED recessed light

Operating voltage

230 V AC

No. of bulbs

1

Bulb type

LED (monochrome)

Rating per bulb

7 W

7 W

Total luminous flux

680 lm

3000 K

Colour

White

Radiation angle

40°

Light features

Recess mount option

Ceiling mount option

Swivelling

Incl. ballast

Direct light emission

Recess diameter

68 mm

Recess depth

38 mm

Outside Ø

82 mm

Protection class

II

Factory colour

Black

Material

Aluminium

n.rel.

No

Light bulb included

Yes

Colour temperature range

3000 K

Height

3 mm

Type

powder-coated

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3830794 Brumberg 38478183 LED recessed light LED (monochrome) 7 W Black

Datasheet 3830794 Brumberg 38478183 LED recessed light LED (monochrome) 7 W Black

User & Safety Instructions

User & Safety Instructions 3830794 Brumberg 38478183 LED recessed light LED (monochrome) 7 W Black

Description

LED installation emitter set, switchable, with junction box, black structure, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / polycarbonate, enclosure rating: On the room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 7 3,000 W, number of lights / sockets: 40 piece, light current: 680 lm, color temperature: White, radiation angle: 1°, Adjustability: swiveling, With operating device: yes, dimming: no, type of dimming: switchable.

This text is machine translated.

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
