Brumberg 39336183 39336183 LED recessed light
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Protection class (IP) IP20
- Surface protection: Powder-coated
- Protection class: II
- Material of housing: Aluminium
- Nominal voltage: 230 V
- Voltage type AC
- Bulb: LED not replaceable
- Radiation angle: Medium radiation 21-40°
- Operating device: LED operating device current-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 10 mm
- Type of wiring: Suitable for through-wiring
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: Yes
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- Suitable for the number of bulbs: 1
- Black enclosure
- Surface brushed: No.
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming of phase section: Yes
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Matt

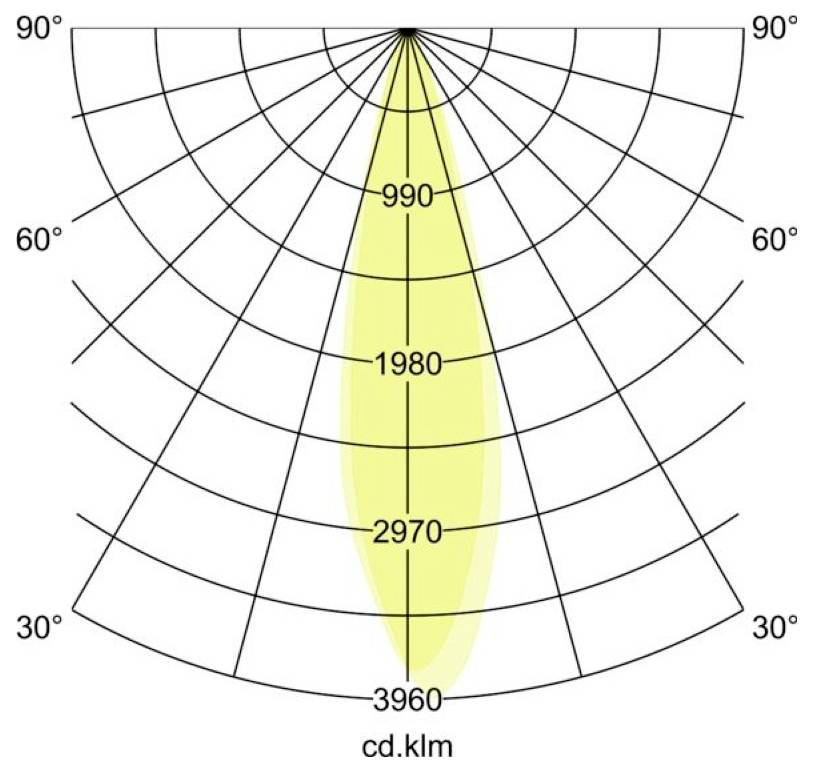

- Light distribution: Symmetric
- Light emission: Direct
- Suitable for lamp output 10 W
- Max. System power 10 W
- Luminous flux: 790 lm
- Rated light current according to IEC 62722-2-1: 790 lm

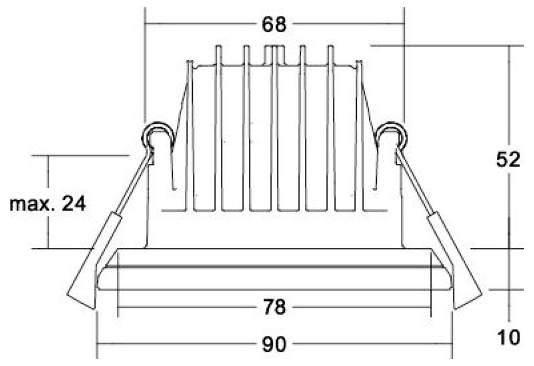

- Installation height/depth 52 mm
- Installation diameter 68 mm
- Covering of the lamp with thermal insulation material is possible: No.
- Operation via Bluetooth: No.
- Outer diameter: 90 mm
- Workplace training material - EN 12464-1: Yes
- Cover material: Textured plastic
- Suitable for rail mounting: No.
- Rated life L70/B50 at 25 °C: 50000 h
- Product type

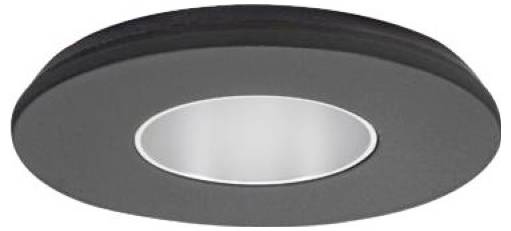

LED recessed light
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3544114 Brumberg 39336183 39336183 LED recessed light
User & Safety Instructions
User & Safety Instructions 3544114 Brumberg 39336183 39336183 LED recessed light
Description

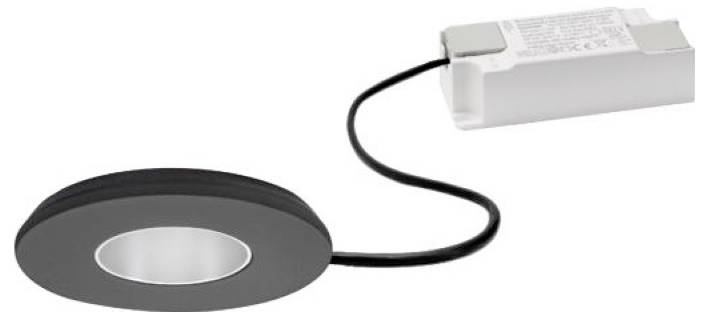

LED-Mounting downlight, direct, phase section dimmable, UGR < 16, structure black, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Set incl. converter for 230 V-mains voltage, phase section dimmable, Dimensions of the converter: L 92 x B 36 x H 26 mm Mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / plastic, protection class on room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 10 W, number of lights / sockets: 1 pieces, luminous flux: 790 lm, color temperature: 3,000 K, angle of radiation: 24°, adjustable: not adjustable, With operating device: yes, dimmable: yes, type of dimming: phase section.
