Brumberg 39476073 39476073 LED recessed light LED (monochrome) Built-in LED 6 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

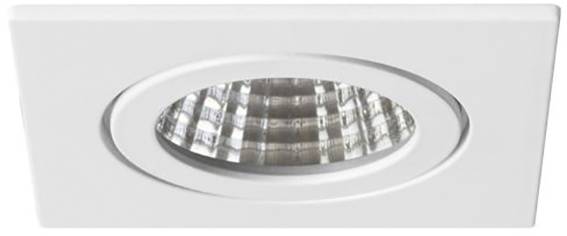

Brumberg Lights LED Downlight 230V 3000K Square 39476073
- Power= 6 W Total luminous flux= 640 lm Colour temperature= 3000 K White
Technical specifications
- Operating device: LED operating device current-controlled
- Dimming Phase section: Yes
- With bulb: Yes
- Colour temperature: 3000 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: High gloss
- Voltage type: AC
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
6 W
6 W
640 lm
- Total luminous flux
640 lm
3000 K
- Colour
White
- Radiation angle
40°
- Light features
Dimmable
- Recess diameter
68 mm
- Recess width
45 mm
- Recess depth
36 mm
- Protection class
II
- Factory colour
White
- Material
Stainless steel
n.rel.
- Dim
(L x W) 82 mm x 82 mm
Yes
- Light bulb included
Yes
- Colour temperature range
3000 K
- Width
82 mm
- Length
82 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2291948 Brumberg 39476073 39476073 LED recessed light LED (monochrome) Built-in LED 6 W White
User & Safety Instructions
User & Safety Instructions 2291948 Brumberg 39476073 39476073 LED recessed light LED (monochrome) Built-in LED 6 W White
Description
LED installation spotlight set BB16, dimmable, with phase section converter and junction box, white. Designed in a compact design for quick mounting without tools for ceiling installation. Set incl. converter for 230 V mains voltage, phase section, dimensions of converter: L 110 x W 50 x H 19 mm. Mounting type: Installation, mounting location: Ceiling mounting, material: Stainless steel / aluminum / glass, protection class: According to DIN EN 60529: IP54*, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 6W, number of bulbs / sockets: 1.0 pcs, luminous flux: 640lm, color temperature: 3000K, light color: White, angle of radiation: 38°, adjustability: Not adjustable, with operating device, type of dimming: Phase section
