Brumberg 39485073 39485073 LED recessed light LED (monochrome) Bulb cannot be changed 6 W White
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Luminaires LED-BLD-IN RADIATOR 230V 39485073
- Power= 6 W Total luminous flux= 460 lm Colour temperature= 3000 K White
Technical specifications
- Beam angle: Medium radiation 21-40°
- Operating device: LED operating device current-controlled
- Dimming depends on the operating device: no.
- Dimming Phase section: Yes
- Suitable for panel mounting: Yes
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: High gloss
- Product type
LED recessed light
- Operating voltage
230 V AC
- No. of bulbs
1
Bulb cannot be changed
- Bulb type
LED (monochrome)
- Rating per bulb
6 W
6 W
460 lm
- Total luminous flux
460 lm
3000 K
- Colour
White
- Type
Square
- Radiation angle
40°
- Light features
Swivelling
Dimmable
Ceiling mount option
- Recess diameter
68 mm
- Recess depth
50 mm
IP20
- Protection class
II
- Factory colour
White
- Material
Aluminium
n.rel.
- Dim
(L x W) 82 mm x 82 mm
Yes
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
1800 K
- Colour temperature range
1800 - 3000 K
- Width
82 mm
- Length
82 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2337625 Brumberg 39485073 39485073 LED recessed light LED (monochrome) Bulb cannot be changed 6 W White
Description

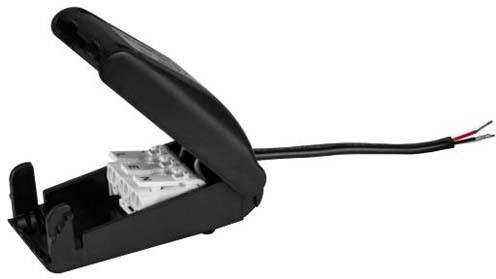

LED installation spotlight set BB18, dim2warm, dimmable, with converter and junction box, white, square. Designed in a compact design for quick mounting without tools for ceiling installation. When the light is dimmed, the color temperature decreases. Set incl. converter for 230 V mains voltage, phase section, dimensions of converter: L 110 x W 50 x H 19 mm. For use IN THE areas OF HOME/LIVING, OFFICE/COMMUNICATION, HOTEL INDUSTRY/GASTRONOMY Mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminum / glass / plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, output: 6W, number of bulbs / sockets: 1.0 pcs, luminous flux: 460lm, color temperature: 3000 to 1800K, angle of radiation: 38°, adjustable: Swiveling, with operating device, type of dimming: Phase section.
